Mercury MERCRUISER - Page 149

Instrumentation and Controls
Page 9A-16 90-863758060 AUGUST 2006
e
e
b
b
a
c
d
g
f
7674

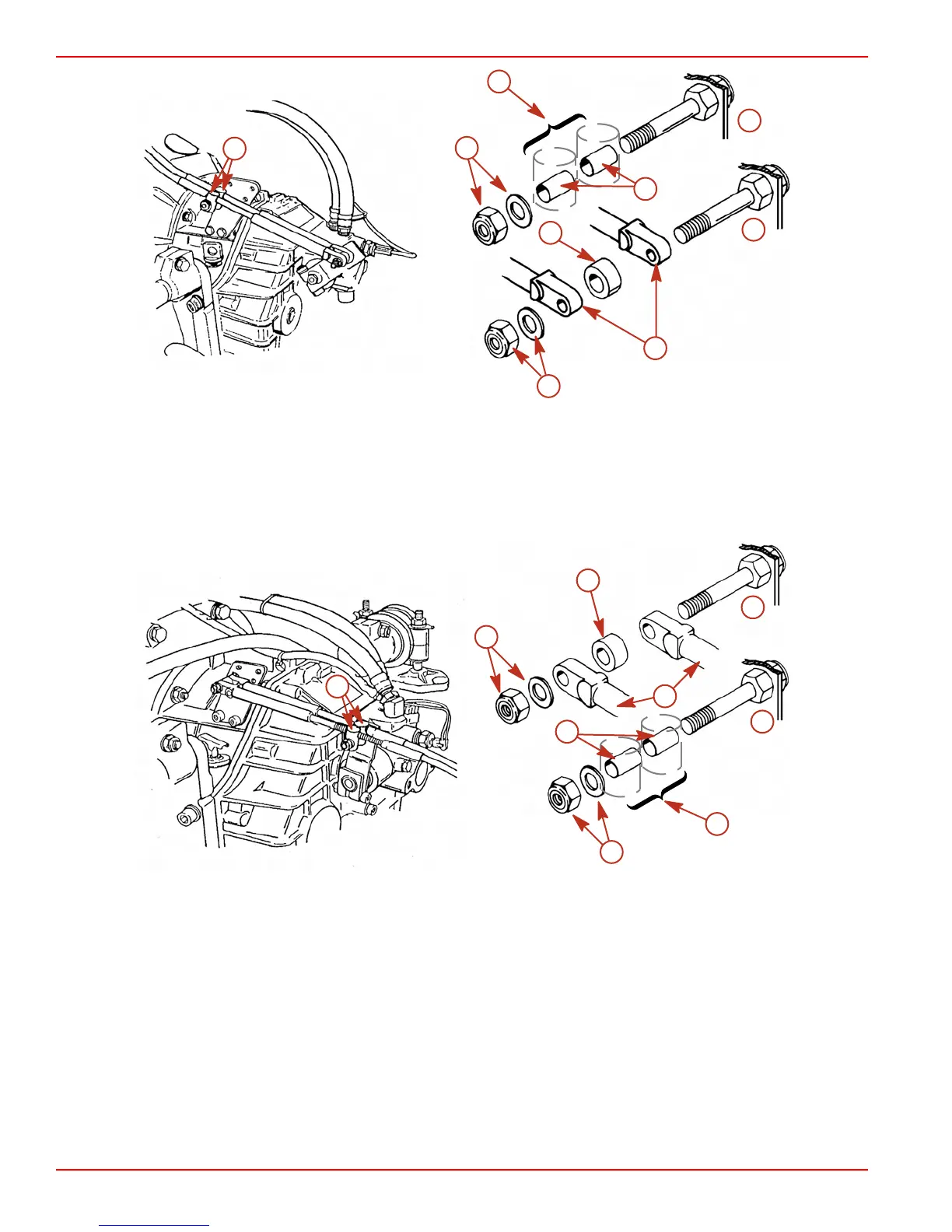

Typical dual cable: forward entry
a - Cable end guides
b - Locknut and washer
c - Spacer (fits over stud)
d - Bushings
e - Cable barrel locations
f - Cable barrel stud
g - Cable end guide stud
e
a
b
c
d
e
b
f
g
7675
Typical dual cable: rear entry
a - Cable end guides
b - Locknut and washer
c - Spacer (fits over stud)
d - Bushings
e - Cable barrel locations
f - Cable barrel stud
g - Cable end guide stud
