Cooling System
90-863758060 AUGUST 2006 Page 7A-17

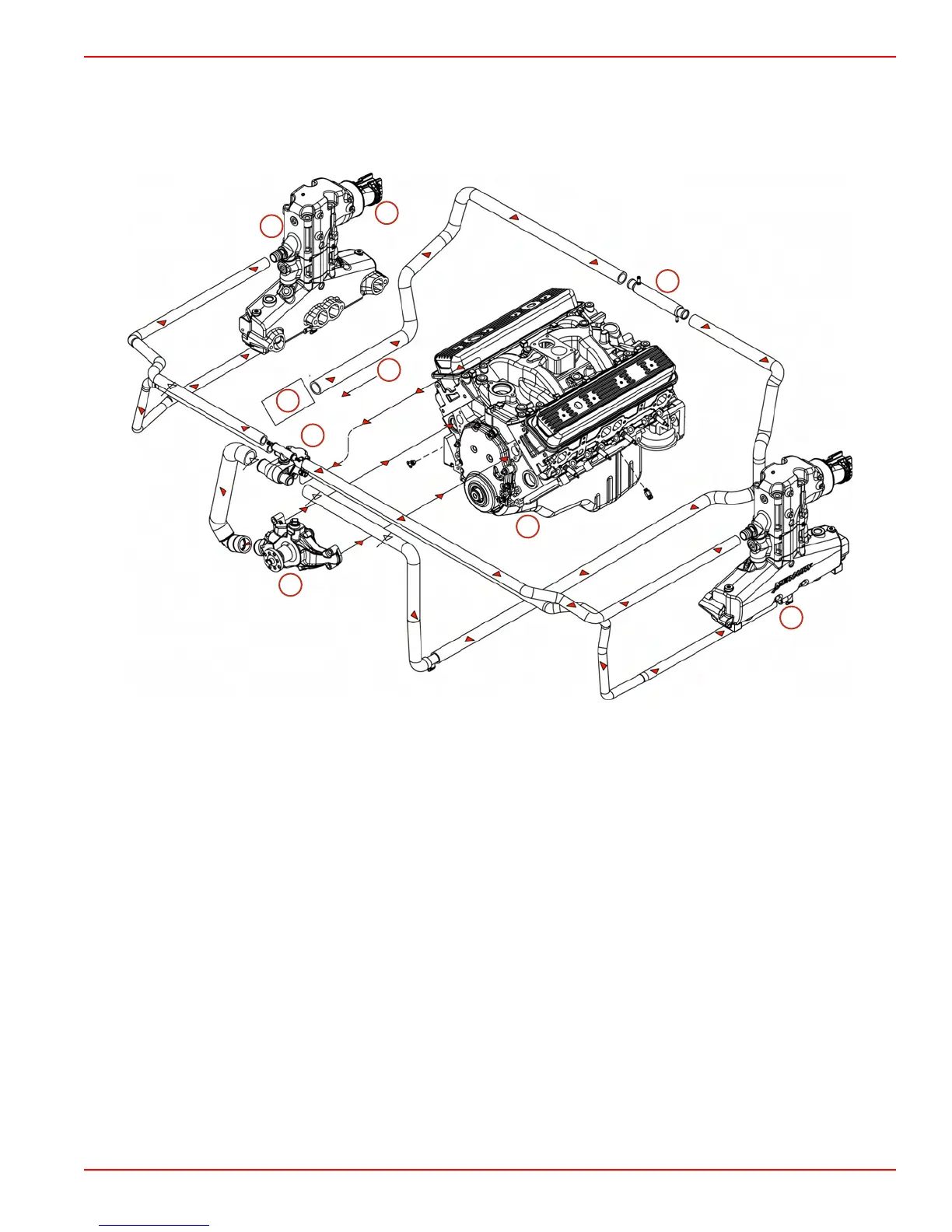

5.7L Tow Sport Water Flow Diagram
Inboard and Tow Sport (Carburetor) Water Flow Diagram
SEAWATER COOLING SYSTEM
a
b
c
d
e
f
g
h
i
7567
a - Seawater inlet
b - Seawater pump
c - Transmission cooler
d - Thermostat housing and cover
assembly
e - Engine water circulating pump
f - Engine block and cylinder head
assembly
g - Exhaust manifold, typical
h - Exhaust elbow assembly, typical
i - Exhaust outlet
j - Warm riser
