Transmission and Drive Line
90-863758060 AUGUST 2006 Page 2A-11
a
b
d
b
c
7650
e

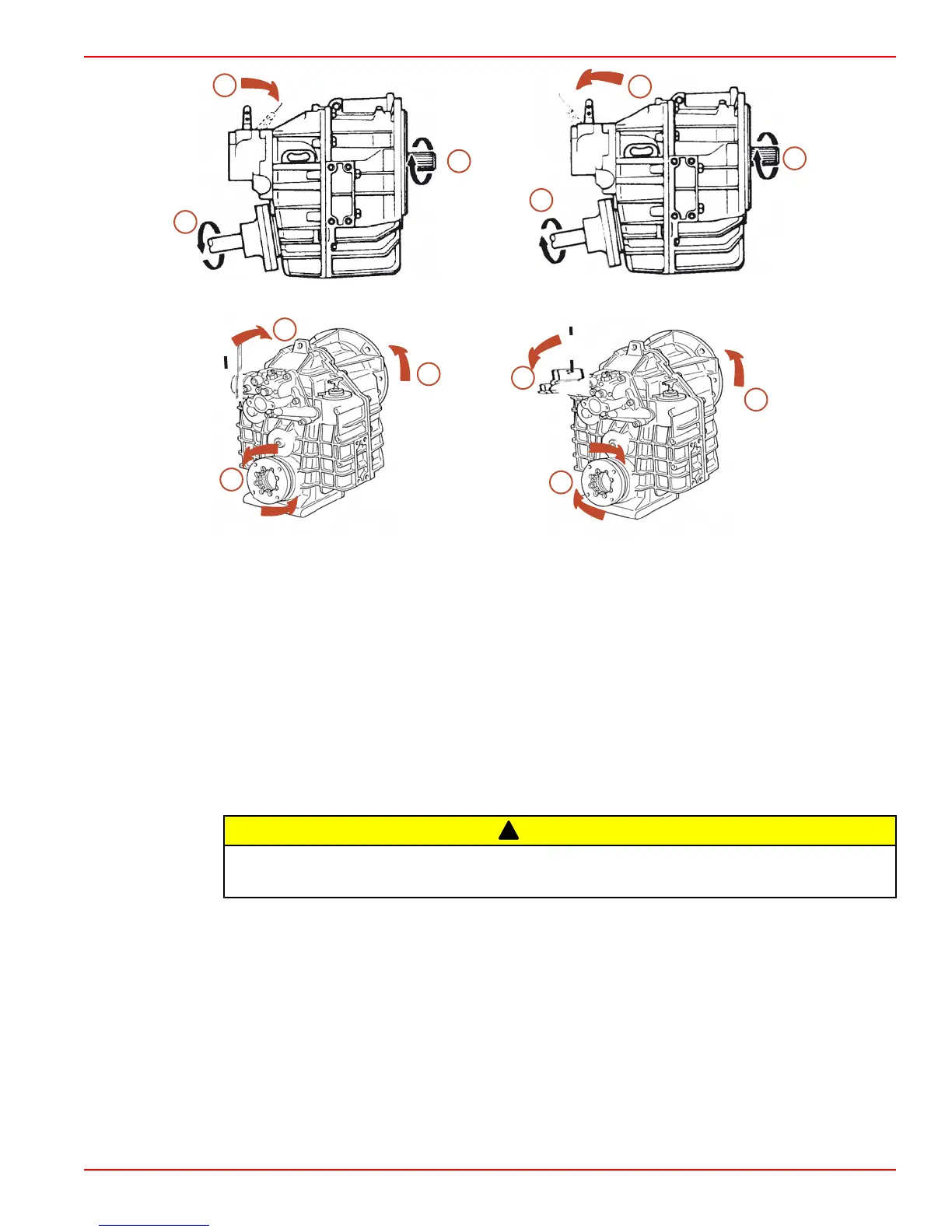

ZF Marine 630A and 800 — down-angle transmissions
a
b
d
b
7651
c
e
ZF Marine 630V — V-drive transmissions
a - Direction of shift lever
engagement (toward flywheel)
b - Engine/transmission input shaft
rotation direction (LH)
c - Transmission output / propeller
shaft rotation direction (RH as
viewed at propeller)
d - Direction of shift lever
engagement (away from flywheel)
e - Transmission output / propeller
shaft rotation direction (LH as
viewed at propeller)
f - Transmission output / propeller
shaft rotation direction (RH as
viewed at propeller)
g - Transmission output / propeller
shaft rotation direction (LH as
viewed at the propeller)
VELVET DRIVE 71C AND 72C TRANSMISSIONS
!
CAUTION
Propeller rotation must match output flange rotation decal on transmission. Transmission
failure will occur if incorrect rotation propeller is used
