Engine
90-863758060 AUGUST 2006 Page 3A-7
ENGINE VIEW
c
a
h
d
e
g
i
j
k
b
b
f
24889

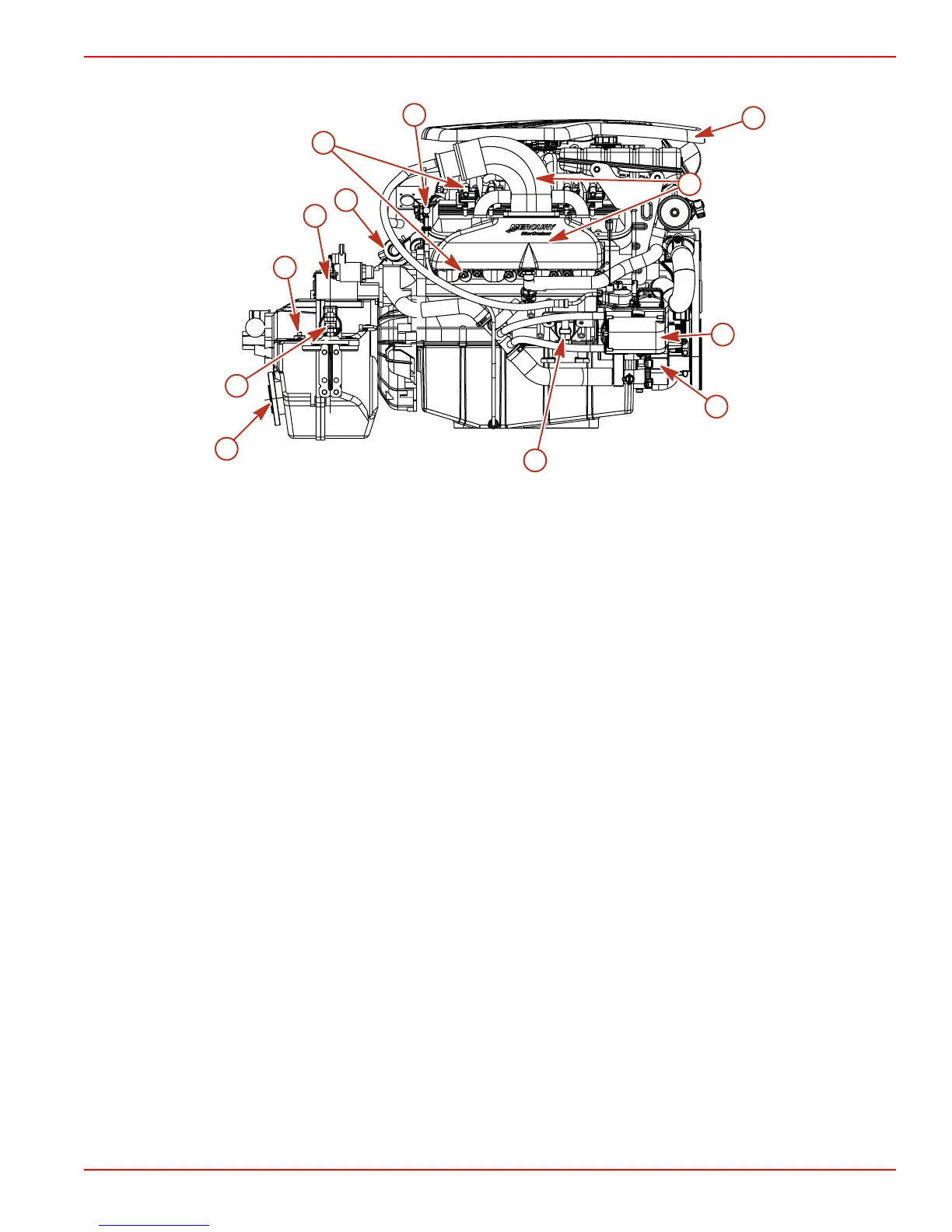

Typical 8.1L inboard side view
a - Transmission output flange
b - Engine mounts (4)
c - Transmission dipstick
d - Starter (inboard style)
e - Transmission fluid cooler
f - Ignition components
g - Dipstick
h - Engine cover
i - Exhaust manifold and elbow (2)
j - Gen III Cool Fuel Module (Inboard
models)
k - Seawater pump
