Exhaust System
Page 6A-4 90-863758060 AUGUST 2006

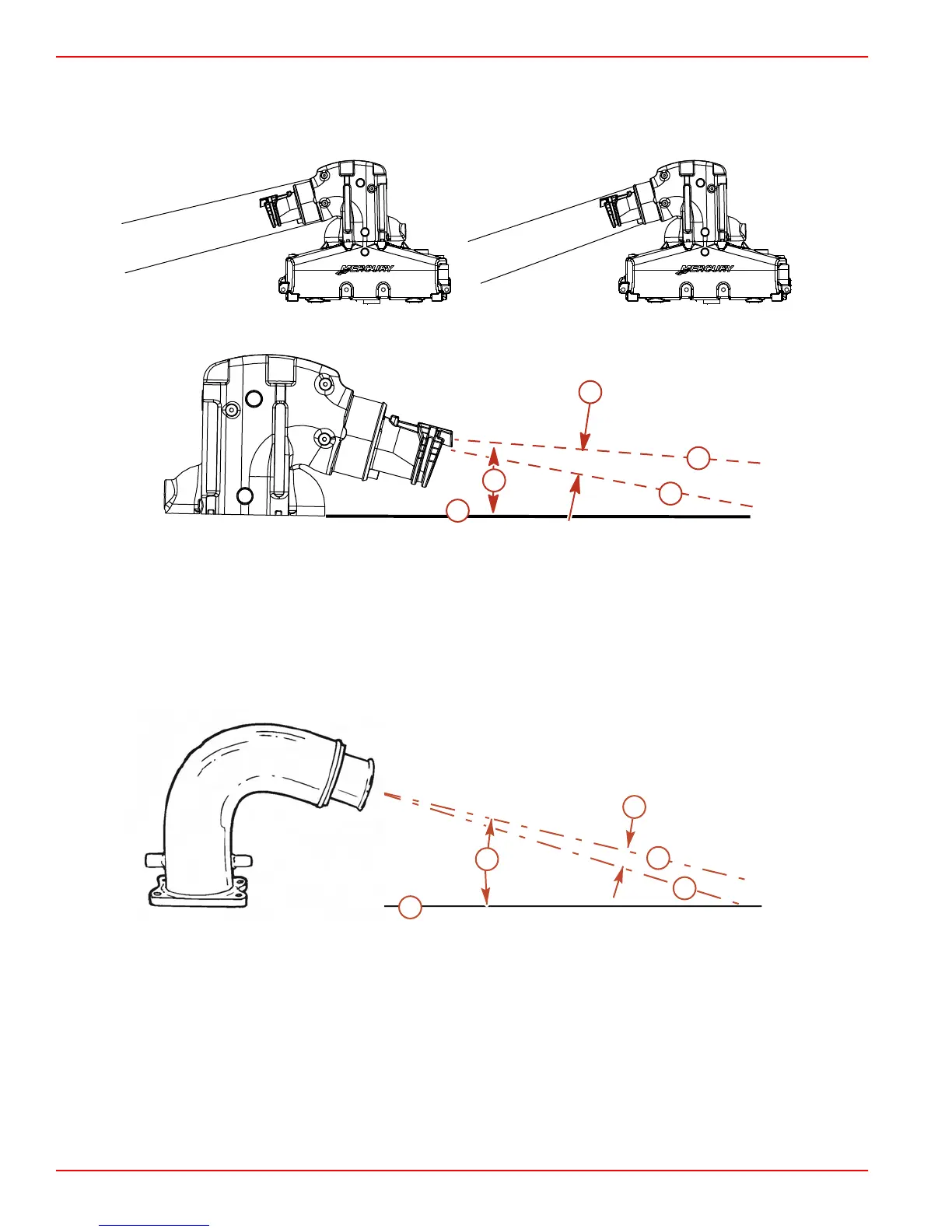

Exhaust hoses must be properly installed on exhaust elbow outlets. Discharge water from
the exhaust elbow must flow around the entire inside diameter of hose to avoid causing
hot spots that could burn through the hose. Exhaust hoses must be installed at the angle
shown following.
18576
18577
Correct Incorrect
e
a
b
c
d
18578
a - Maximum misalignment +/‑ 5
degrees
b - Exhaust outlet centerline (14° vs.
crankshaft centerline)
c - Exhaust hose centerline
d - Angle vs. horizontal
e - Horizontal (level surface)
13362
a
b
c
d
e
8.1 exhaust connection
a - Maximum misalignment +/‑ 5
degrees
b - Exhaust outlet centerline (14
degrees vs. crankshaft centerline)
c - Exhaust hose centerline
d - See chart for angle vs. horizontal
e - Horizontal (level surface)
