Chapter 1 Introduction
Status Indication
Orange Solid on: The wireless networks are disabled.
1. 2. 2. Rear Panel

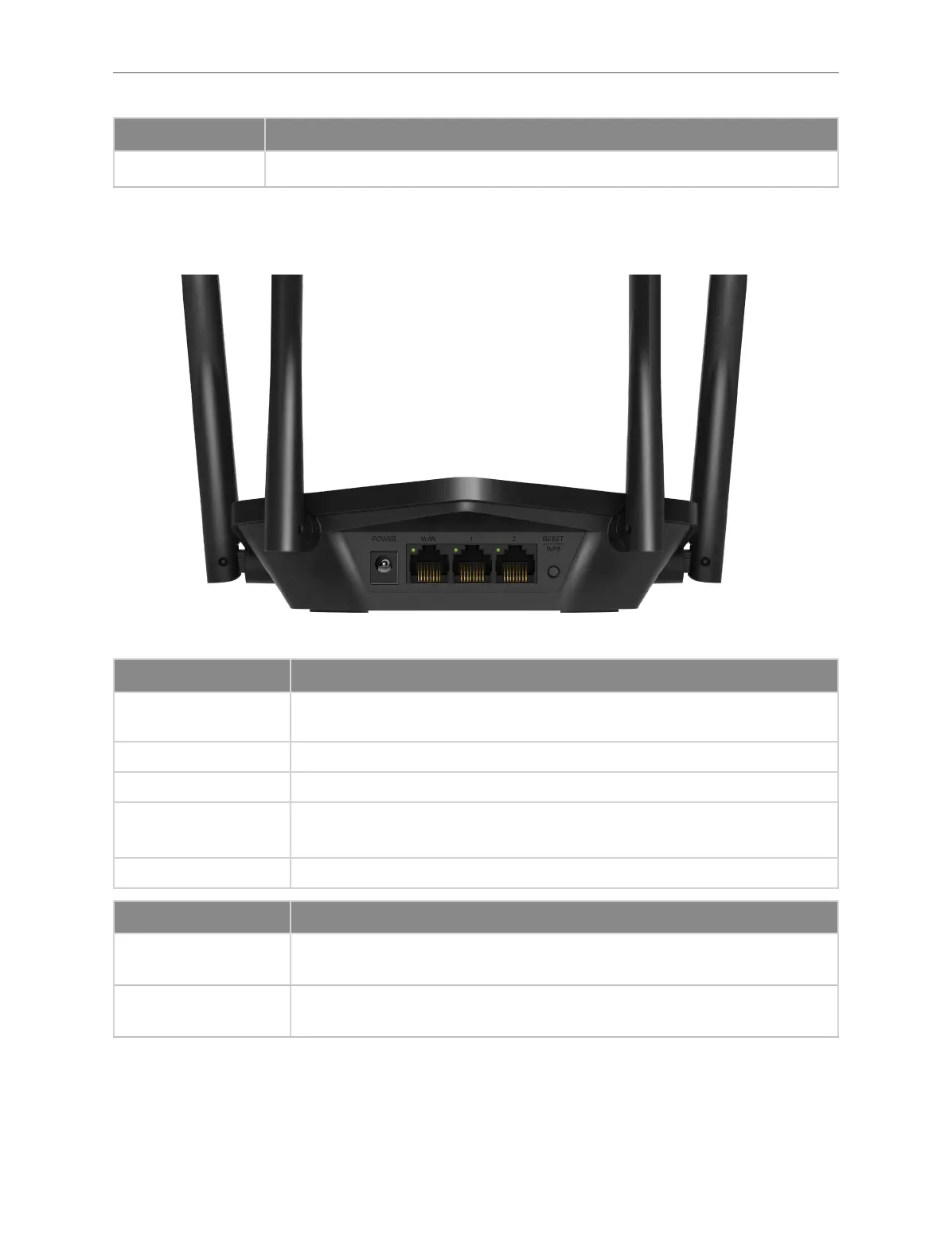

The following items are located on the rear panel (View from left to right).
Item Description
POWER Socket
The power socket is where you will connect the power adapter. Please use the
power adapter provided with this router.
WAN Port Use the port as the WAN port to connect the DSL/cable Modem or Ethernet outlet.
LAN Ports These ports connect the router to the local devices.
RESET/WPS Button
Press and hold this button for more than 5 seconds to reset the router.
Press for 1 second to use the WPS function.
Wireless Antennas To receive and transmit the wireless data.
Item Indication
WAN Port LED
Off: The WAN port is not connected.
On: The WAN port is connected.
LAN Port LED
Off: The LAN port is not connected.
On: The LAN port is connected.

Mercusys MR60X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1501 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA, WPA2, WPA3
Mobile network generation	-

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
