13
Chapter 4 Congure the Router in Wireless Router Mode

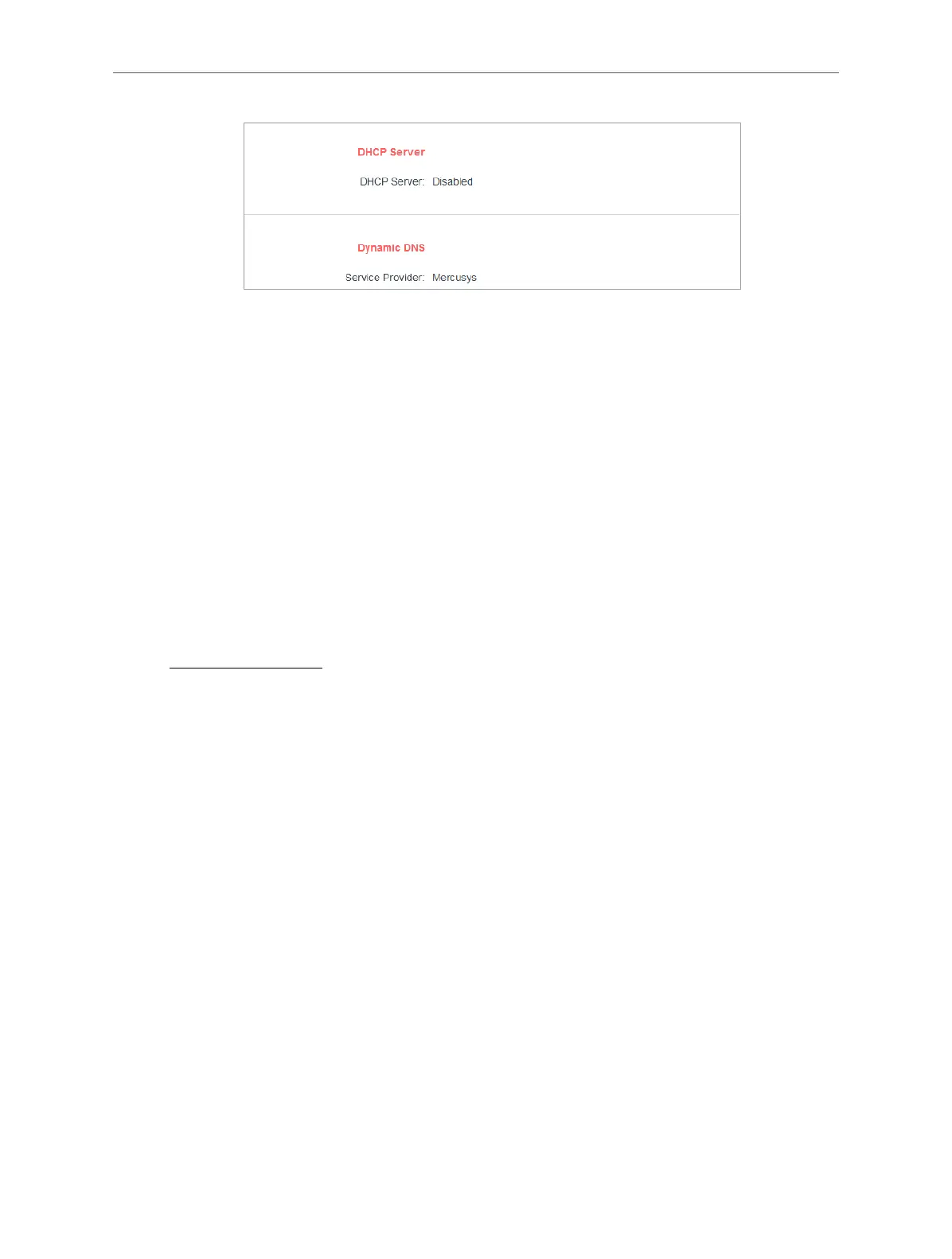

DHCP Server - This field displays the current settings of DHCP (Dynamic Host
Configuration Protocol) Server, and you can configure them on the Network > DHCP
Server page.
DHCP Server - Indicates whether the DHCP server is enabled of disabled. It is
enabled by default and the router acts as a DHCP server.
IP Address Pool - The IP address range for the DHCP server to assign IP addresses.
Dynamic DNS - This field displays the current settings of the Dynamic DNS (Domain
Name System), and you can configure them on the Advanced > Network > Dynamic DNS
page.
Service Provider - The Dynamic DNS service provider you have signed up for.
4. 3. 2. Internet
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > Network > Internet.
3. Set up the internet connection and click SAVE.
Dynamic IP
If your ISP provides the DHCP service, please select Dynamic IP, and the router will
automatically get IP parameters from your ISP.
Click RENEW to renew the IP parameters from your ISP.
Click RELEASE to release the IP parameters.
DNS Address - The default setting is to get an IP address dynamically from your ISP. If
your ISP does not automatically assign DNS addresses to the router, please select Use
the Following DNS Addresses and enter the IP address in dotted-decimal notation of
your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as
well.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU size
unless required by your ISP.
Host Name - This option specifies the name of the router.
