Mercusys MR60X User Manual

14
Chapter 4 Congure the Router in Wireless Router Mode
• Get IP with Unicast DHCP - A few ISPs’ DHCP servers do support the broadcast applications. If
you cannot get the IP address normally, you can choose this option (it is rarely required).
Static IP
If your ISP provides a static or fixed IP address, subnet mask, default gateway and DNS
setting, please select Static IP.
• IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
• Subnet Mask - Enter the subnet mask in dotted-decimal notation provided by your ISP.
Normally 255.255.255.0 is used as the subnet mask.
• Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by
your ISP.
• Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal
notation provided by your ISP.
• MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 bytes. It is not recommended that you change the default MTU size
unless required by your ISP.

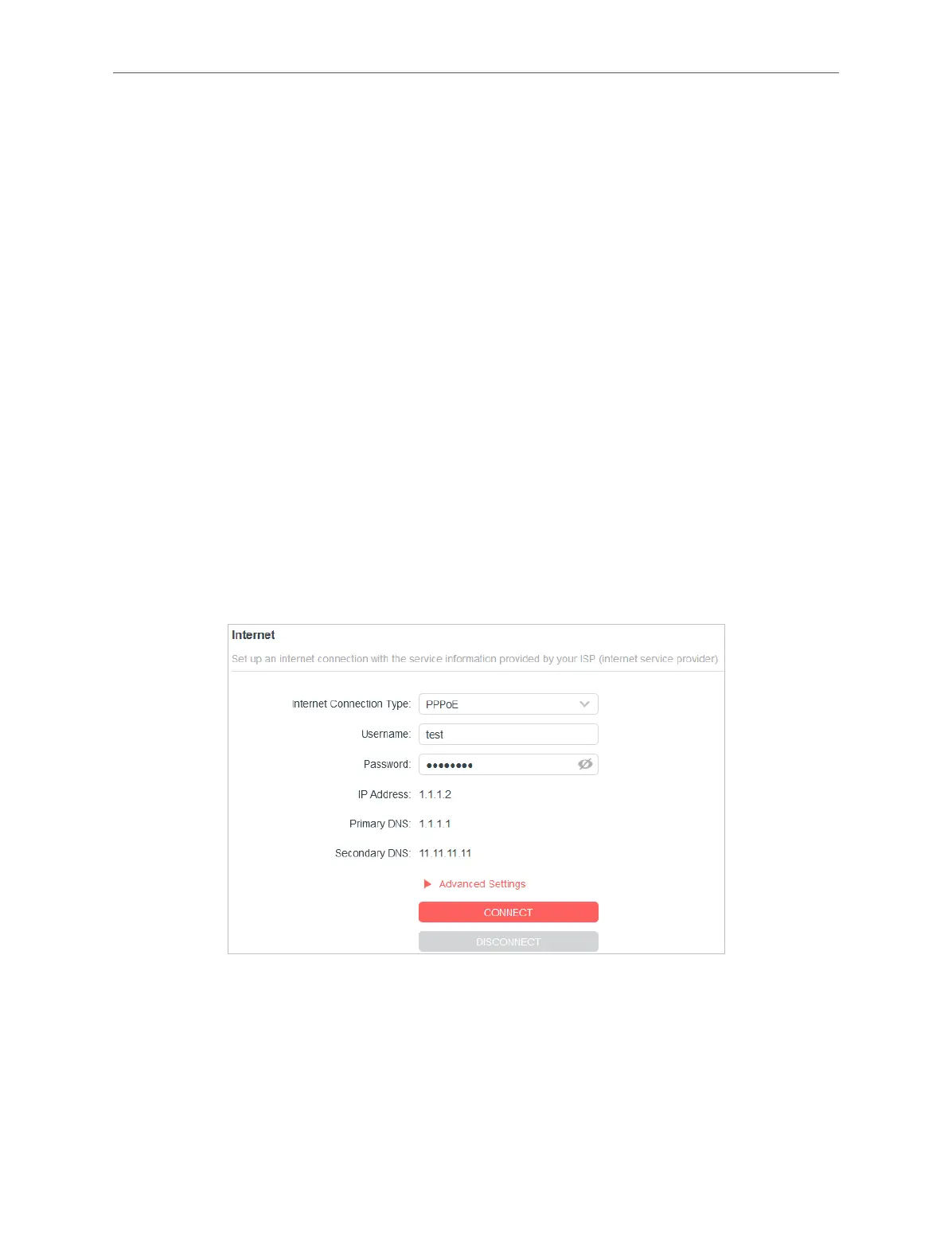

PPPoE
If your ISP provides PPPoE connection, select PPPoE.
• Username/Password - Enter the user name and password provided by your ISP. These
fields are case-sensitive.
• Secondary Connection - It’s available only for PPPoE connection. If your ISP provides
an extra connection type, select Dynamic IP or Static IP to activate the secondary
connection.
• MTU Size - The default MTU size is 1480 bytes. It is not recommended that you change
the default MTU size unless required by your ISP.

Mercusys MR60X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1501 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA, WPA2, WPA3
Mobile network generation	-

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
