37
Chapter 4 Congure the Router in Wireless Router Mode
host. When the data from the internet return to the external ports, the router can forward
them to the corresponding host. Port triggering is mainly applied to online games, VoIPs,
video players and common applications including MSN Gaming Zone, Dialpad, Quick Time 4
players and more.
Follow the steps below to configure the port triggering rules:
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > NAT Forwarding > Port Triggering.
3. Click Add.

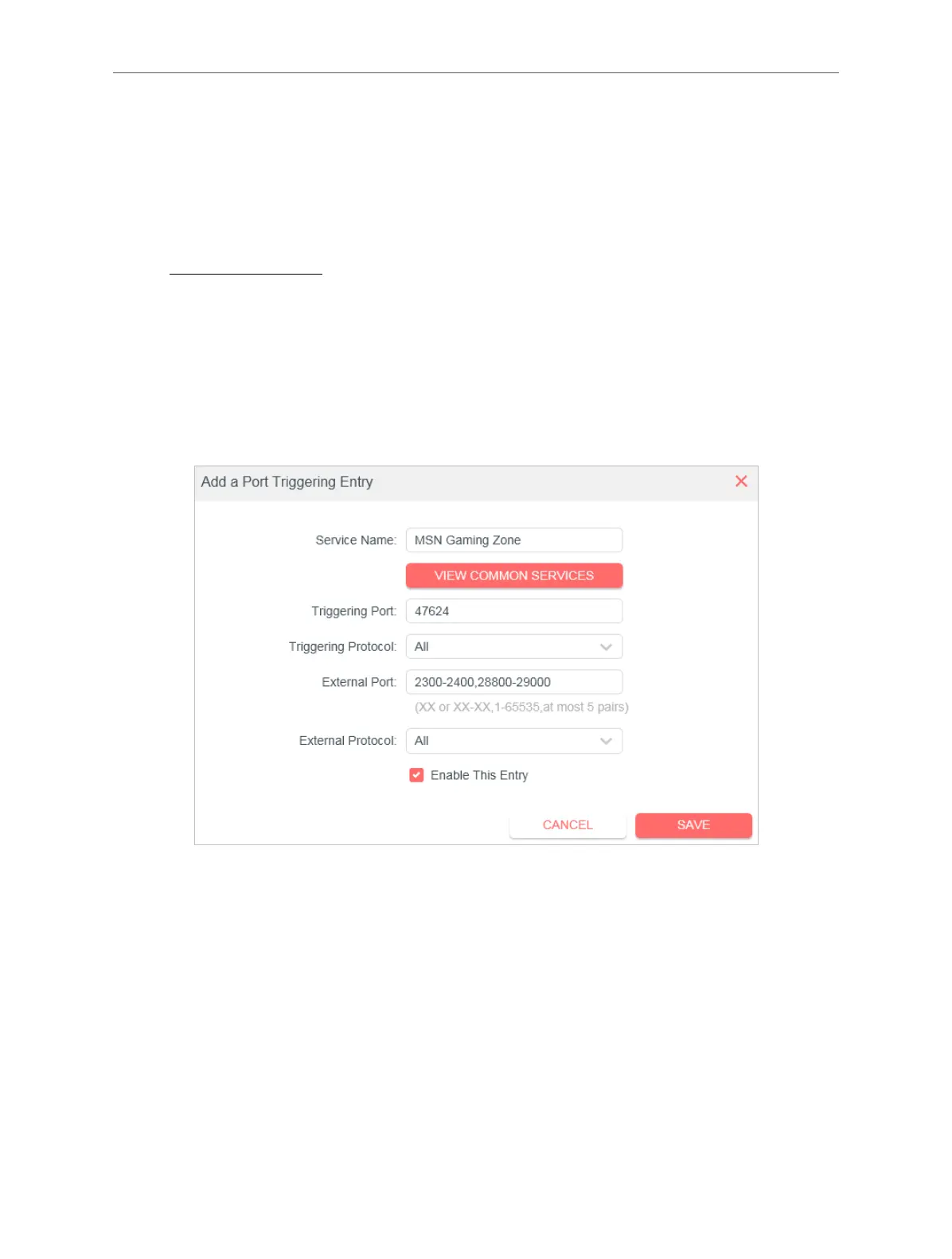

4. Click VIEW COMMON SERVICES, and select the desired application. The Triggering Port,
Triggering Protocol and External Port will be automatically filled in. The following picture
takes application MSN Gaming Zone as an example.
5. Click SAVE.
Note:
You can add multiple port triggering rules as needed.
The triggering ports can not be overlapped.
If the application you need is not listed in the Common Services list, please enter the parameters manually. You should verify
the external ports the application uses first and enter them in External Ports field. You can input at most 5 groups of ports
(or port sections). Every group of ports must be set apart with “,”. For example, 2000-2038, 2050-2051, 2085, 3010-3030.
4. 6. 3. UPnP
The UPnP (Universal Plug and Play) protocol allows the applications or host devices
to automatically find the front-end NAT device and send request to it to open the
corresponding ports. With UPnP enabled, the applications or host devices on the local

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MR60X and is the answer not in the manual?

Mercusys MR60X Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
Product typeTabletop router
Product colorBlack
LED indicatorsPower, WLAN
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)1501 Mbit/s
WLAN data transfer rate (first band)1201 Mbit/s
WLAN data transfer rate (second band)300 Mbit/s
Antennas quantity4
Antenna gain level (max)5 dBi
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Number of guest networks (2.4 GHz)1
Power source typeDC
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Ethernet LAN (RJ-45) ports3
Cables includedLAN (RJ-45)
Firewall securitySPI Firewall, IP and MAC Address Binding
Security algorithmsWPA, WPA2, WPA3
Mobile network generation-
Weight and Dimensions IconWeight and Dimensions
Depth157.2 mm
Width175.6 mm
Height45 mm
