Mercusys MR60X User Manual

73
Chapter 5
Congure the Router in Access Point Mode
5. Click SAVE.

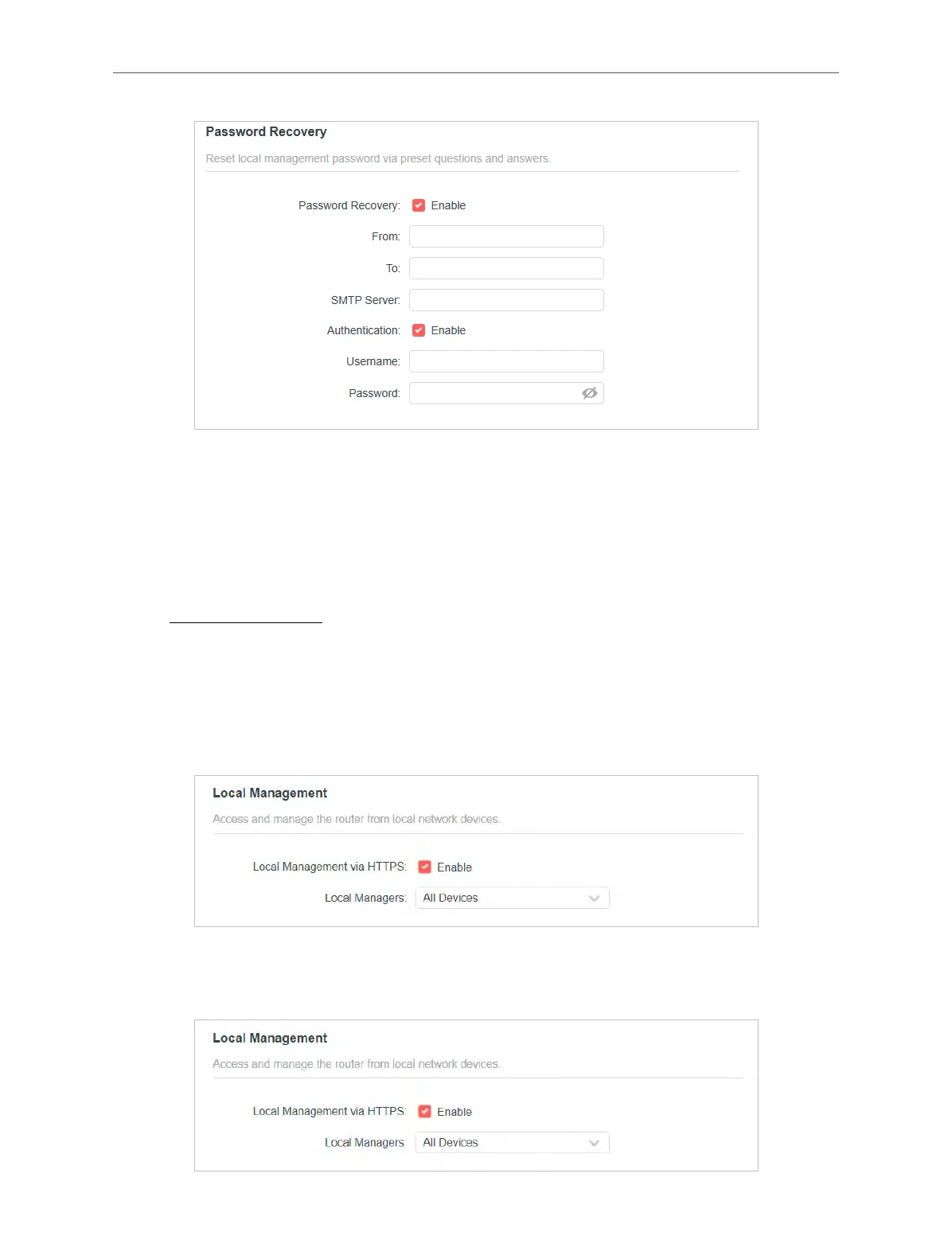

To recover the login password, please visit http://mwlogin.net, click Forgot Password? on
the login page and follow the instructions to set a new password.
5. 5. 3. Local Management
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to System > Administration, and focus on the Local Management section.
¾ Access the router via HTTPS and HTTP:
Tick the Enable box of Local Management via HTTPS to access the router via HTTPS and
HTTP, or keep it disabled to access the router only via HTTP.
¾ Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers.

Mercusys MR60X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1501 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA, WPA2, WPA3
Mobile network generation	-

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
