Mercusys MR60X User Manual

17
Chapter 4 Congure the Router in Wireless Router Mode
• Manual - In this mode, the internet connection is controlled manually by clicking the
Connect/Disconnect button. This mode also supports the Max Idle Time function
as On Demand mode. Enter a maximum time (in minutes), the internet connection
can be inactive before it is terminated into the Max Idle Time. The default value is
15 minutes. If you want the internet connection remains active all the time, enter 0
(zero).
Note:
Sometimes the connection cannot be terminated although you have specified the Max Idle Time because some applications
are visiting the internet continually in the background.

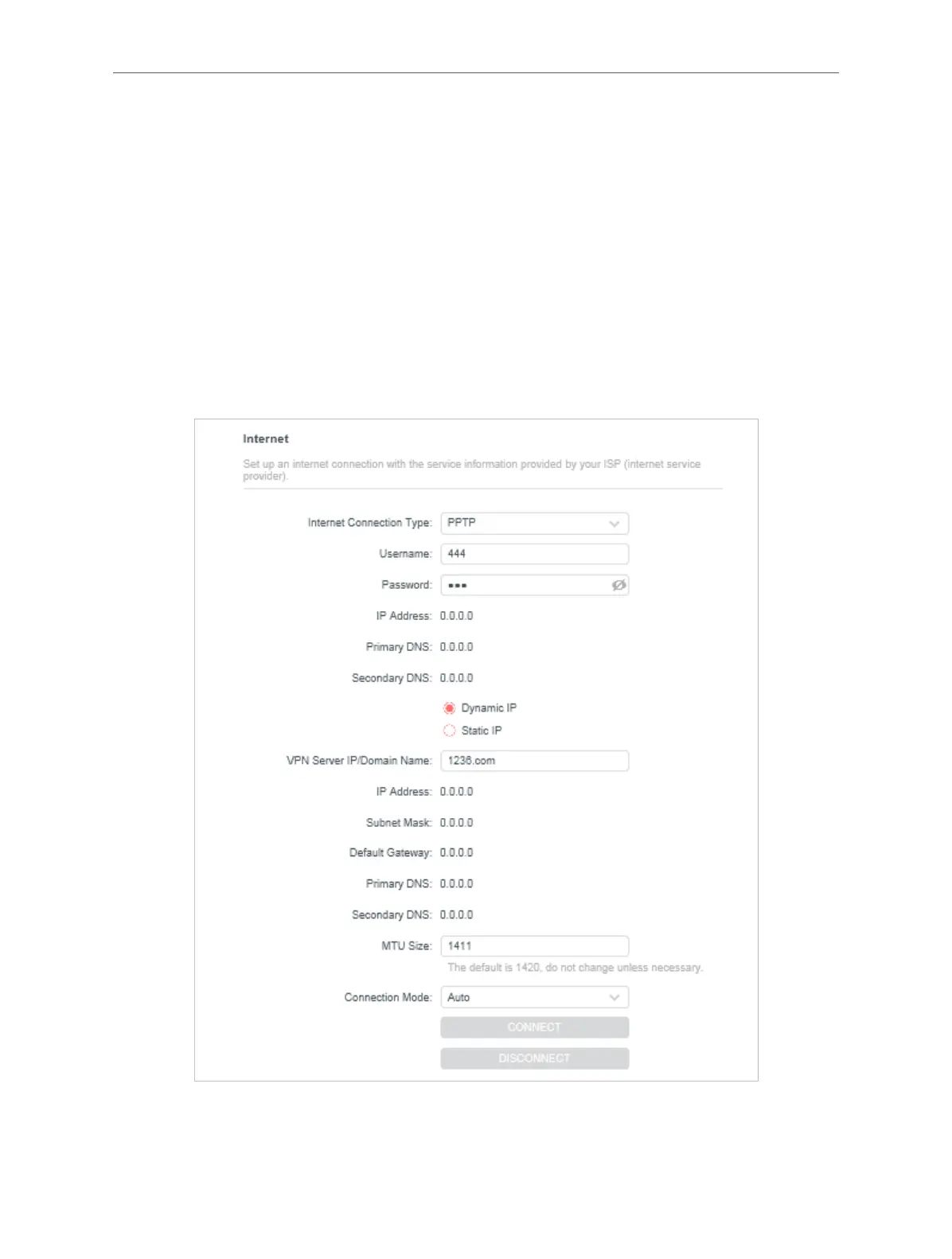

PPTP
If your ISP provides PPTP connection, please select PPTP.
• Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.

Mercusys MR60X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1501 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA, WPA2, WPA3
Mobile network generation	-

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
