Mercusys MR60X User Manual

66
Chapter 4 Congure the Router in Wireless Router Mode

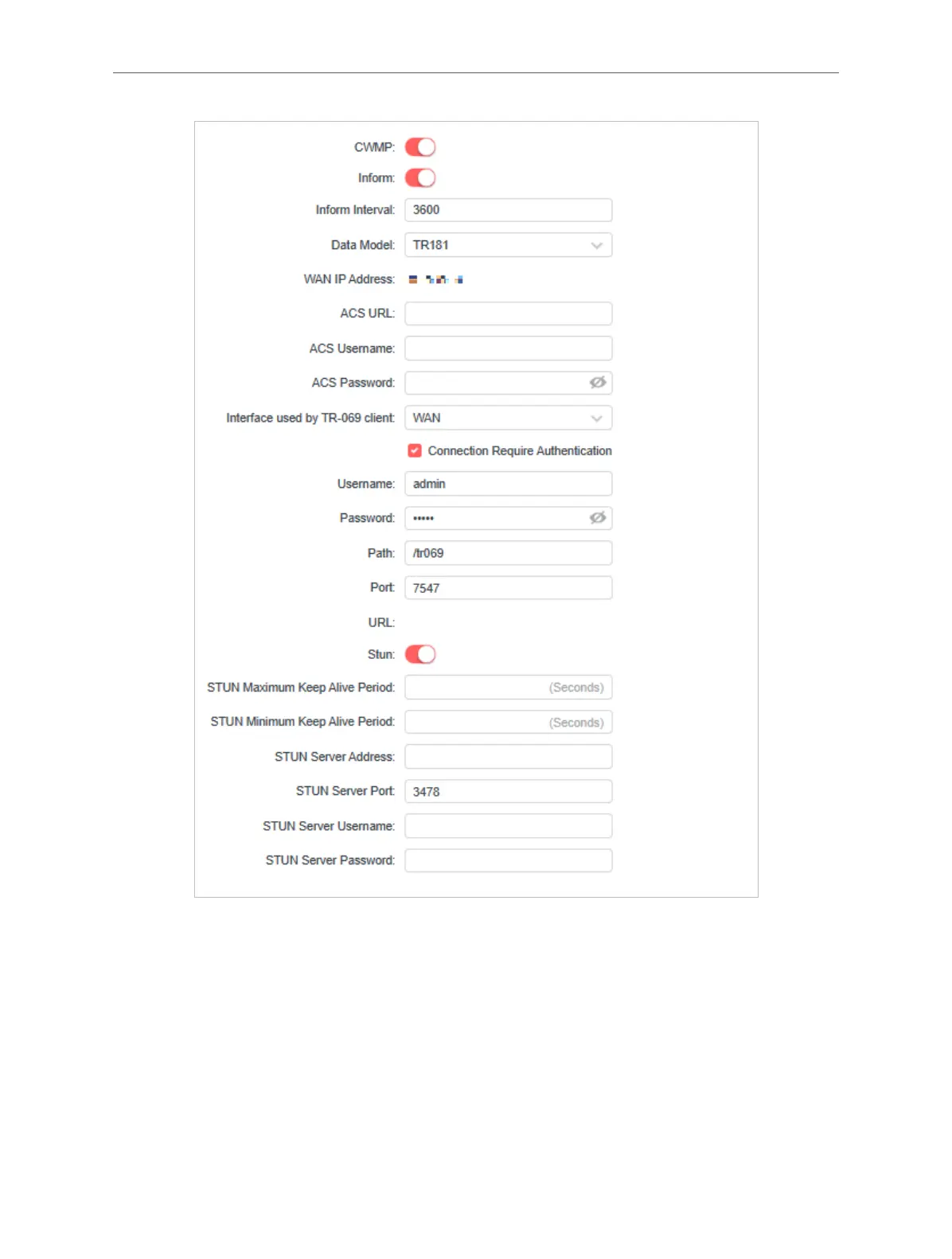

• CWMP - Toggle on to enable the CWMP function.
• Inform - Enable to send an inform message to the ACS periodically.
• Inform Interval - Enter the time interval when the Inform message will be sent to the ACS.
The default value is 3600 seconds.
• Data Model - Select under your ISP’s instructions the data model according to which the
inform message will be sent to the ACS.
• WAN IP Address - Displays the WAN IP Address of the router.
• ACS URL - Enter the web address of the ACS provided by your ISP.
• ACS Username/Password - Enter the username/password to log in to the ACS server.

Mercusys MR60X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1501 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA, WPA2, WPA3
Mobile network generation	-

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
