Metasys TC-9100 Series User Manual

4 Technical Bulletin—TC-9100 Universal Controller
2333

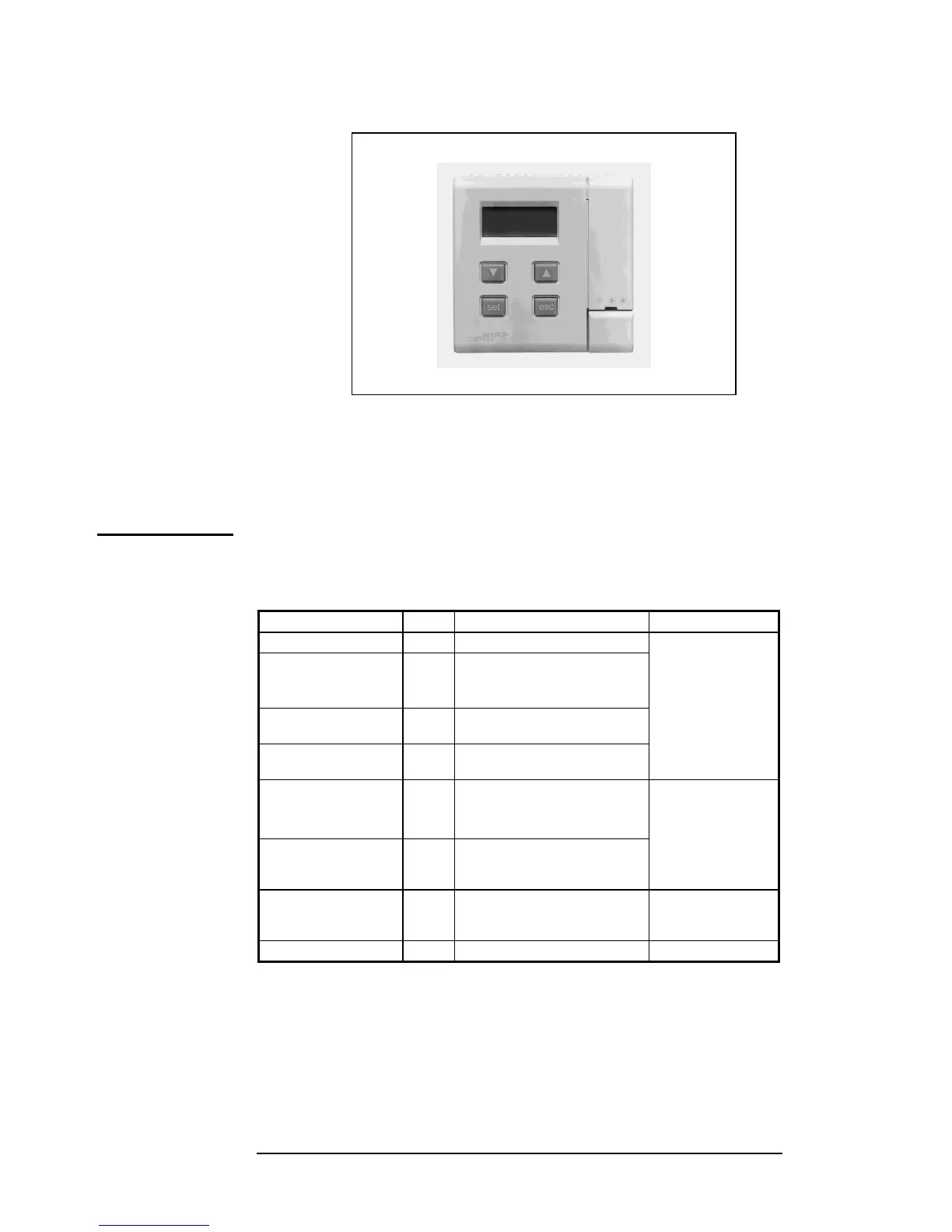

Figure 3: TM-9180 Room Command Module
Note: The TM-9180 Room Command Module is only available as a
replacement part from July 2006.
There are two models of the TC-9100 Universal Controller. Each model
is available with fixed terminals or separable terminals.
Table 1: Controller Inputs and Outputs
Inputs/Outputs Qty. Type of Signal Model
Analog Inputs 4 0 - 10 VDC
Digital Input 1
Digital Input 2
1
1
Dry contact or HX-9100-8001
Condensation Sensor
Dry contact
Models 1 and 2
Mode Contact
(Occupancy Button)
1 Dry momentary contact
LED Mode Signal 1 Voltage for LED in RS-1100
Series
Analog Output 1a/b
(Heating/Cooling)
Analog Output 2
2
1
0 - 10 VDC
0 - 10 VDC
Model 1 only
Digital Outputs
(PAT, DAT, 2-Stage
On/Off, and On/Off)
5 Triac rated at 24 VAC
(switched only - no power
supplied)
Digital Outputs
(PAT, DAT, 2-Stage
On/Off, and On/Off)
7 Triac rated at 24 VAC
(switched only - no power
supplied)
Model 2 only
Power Supply 1 24 VAC Models 1 and 2
For detailed information about the physical characteristics of the inputs
and outputs, refer to the Specifications and Technical Data section further
in this document.
For detailed information about the configuration possibilities, refer to the
appropriate Software Configuration section further in this document.
Controller
Hardware
Models
