Technical Bulletin—TC-9100 Universal Controller 49
Installation
The TC-9100 Universal Controller is designed to be mounted close to the
terminal unit equipment being controlled, within a Fan Coil Unit housing
for example, or within an electrical control cabinet. The mounting
location must be clean and dry, and not subject to extreme heat, cold, or
electrical disturbances. The installation and electrical wiring must
conform to local codes and should be carried out by authorized personnel
only. Users should ensure that all Johnson Controls’ products are used
safely and without risk to health or property.
For surface mounting, slide the two mounting brackets into the slots at
opposite corners of the controller base behind the terminals. Fix to the
surface using the 4-mm diameter self-tapping screws.
For DIN rail mounting, place the controller on the upper edge of the rail
and press the controller firmly against the rail until the spring-loaded clip
engages the lower edge of the rail. To remove the controller, insert a
screw driver into the clip at the base of the controller and pull the clip
downwards to release.
iutc0dim
6 mm/
0.24"
120 mm/4.72"
118 mm/
4.64"
108 mm/4.25"
3
31 mm/
1.22"
4.6 mm/
0.18"
101.6 mm/
3.99"
11 mm/
0.43"
11 mm/
0.43"
(Separable Terminals
Only)

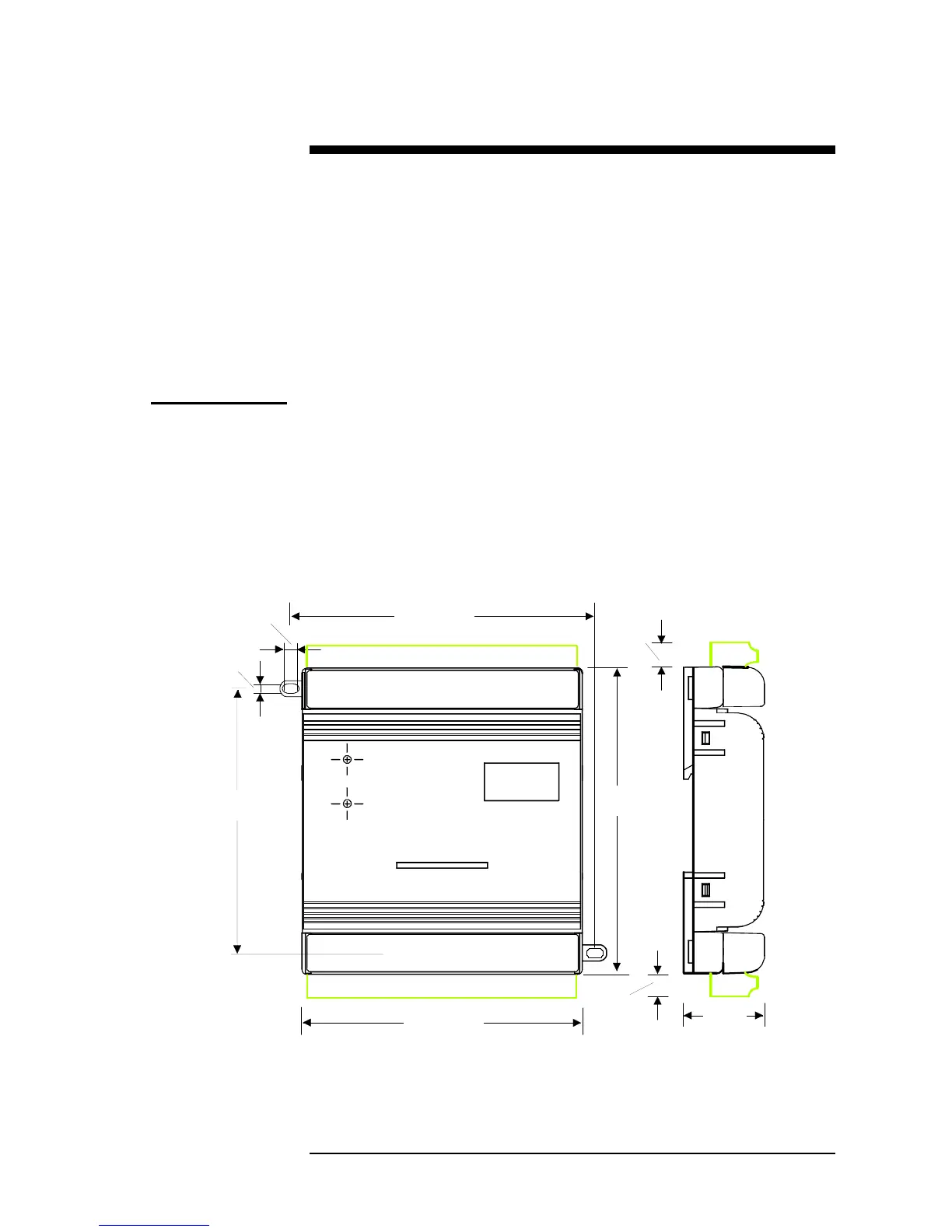

Figure 17: TC-9100 Controller Dimensions in mm
Note: A minimum of 25 mm of space is required above and below the
controller for the removal of separable terminals.
Mounting
