METER SC-1 User Manual

8
OPERATION

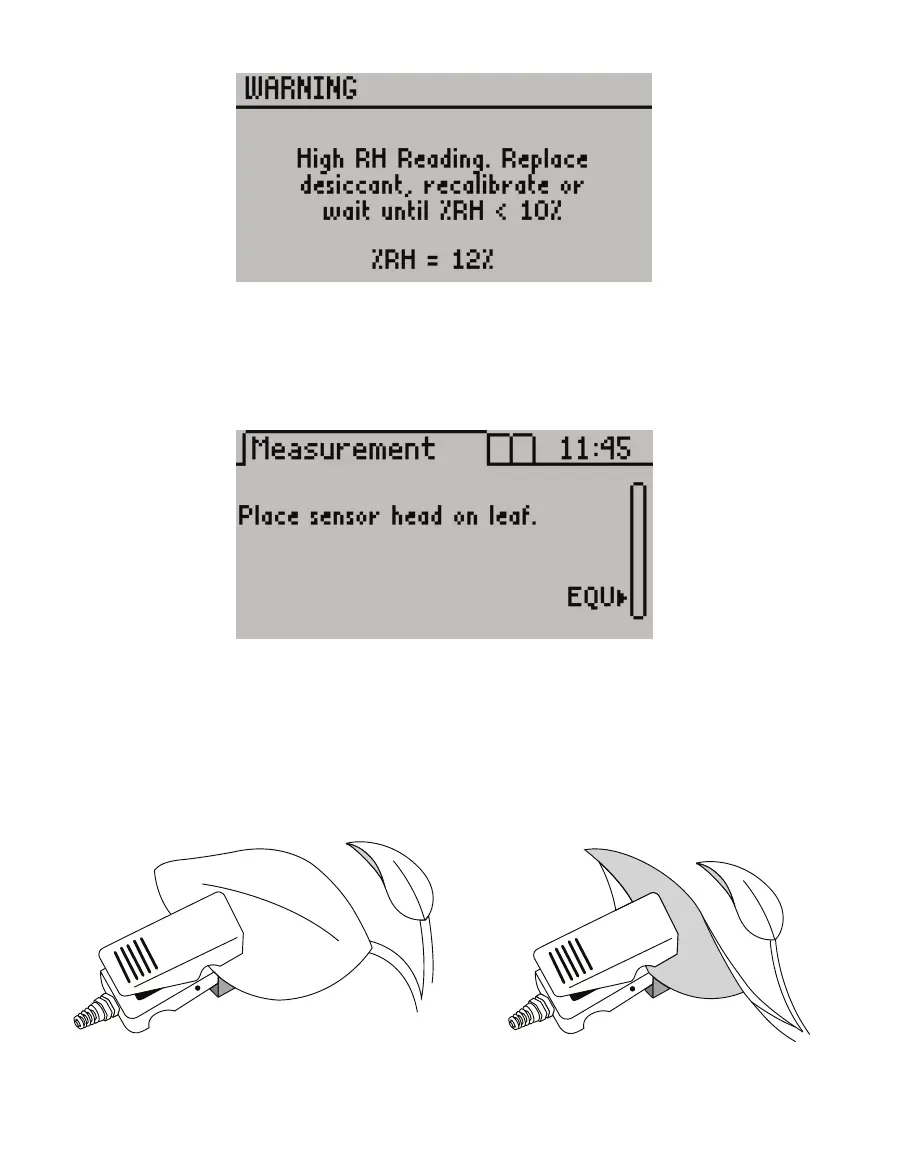

Figure9 Warning screen for high RH reading
The total shake down period should be approximately 50 s. If it takes longer than 75 s to
equilibrate, the SC-1 may have a problem. Refer to Section4.3.
7. Once the measurement chamber has dried and equilibrated, the Measurement tab will
display a prompt to insert the leaf (Figure10).
Figure10 Prompt to place sensor head on the leaf
8. Choose to measure adaxial (the top of the leaf) or abaxial (the bottom of the leaf)
conductance, depending on plant type and desired data.
9. Orient the leaf appropriately for the measurement. The dessicant chamber must always
be oriented down (Figure11).
ABAXIAL (BOTTOM) ADAXIAL (TOP)
Figure11 Leaf orientation during adaxial or abaxial conductance measurements
