METER SC-1 - Page 16

12
OPERATION

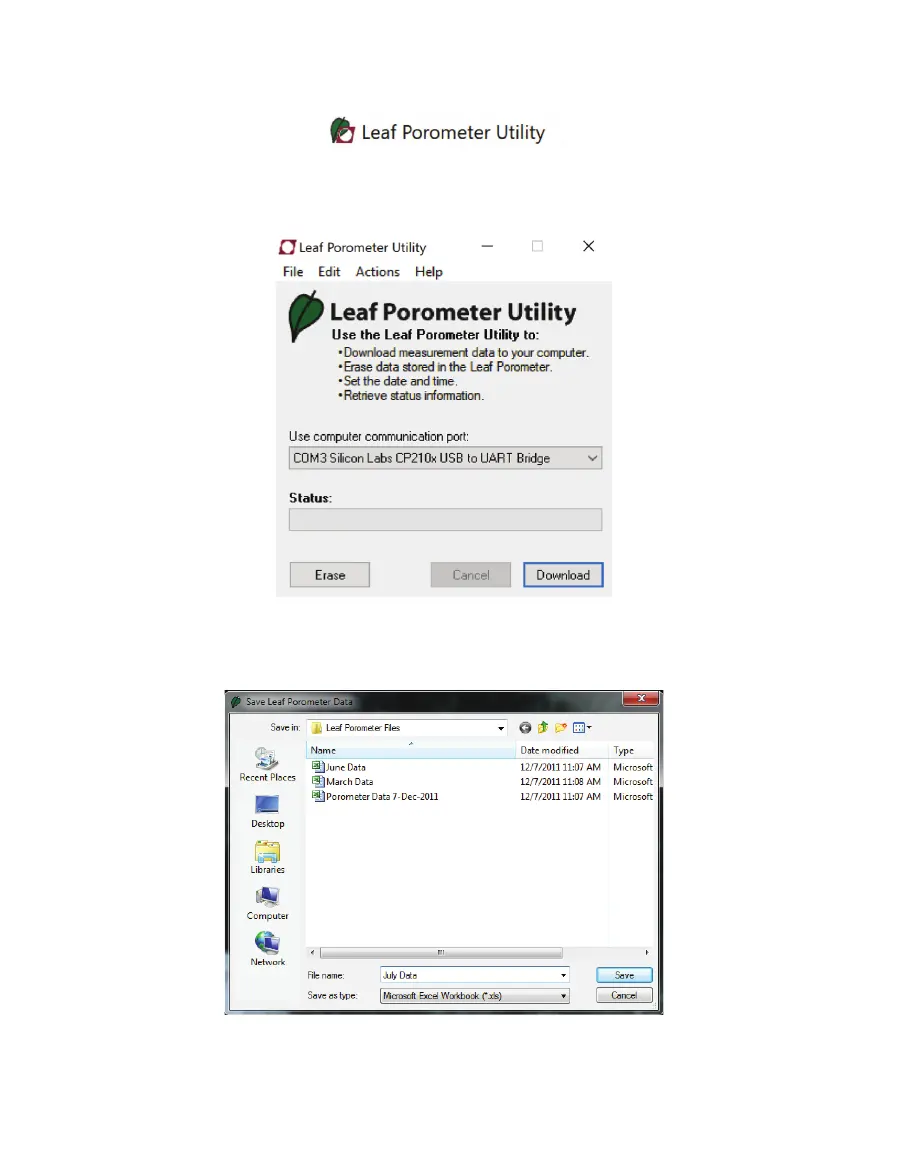

3. Open Leaf Porometer Utility (Figure18).
Figure18 Leaf Porometer Utility application
4. Choose the appropriate communication port from the from the Use computer
communication port dropdown on the main window (Figure19).
Figure19 Leaf Porometer Utility main window
5. Click Download.
The Save Leaf Porometer Data window appears (Figure20).
Figure20 Choose file name and location on the Save Leaf Porometer Data window
6. Name the data file.
