Metos PROVENO E - Dimensions

|
47
PROVENO E
Rev. 1.2 (24.08.2016)

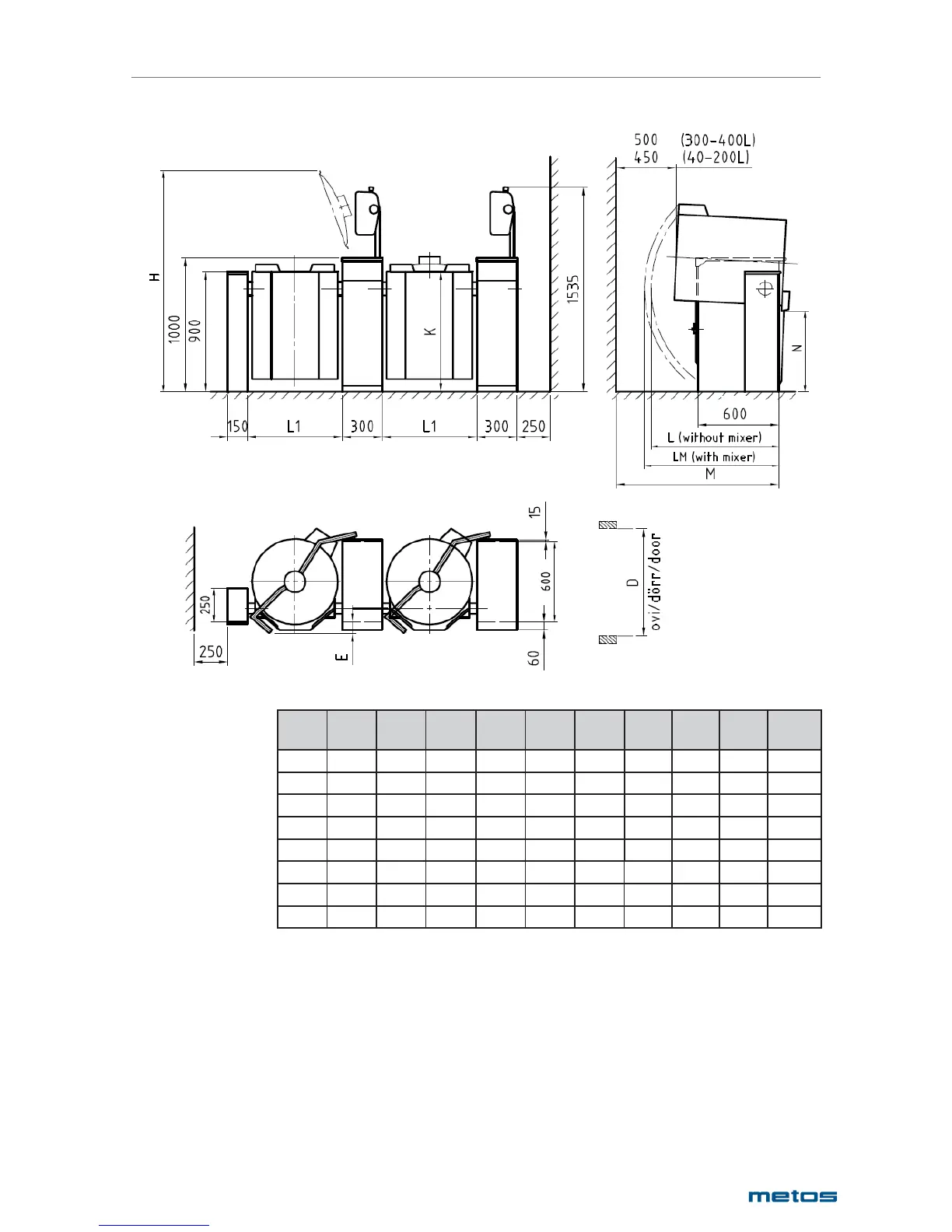

Installation
5.2.1. Dimensions
Model L1
(mm)
H
(mm)
K
(mm)
L
(mm)
LM
(mm)
M
(mm)
E
(mm)
D
(mm)
N
(mm)
Weight
(kg)
40E 597 1740 900 660 870 1055 100 800 600 215
60E 597 1740 900 755 955 1180 100 800 600 225
80E 704 1745 900 860 1010 1235 85 800 600 245
100E 704 1745 900 860 1010 1235 85 800 600 280
150E 910 1945 900 960 1075 1170 110 1000 600 320
200E 910 1945 900 1035 1155 1285 110 1000 600 360
300E 1110 2110 900 1280 1280 1320 150 1200 600 430
400E 1110 2080 1050 1280 1280 1320 150 1200 600 490
The minimum free distance to any structure behind the kettle needed for tilting of the kettle is dimension
L or LM depending on model. However service access to the components under the kettle bowl requires
the bigger dimension M.
National and local regulations must be observed when installing the combikettle.
