52
|
PROVENO E
Rev. 1.2 (24.08.2016)
Installation

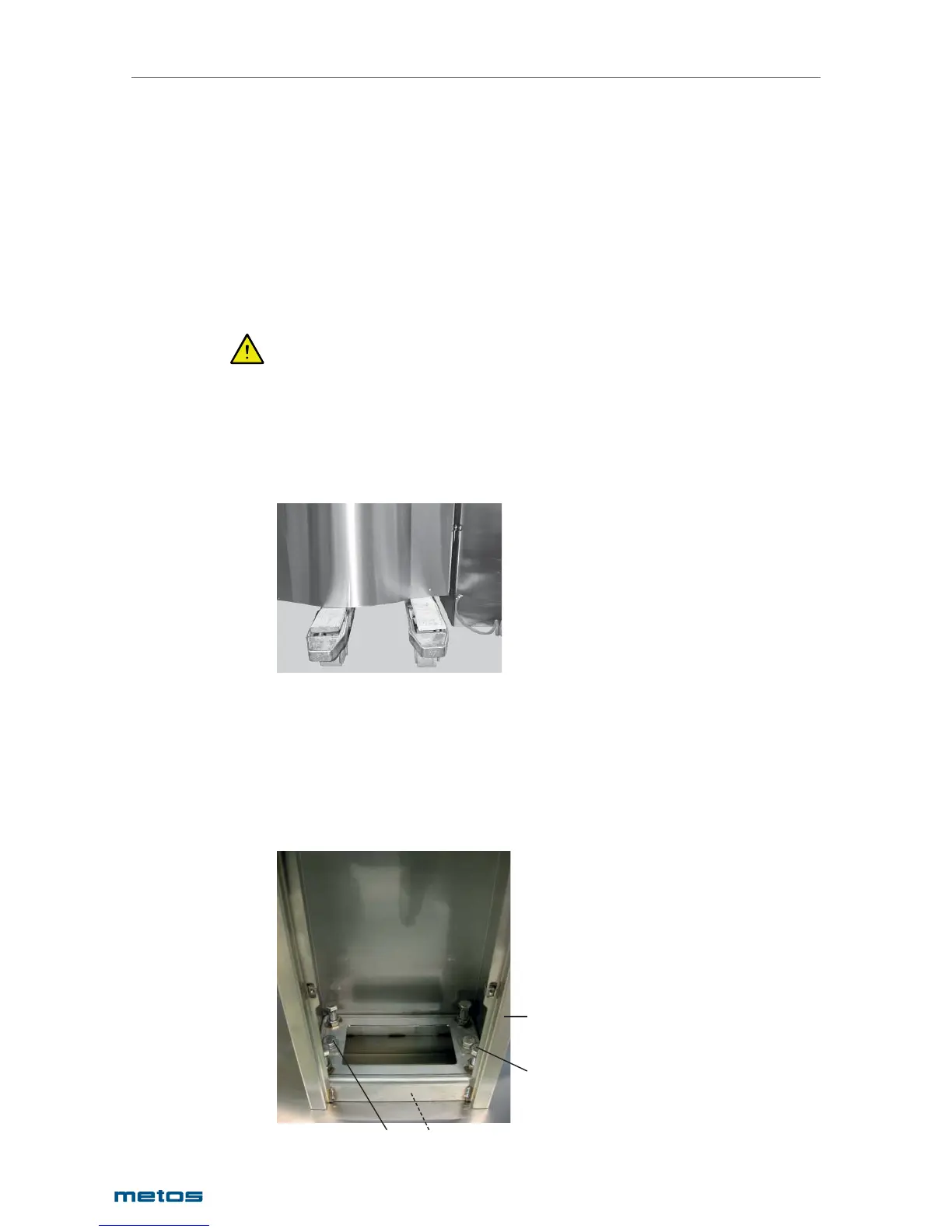

Mounting the support pillar
Start installing the combi-kettle or kettle group by fi rst positioning the left-hand support pillar in place. Lift
the support pillar (1) on the installation frame (2) and adjust it by means of the adjusting bolts (3) located
on the corners to a horizontal position and to a height of 900 mm measured from the top of the support
pillar front edge to the fl oor. When the support pillar (1) is in place, fi x it with two fi xing bolts (4) to the
installation frame (2).
5.2.6. Installing the combi-kettle on the frame
The front and rear cover plates of the kettle’s support and control pillar must be detached before installa-
tion. Each plate has been fi xed at its lower edge with two screws. After that, it is also possible to detach
the lead-through plate of supply cables and water pipes located at the lower rear edge of the control
panel by loosening four screws.
Installing the fi rst lefthand kettle or a single kettle
The kettle can be transferred from its transport pallet onto the installation frame in the following way.
Cut the longitudinal boards of the pallet and push the fork-lift trolley below the kettle.
Care must be taken that the lifting arms of the fork-lift trolley do not hit the parts protruding from the
kettle bottom, i.e. the mixing motor cover box (Proveno 40, 60, 80, 100) as well as the drain and discharge
pipes.
Furthermore, it is recommended to place e.g. plywood strips between the fork-lift trolley and the kettle
bottom. Before lifting, the transport support of the kettle’s left-hand axle and the support pillar are de-
tached from the transport pallet. It should be observed that the kettle pillars also moves. It is advisable to
put a piece of foamed plastic or a rolled cellular board between the kettle and control pillar so that they
do not hit each other.
1. Support pillar
2. Installation frame
3. Adjusting bolt
4. Fixing bolt
1
3
24
