53
PROVENO E
Rev. 1.2 (24.08.2016)
Installation

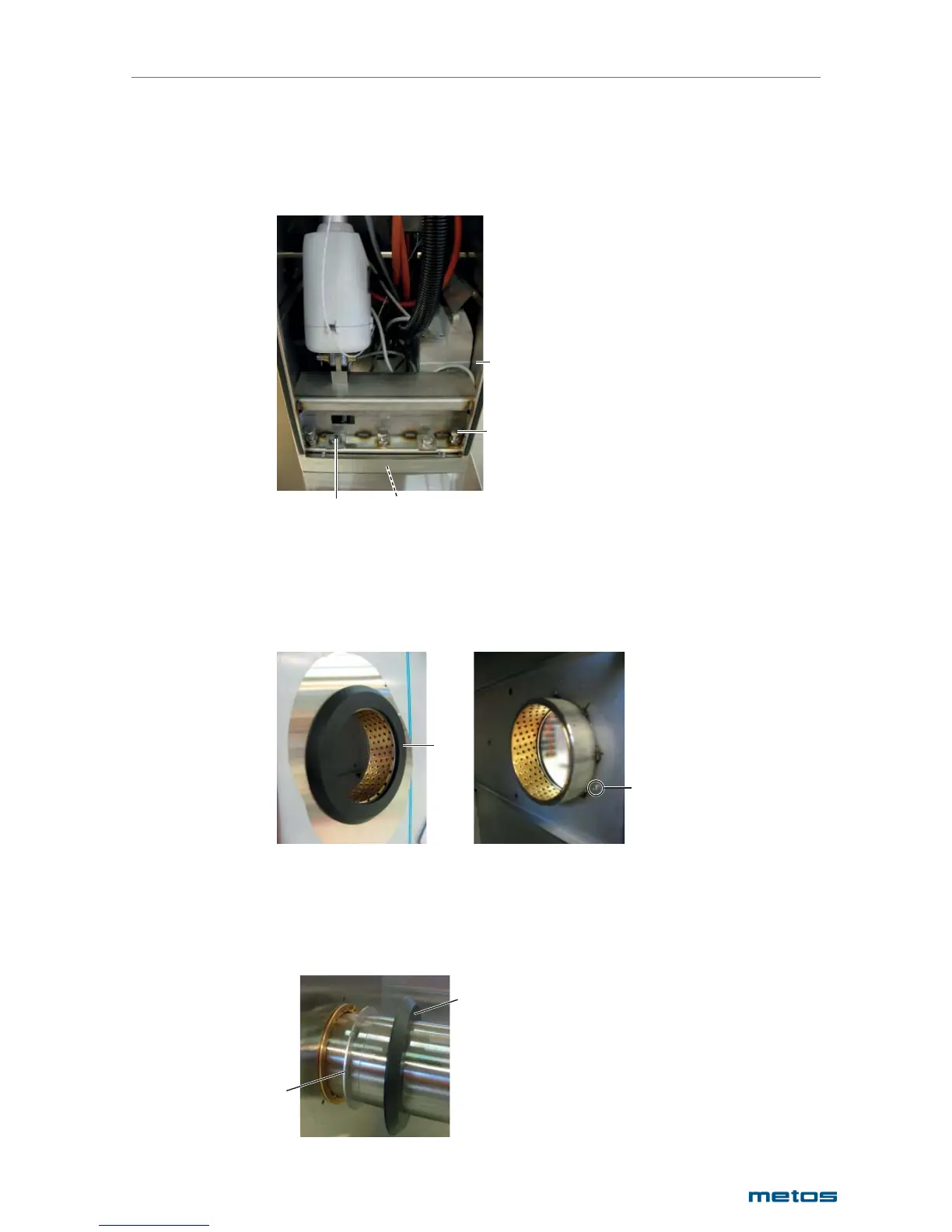

Next, the control pillar (1) is adjusted by means of the adjusting bolts (3), located on the corners, to a
horizontal position and on the same level with the support pillar. When the control pillar (1) is in position,
it is fi xed to the installation frame (2) with four fi xing bolts (4). Check that the space between the kettle
section and the support and control pillars is the same, both at the top and at the bottom.
1. Control pillar
2. Installation frame
3. Adjusting bolt
4. Fixing bolt
1
3
24
Installing the following kettle in a kettle group
If a kettle group is installed proceed as follows:
Remove the bearing cover plate (1) from the installed kettle control pillar before installing the next kettle
by removing the three fastening screws (2).
1
2
1. Bearing cover plate 2. Fastening screw
Check that grease is applied on the bearing surface before proceeding. If needed apply grease suitable
for use in foodservice areas to the bearing.
Push the removed bearing cover (1) and the stop ring (2)behind it onto the kettle axle before pushing the
axle into the bearing.
1
2
