Metos VIKING - Installation Frame Positioning

|
31
VIKING 4G E, S
Rev. 1.0 (29.1.2020)
Installation
6.4. Installation frames

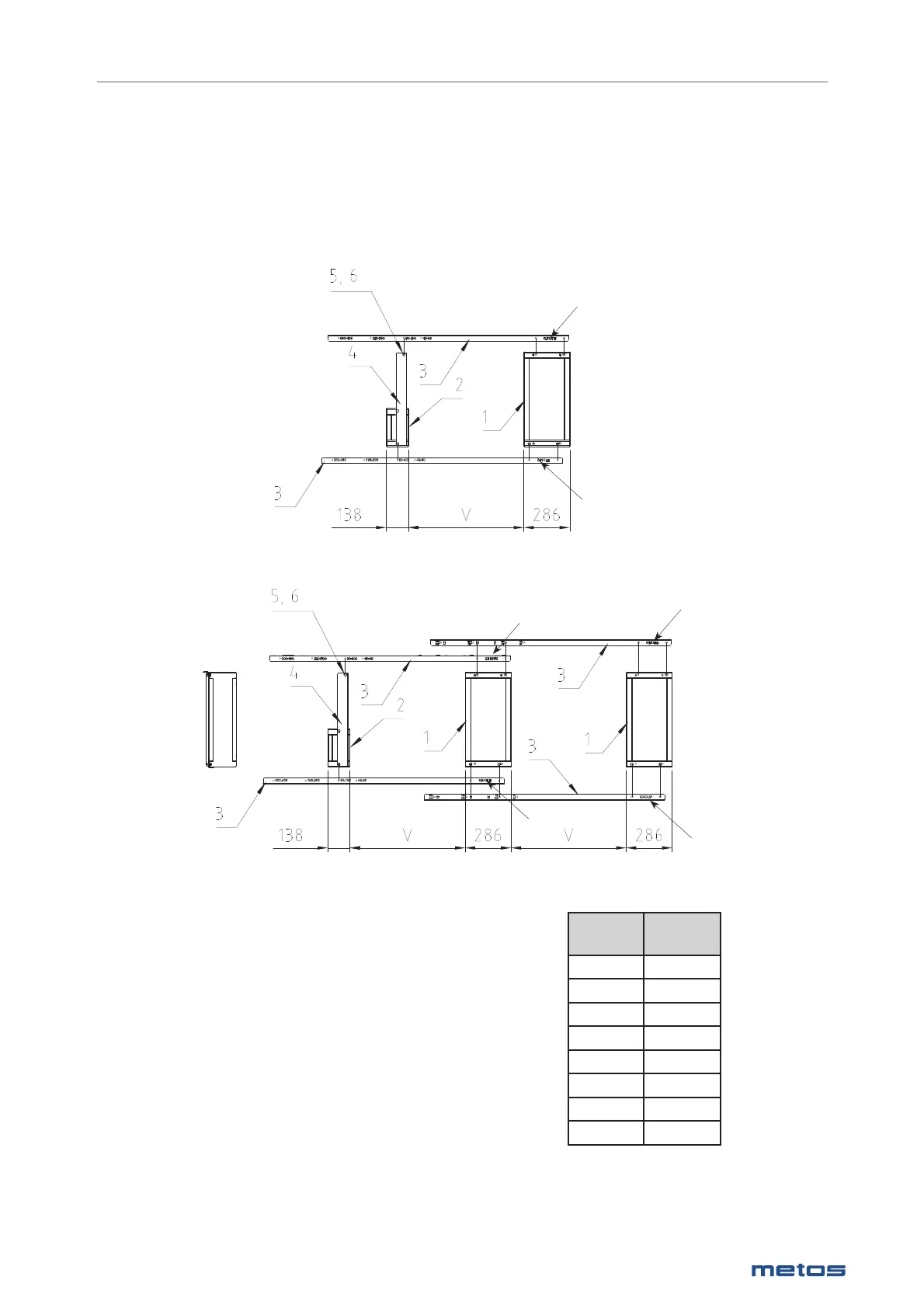

6.4.1. Positioning of installation frames
Single kettle
Model V
(mm)
40E, S 608
60E, S 608
80E, S 718
100E, S 718
150E, S 924
200E, S 924
300E, S 1124
400E, S 1124
Installation frames
MG4224000 Surface installation
MG4224002 Sub-surface installation
MG4224004 Group installation, surface
MG4224006 Group installation, sub-surface
Kettle group
SINGLE
SINGLE
GROUP
GROUP
SINGLE
SINGLE
1. Control pillar frame
2. Support pillar frame
3. Installation guide : 3917669
4. Spacer guide: 3917668
5. Hex bolt M10x20
6. Hex nut M10
