48
|
VIKING 4G E, S
Rev. 1.0 (29.1.2020)
Installation
6.9. Ventilation
The heat and steam load of the kettle must be taken into account in the kitchen’s ventilation plan. A ven-
tilation hood must be installed above the kettle, because plenty of steam is released when the kettle lid
is opened. When dimensioning the ventilation hood, the space requirement for opening the lid must be
taken into account (see installation drawing).
6.10. Other installations
In case the kettle being installed is connected to a kitchen power management system the connection
points are shown in the electric wiring diagram.
6.11. Procedures after installation
6.11.1. Adjusting the tilting
Before refi tting the cover plates on the kettle control panel, you have to check and, when needed, adjust
the operation of tilting.
On hydraulically tilted 200, 300 and 400 kettles the rotation direction of the hydraulic pump has to be
checked according to “Electrical connections”
Next you have to ensure that the kettle is horizontal when it is in the cooking position. Before that make
sure that the kettle’s control pillar has been installed horizontally. Checking is done as follows:
• First tilt the kettle at least half-way and after that press the tilting reverse button as long as the kettle
stops in the cooking position.
• Check that the is kettle horizontal by the upper rim of the kettle.
If the kettle is not horizontal, the position of the mounting plate of the tilting limit switches must be
adjusted as follows:
• Tilt the kettle at least half-way.
• Loosen the locking nut for adjustment (5) and the fi xing nut for the limit switch plate (6) so that the
limit switch plate (1) can be moved, but after moving stays in the new point.
• If the kettle in its cooking position is tilted too much towards the spout, turn the limit switch plate (1)
slightly downwards. In case the kettle in its cooking position is tilted too much backwards, turn the
limit switch plate (1) slightly upwards
• Tighten the locking nut (5) slightly after adjustment, press the tilting reverse button until the kettle
tilting stops and check the kettle’s horizontal again by the upper rim of the kettle.
• Tighten both the fi xing nut (6) and the locking nut (5), if the kettle is horizontal in its cooking position.
Otherwise, repeat the adjustment measures.

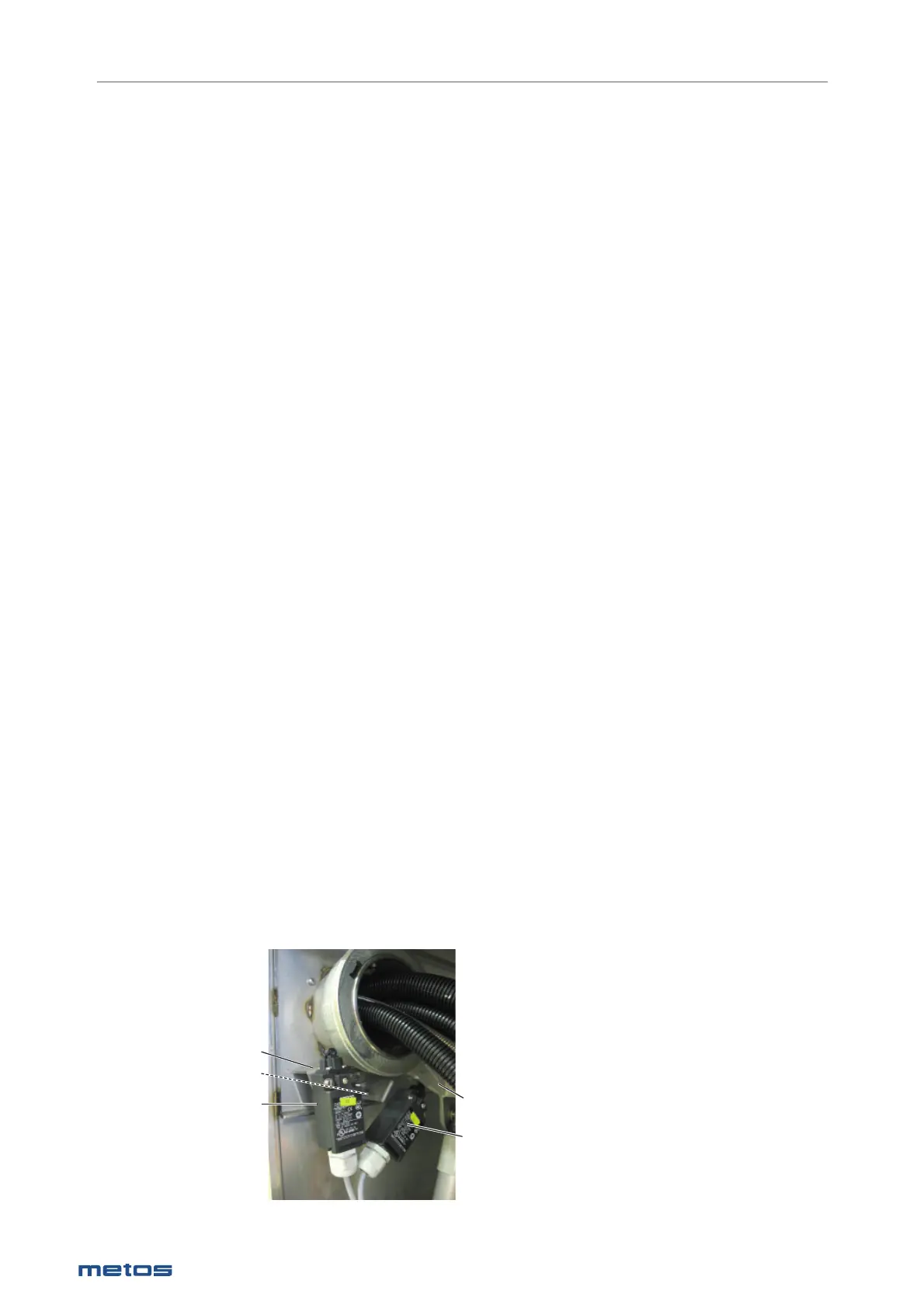

4
3
1
5
2
1. Tilting lever
2. Mounting plate of limit switches
3. Limit switch for cooking position
4. Limit switch of tilting end position
5. Locking nut for adjustment
