Metos VIKING - Installation on Frames

34
|
VIKING 4G E, S
Rev. 1.0 (29.1.2020)
Installation

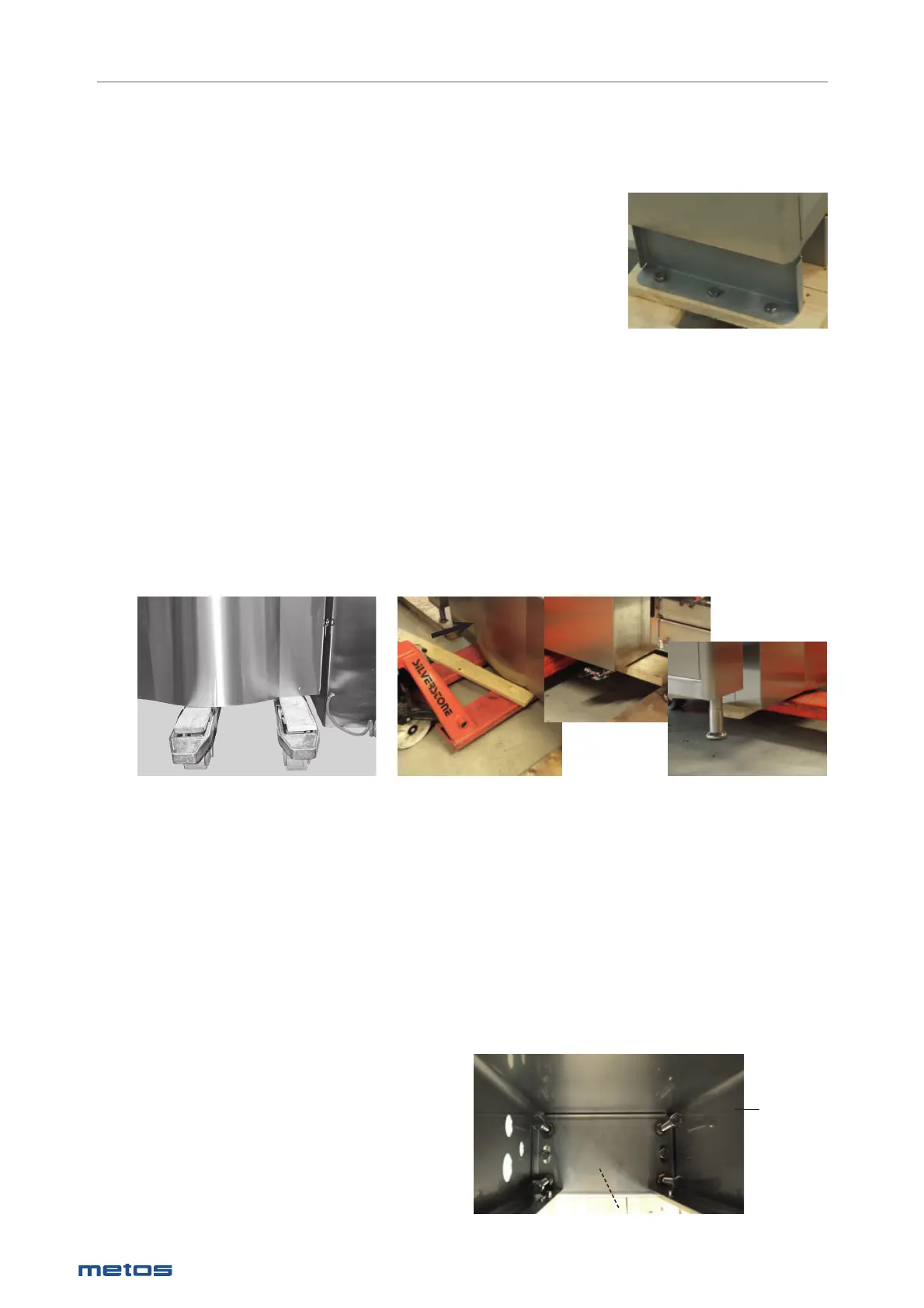

6.5. Installation on frames
Installing the fi rst left hand kettle or a single kettle
The kettles are delivered attached to a pallet with transport brackets.
1. Support pillar (from above)
2. Installation frame
3. Adjusting bolt
4. Fixing bolt
• Lift the forklift trolley so that it supports the kettle preventing it from tipping over when the transport
brackets are removed.
• Remove the kettle from the transport brackets by loosening the bolts.
• Lift the kettle off the pallet.
• Move the kettle with the forklift onto the installation frame
• Start installing the kettle or kettle group by fi rst positioning the left-hand support pillar in place. Lift
the support pillar (1) on the installation frame (2) and adjust it by means of the adjusting bolts (3) to a
horizontal position and to a height of 900 mm measured from the top of the support pillar front edge
to the fl oor. When the support pillar (1) is in place, fi x it with two fi xing bolts (4) to the installation
frame (2).
Viking 40, 60, 80, 100, 150 and 200 Viking 300 and 400
The front and rear cover plates of the kettle’s control pillar and
the side plates of the support pillar must be detached before
installation. Each plate has been fi xed at its lower edge with two
screws. After that, it is also possible to detach the lead-through
plate of supply cables and water pipes located at the lower rear
edge of the control panel by loosening four screws.
Move the kettle to the installation frame as follows:
• Cut the longitudinal boards of the pallet and push the fork-lift trolley below the kettle.
Care must be taken that the lifting arms of the fork-lift trolley do not hit the parts protruding from the
kettle bottom, i.e. the mixing motor cover box (40, 60, 80, 100, 150, 200) as well as the drain and dis-
charge pipes. Lift from the edges, NOT from the bottom plate
Furthermore, it is recommended to place e.g. plywood strips between the fork-lift trolley and the kettle
bottom. It should be observed that the kettle pillars also move. It is advisable to put a piece of foamed
plastic or a rolled cellular board between the kettle and the pillars so that they do not hit each other.
1
2
33
33
44
Front
Back
