VIKING 4G E, S
Rev. 1.0 (29.1.2020)

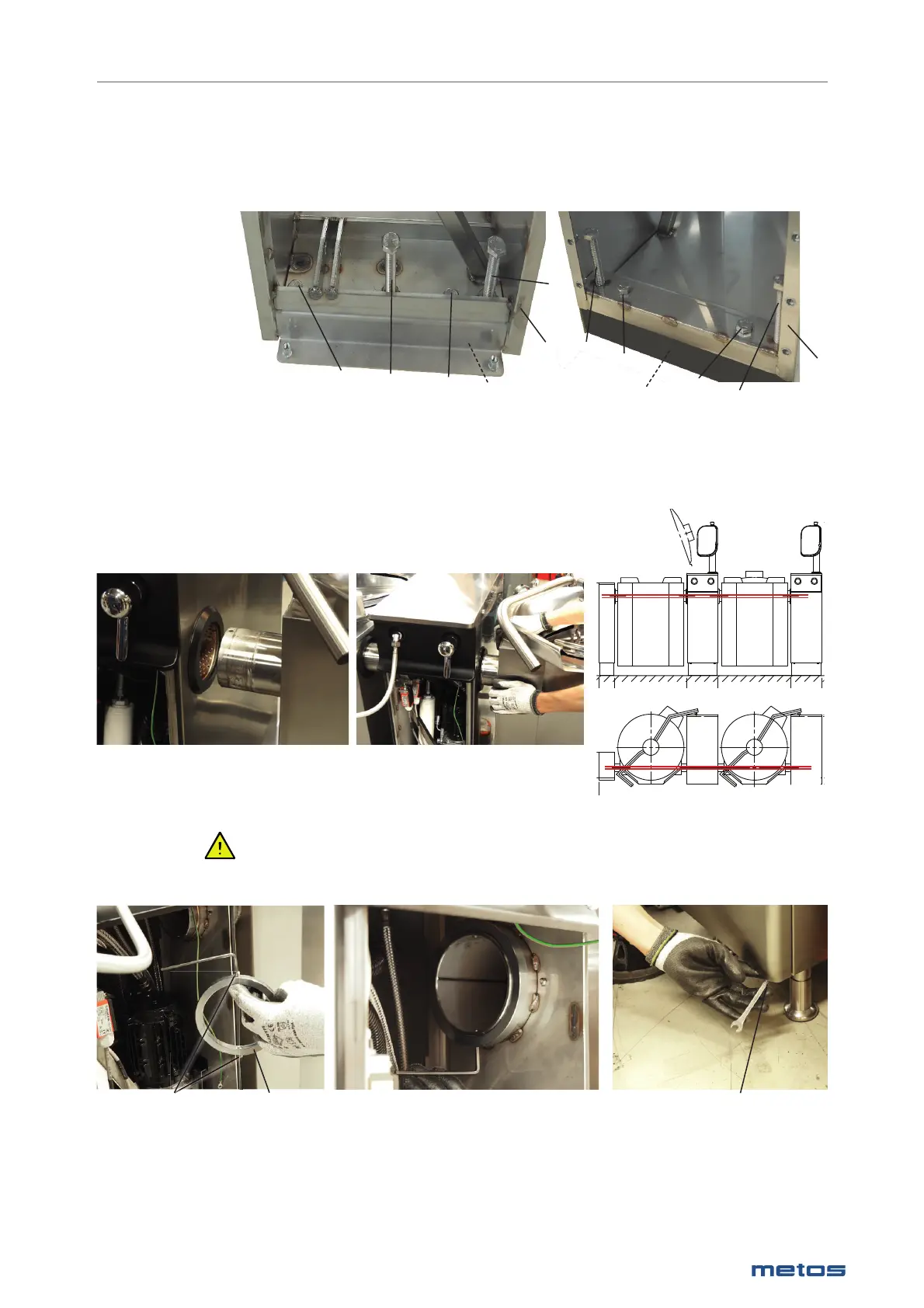

Installation
1a. Control pillar (front side)
1b. Control pillar (back side)
2. Installation frame
3. Adjusting bolt
4. Fixing bolt
1a
2
• Next, the control pillar (1) is adjusted by means of the adjusting bolts (3), to a horizontal position and
on the same level with the support pillar. When the control pillar (1) is in position, it is fi xed to the
installation frame (2) with four fi xing bolts (4). Check that the space between the kettle section and
the support and control pillars is the same, both at the top and at the bottom.
Installing the following kettle in a kettle group
If a kettle group is installed proceed as follows:
• Align the two kettles at the same height and move them
together.
• Push the axle into the bearing. Apply grease if needed.
Make sure that the axles of the kettles align, both horizon-
tally and sideways. Adjust if needed with the adjusting bolts.
• Mount the locking ring (1) and secure it with the two locking screws (2) (4 mm Allen key). After that
the cover plate of the kettles control pillar can be refi tted (3) (10 mm spanner).
12
3
1
1b
2
4
3
4
3
3
4
4
3
