Installation
6.11.2. Fastening the mixer motor cover box
On the large kettle models (150, 200, 300, 400), the cover box of the mixing motor comes unattached
inside the kettle. The cover box is fastened after installation by using the screws supplied while the kettle
is in a tilted position.
6.12. First run and testing
The following checks must be performed after the installation before taking the kettle into regular use.
6.12.1. Filling the steam generator (electrically heated models without cooling or autom. jacket
fi lling)
Before the kettle is switched on, the steam generator must be fi lled with water.
Do the following:
• Check that the kettle is in its upright position.

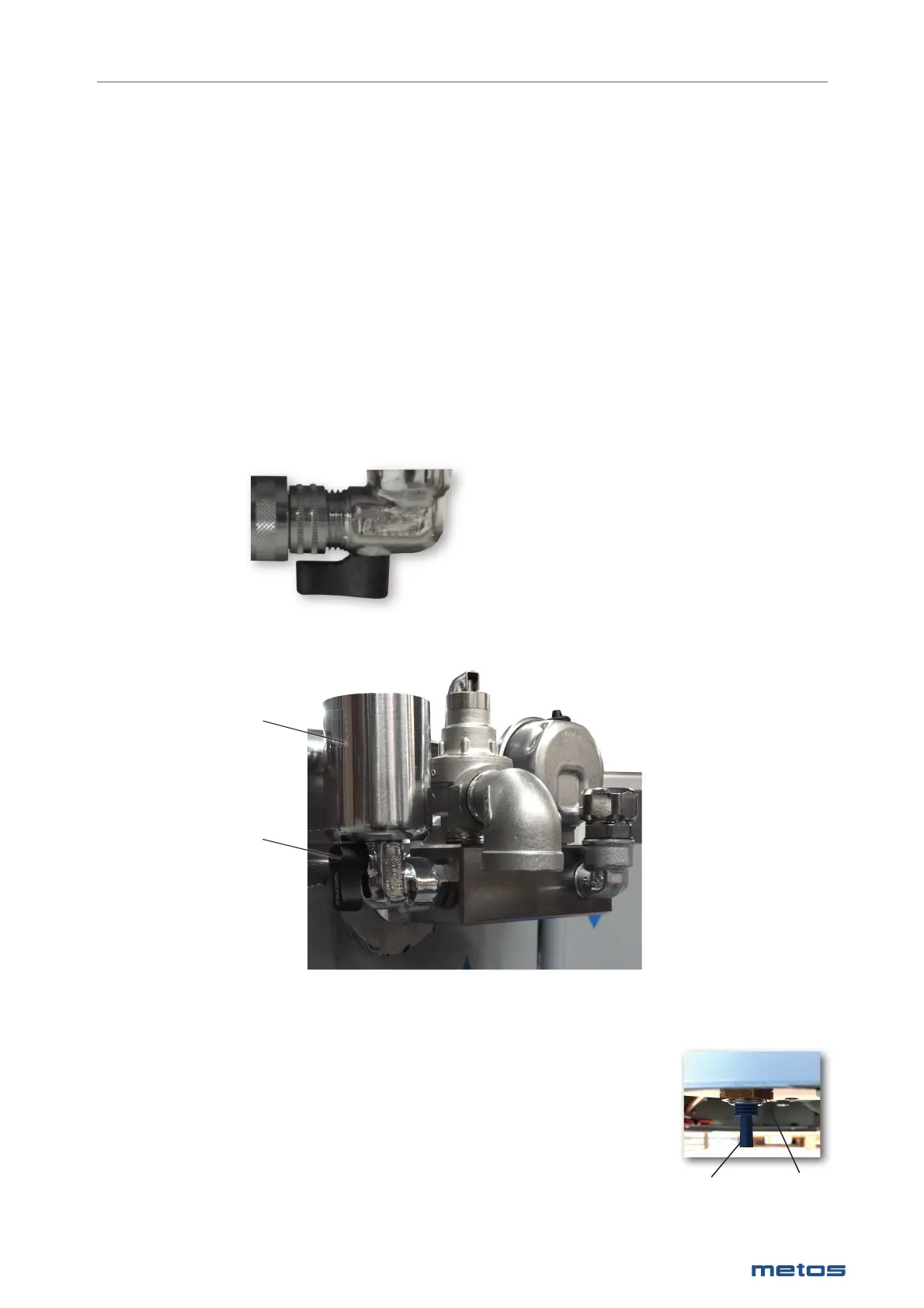

1. Control valve of steam generator
• Open the control valve by turning the handle lengthwise to the valve (see pic.).
1. Water inlet funnel
2. Handle of the water inlet valve
• Open the water inlet valve, which is under the water inlet funnel, by
turning the handle parallel to the valve.
• Plug the air elimination outlet with the provided plug.
• Let water into the water inlet funnel. Stop fi lling water when water
starts to drop out of the control valve.
• Close the water inlet valve. Close the control valve when water has
stopped running out of it. Now the steam generator is fi lled up to
the maximum level.
• Remove the plug from the air elimination outlet
1.
C
1
2
Plug
Air elimination
outlet
