VIKING 4G E, S
Rev. 1.0 (29.1.2020)
Installation

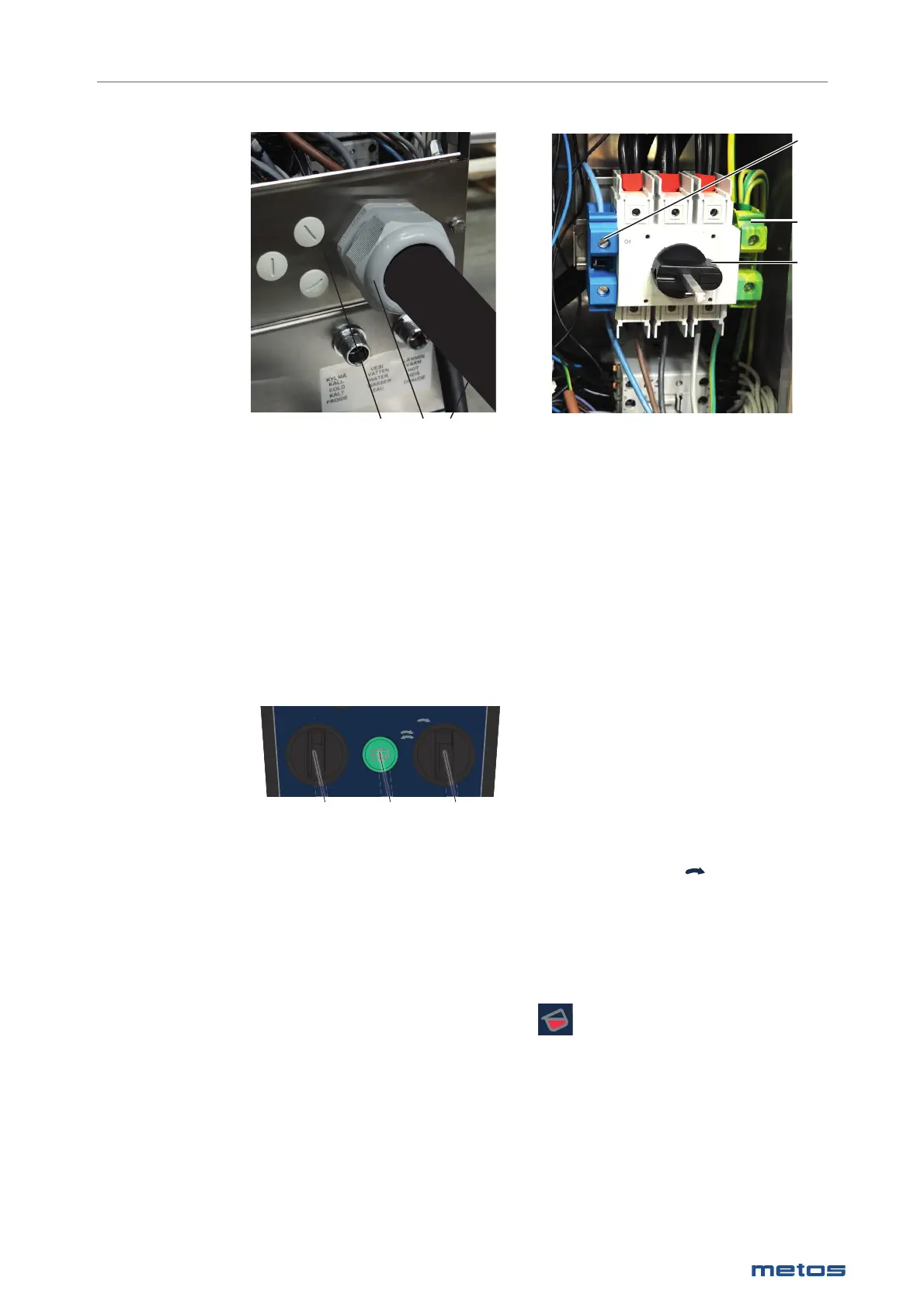

1. Supply cable
2. Lead-through plate
3. Cable bushing
4. Mains switch
5. PE terminal
6. N terminal
Detach the lead-through plate (2) from the pillar. Slip the supply cable (1) through the cable bushing (3)
of the lead-through plate. Connect the phase wires of the cable to the mains switch (4) and PE and N
cables (5, 6) to the terminal blocks.
After that, check phase order to make sure that the mixer and tilting motors rotate in the correct direction.
123
4
6
5
P1
15
0
40
60
80
100
120
P2
0
12 3
• Close the lid and safety grid of the combi-kettle, but do not put the cover of the safety grid on.
• Turn the mains switch to position 1.
• Start the mixer my turning the mixer program selector svitch (1) to position
and the mixing speed
regulator (2) to position 15
• The mixer should rotate clockwise.
• Stop the mixer by turning the mixer program selector switch (1) to position 0.
On hydraulically tilted kettles (200, 300 & 400 combi-kettles and basic kettles 300 & 400), you also have
to check the rotation direction of the hydraulic pump motor.
• Open the kettle lid and tilt the kettle by pressing
.
If the motor is running but the kettle does not tilt after pressing the button for moment the rotation direc-
tion is wrong.
If the rotation direction in two foregoing points is wrong, two phases of the supply cable coming to the
mains switch have to be exchanged.
Tighten the screws of the cable connections and the cable bushing properly, refi t the lead through plate
and the rear cover plate.
