99-2003 DASH DISASSEMBLY
25
CHEVROLET • Venture 2000
OLDSMOBILE • Silhouette 2000
PONTIAC • Montana 2000

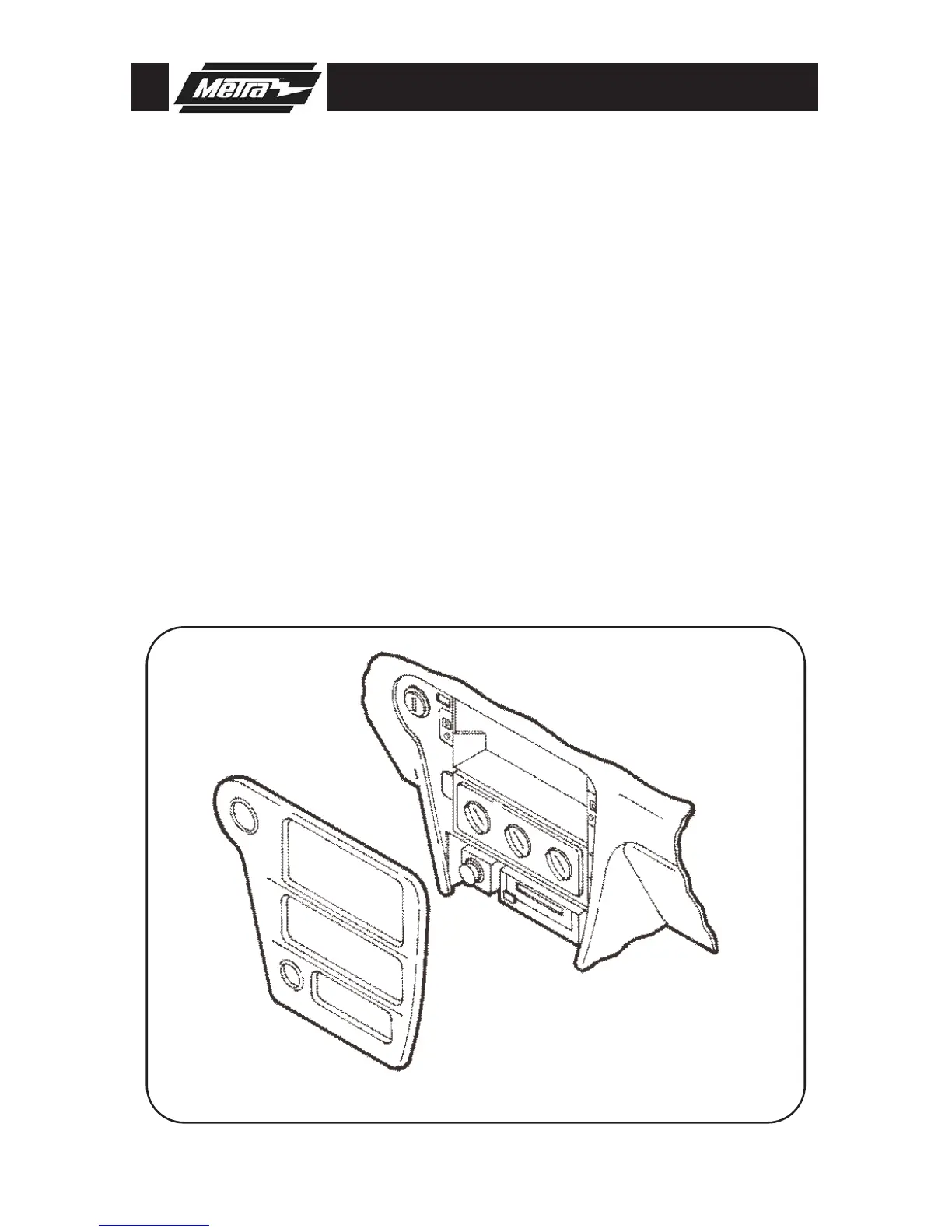

1. Remove the ashtray and (1) Phillips screw exposed in the ashtray cavity.
2. Remove (1) Phillips screw from the cigarette lighter compartment.
3. Remove (3) 9/32" hex-head screws securing the factory head unit and dis-
connect the wiring.
4. See page 44 for all vehicle tab instructions.
Disconnect the negative battery terminal to prevent an accidental short circuit.
