99-2003 DASH DISASSEMBLY
44
GMC • Canyon 2004-
Disconnect the negative battery terminal to prevent an accidental short circuit.

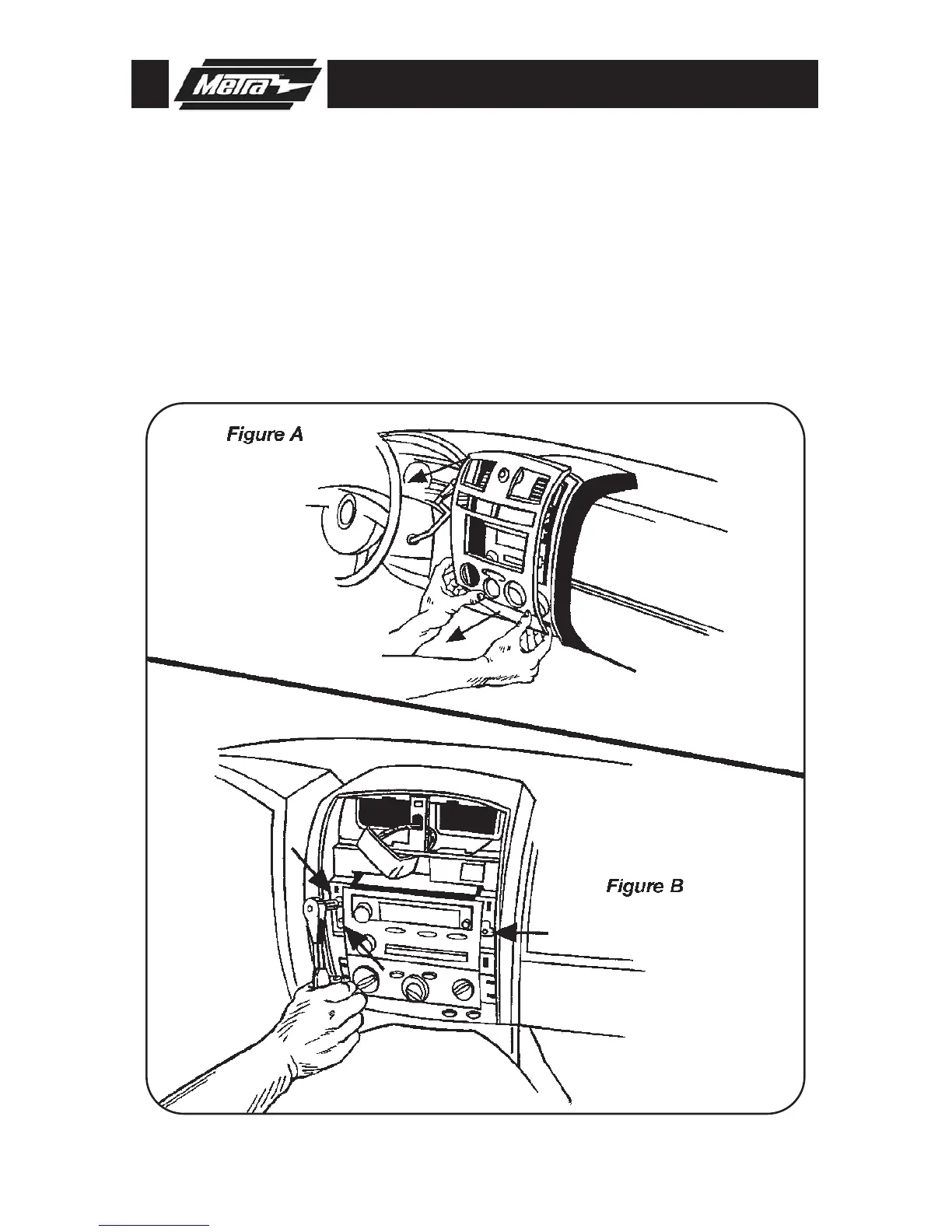

1. Unsnap and remove the entire panel surrounding the radio and A/C controls.
(Figure A)
2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)
