19.6. Setting function parameters
Some measurement functions have additional parameters. When measuring the temperature using RTD
sensors, R0 (resistance at 0 °C) can be set, when measuring the temperature using TC sensors, the
temperature of cold junction can be set and when measuring using SGS sensors, supply voltage of the bridge
can be set.
Original settings are listed below:
T RTD R0 = 100 Ω
T TC RJ =23 °C
SGS Voltage = 5 V
The parameters can be changed as follows:
• Press METER direct control button and select a function, then use cursor buttons to select the line which
includes the function parameter.
• Enter new value using numeric keyboard.
• Confirm the value by pressing ENTER.
• After setting the coefficients, use ∧ or ∨ cursor buttons to switch to the previous or next menu option. The
same can be achieved using the potentiometer after pressing the knob. Press EXIT display button the
close the range selection menu and to return to the basic display.
19.7. Start of measurement
To start a measurement:
• Press INPUT direct control button in the basic state of the calibrator.

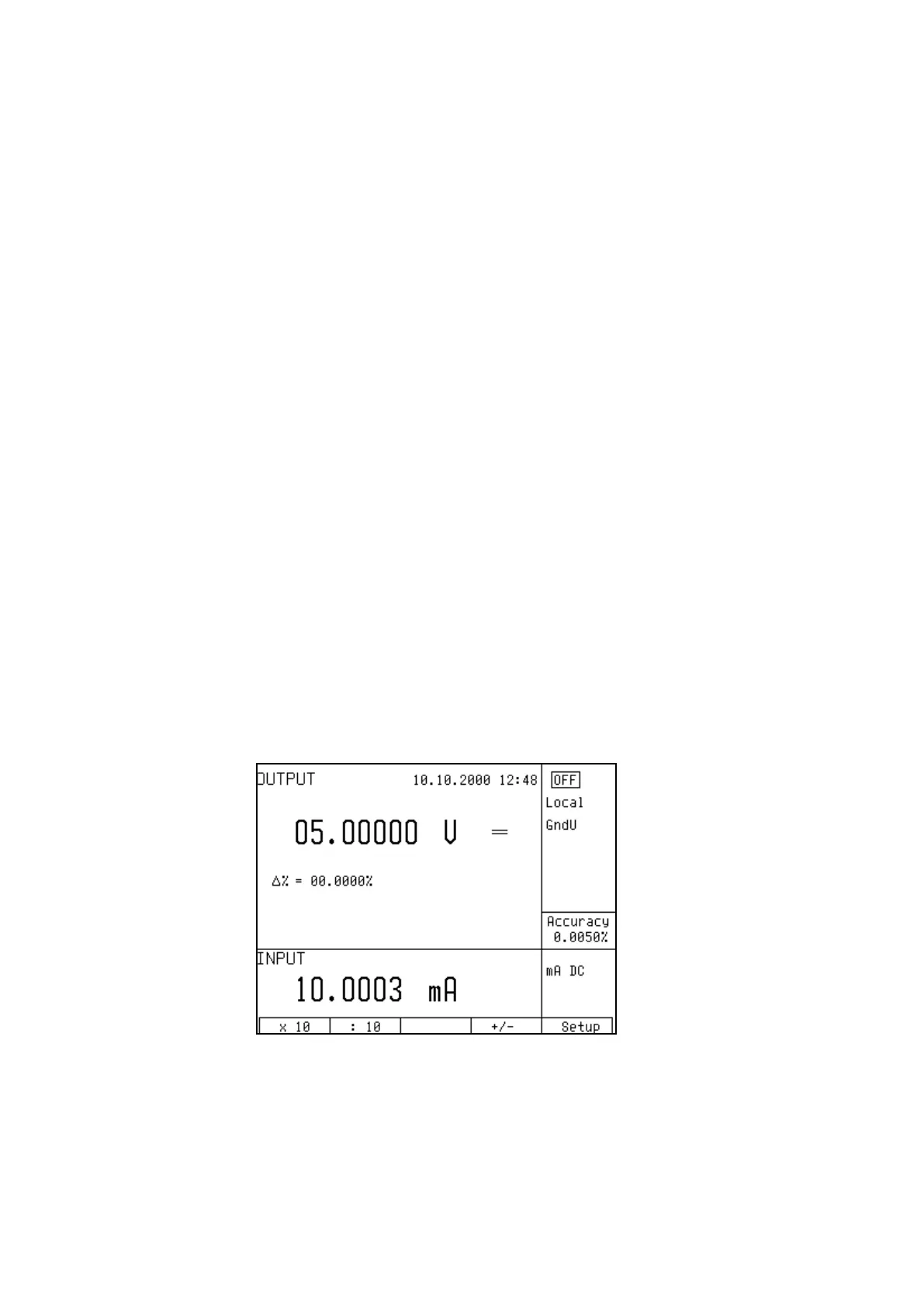

• INPUT field on the display shows the measured value. The measurement is indicated by a green LED
above the INPUT button.
• Press INPUT button again to stop the measurement. The LED goes off and the input connectors are
disconnected.
The multimeter does not display uncertainty of measuring. If the input range is exceeded, OVERFLOW
message is displayed.
140-41 Cable adapter must be used to connect the signal.
