20. TESTER
The calibrator includes an application SW, which facilitates automated testing of regulators and transducers.
Tester function combines the use of the calibrator as the source of precision signal with automatic change of
output signal, while the response of the unit being tested is measured by the calibrator’s built-in multimeter.
The calibrator is capable of subsequent processing of measured values, providing PASS/FAIL indication.
Tester function comprises of performance of a programmed sequence of up to 10 steps. For each step, the
type and value of output signal and the type and tolerance of input signal can be defined. If the input signal is
not within the tolerance limit, the respective step of the test program is considered failed. The time between
individual steps can be set as well.
20.1. Basic menu
• Press SETUP display button to enter the Tester mode. After the button is pressed, the bottom line of the
display shows TESTER option. Press the respective display button to open the menu of test programs.

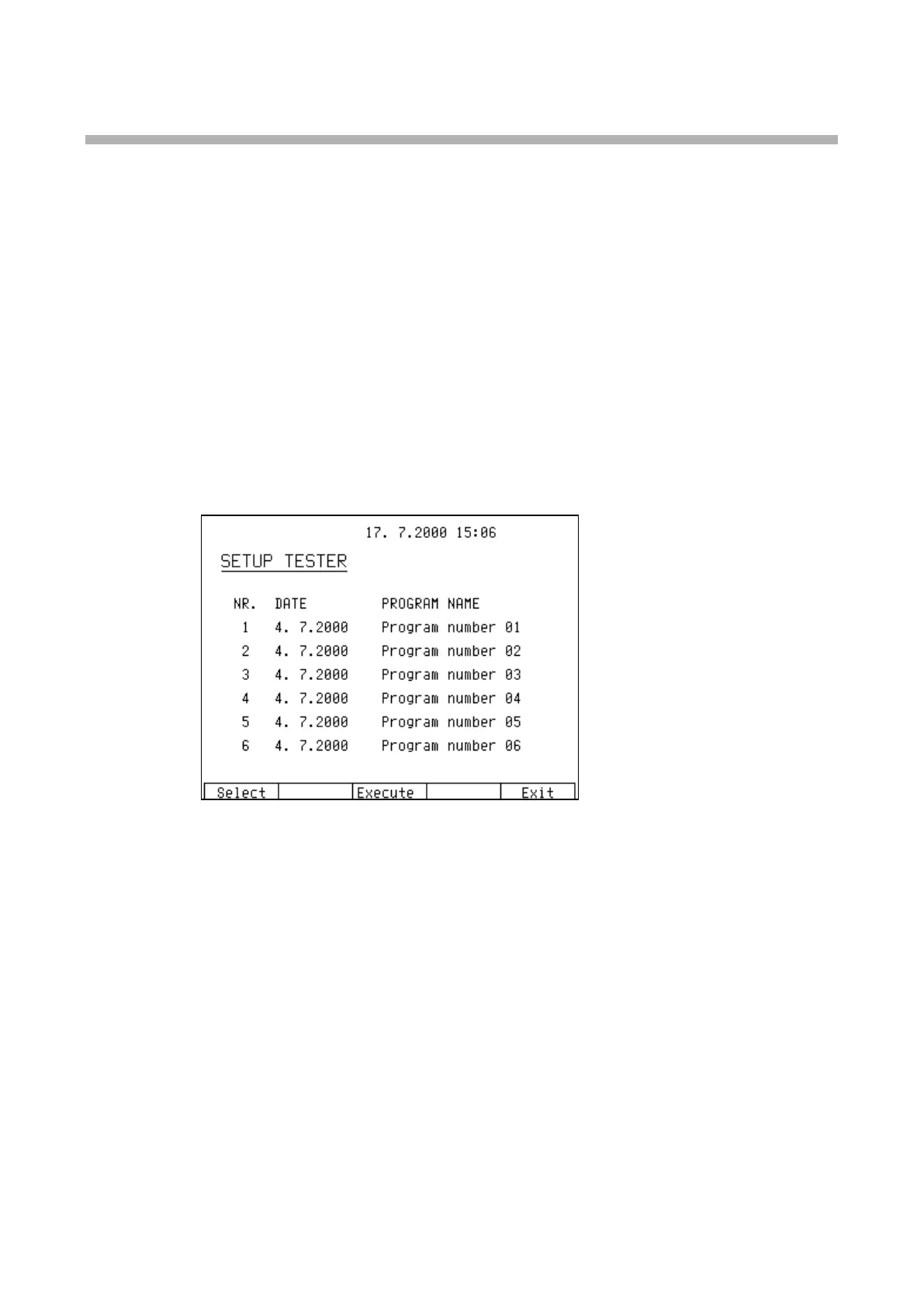

• The menu includes a sequence number of the test program, date of creation and program name.
• Use the cursor buttons or the knob of the potentiometer to select the desired test program. Press
EXECUTE display button to execute the program or SELECT to edit the program.
20.2. Execution of test program
After EXECUTE display button is pressed to execute the test program, the calibrator displays a screen with
set parameters of output signal and set configuration of the multimeter. The calibrator displays PROGRAM
NUMBER and STEP information above the main output data when the test program runs. PROGRAM
NUMBER xx, where xx can be 00 to 09, designates the test program which currently runs. STEP (max. 10)
designates current step of the program.
