18.8. Frequency (F)

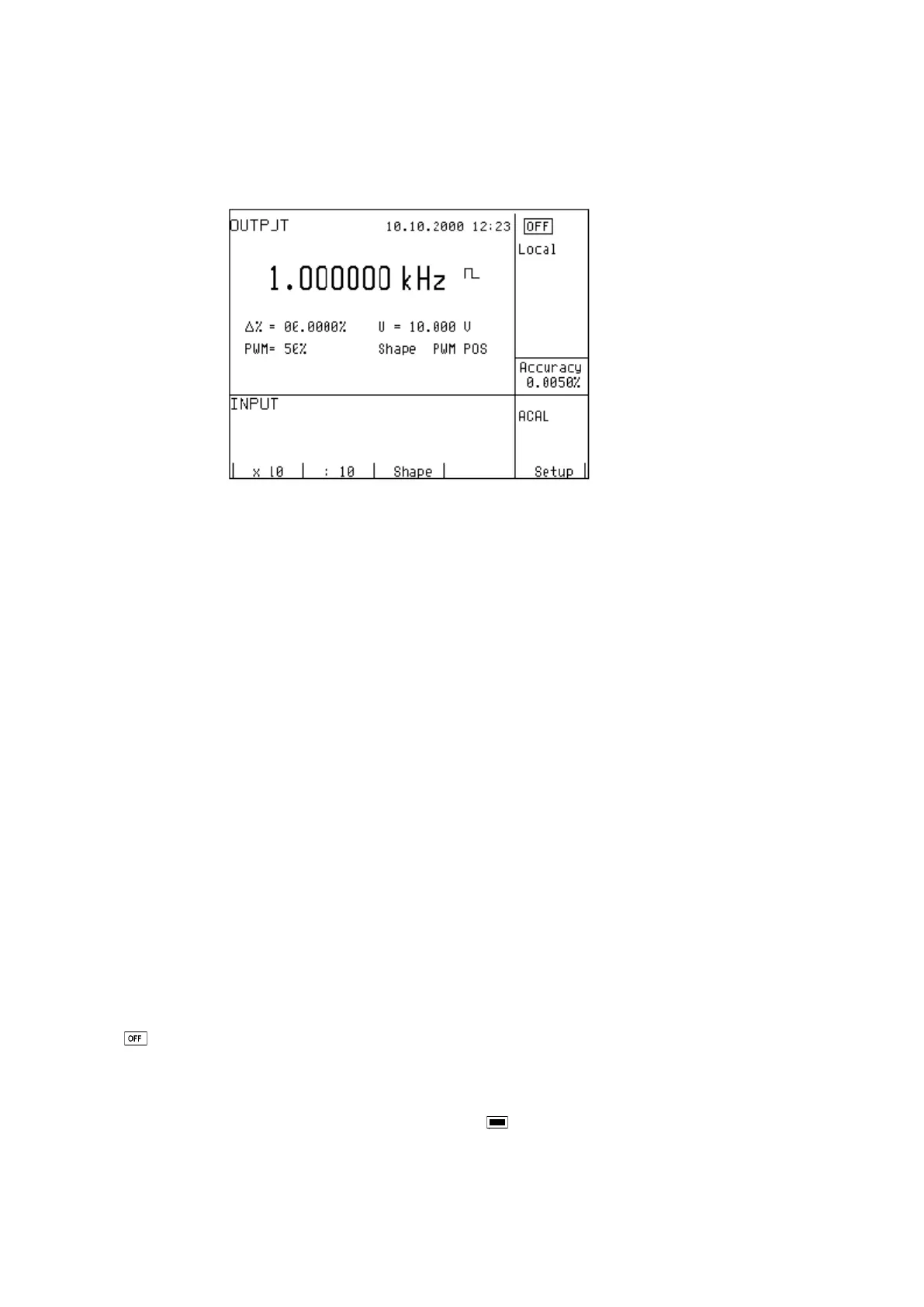

Set value of frequency is the main data on the display and the main parameter of the signal. Main data can be
set by direct entry using the numeric keyboard, potentiometer or by changing the digit at the current cursor
position. The setting procedure is described in the “Setting the value of output signal”.
If frequency larger or smaller than the calibrator’s range is entered, the calibrator displays an error message:
„Value is too large (small)“.
18.9. Generation of calibrated voltage
The multifunction calibrator provides calibrated DC and AC voltage. Output terminals for voltage ranges are
labeled “ Hi “ and “ Lo “ at the front panel. Depending on the setting of the calibrator, voltage up to 1000 Vef
can be present at the terminals .
DC voltage range is 0 to 1000 V.
AC voltage range is 100 µV to 1000 V.
Output voltage up to 20 V is available at AUXILIARY connector. It can be used only with cable adapter Opt.
140-41.
18.9.1. Control in the voltage mode
• Press “U” button on the calibrator and then select AC or DC mode by pressing “DC-AC” button. The display
shows the following data:
* main data of set voltage
* relative deviation
* uncertainty of output voltage
* frequency (when AC voltage is generated)
* total value of output voltage when non-zero relative deviation is set
• Set the desired value of voltage, including polarity when necessary, frequency and relative deviation.
The signal is yet not connected to the output terminals. The information section of the display shows the
symbol which informs about the disconnection of output terminals.
• Press OUTPUT button.
• Red LED is lit above the OUTPUT terminals to signal the connection of the signal to the output terminals;
the information section of the display shows the
symbol .
• Calibrated voltage corresponding to set parameters is present at the output terminals.
