2 Overview of the instrument
874 Oven Sample Processor
￭￭￭￭￭￭￭￭
9
7
Rod holder
With knurled screw.
8
Guide head
9
Working head
10
Distributor
11
Gas outlet
With M6 thread.
12
Air pump inlet
For the 6.2724.010 dust filter.
13
Heating tubing connector
14
Lift
15
Support rod (6.2016.030)
For fixing the titration cell.
16
Beaker sensor
17
Oven module
With PTFE covering.
18
Oven housing
With ventilation slits.

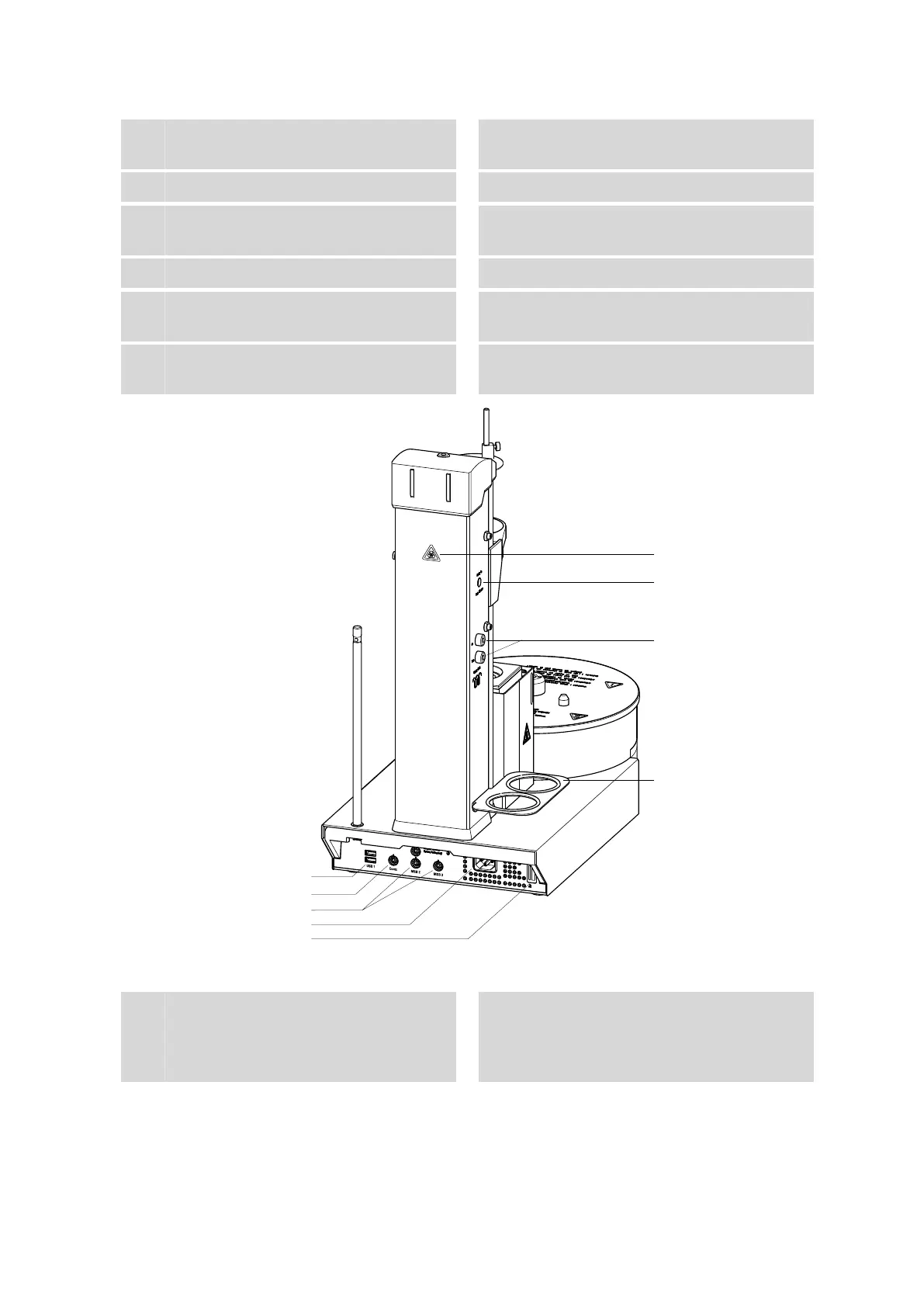

Figure 2 874 Oven Sample Processor rear
1
USB connector (USB 1 and USB 2)
USB ports (type A) for connecting a printer,
USB hub, Titrandos, additional USB devices
etc.
2
Controller connector
For connecting a computer with installed
computer software.
