Metrohm 874 - Figure 3 Sample Rack 6.2041.720

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10
￭￭￭￭￭￭￭￭
874 Oven Sample Processor
3
MSB connector (MSB 1 to MSB 3)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
4
Power socket
5
Type plate
Contains specifications concerning supply
voltage, instrument type and serial number.
6
Warning symbol
Biological hazard, (see chapter 1.3.4, page
5)
7
Air/nitrogen connector
With M6 inner thread. Inlet for external gas-
sing.
8
Gas inlet and outlet
For connecting drying flasks, with M6 inner
thread.
9
Drying flask holder
1
2
3

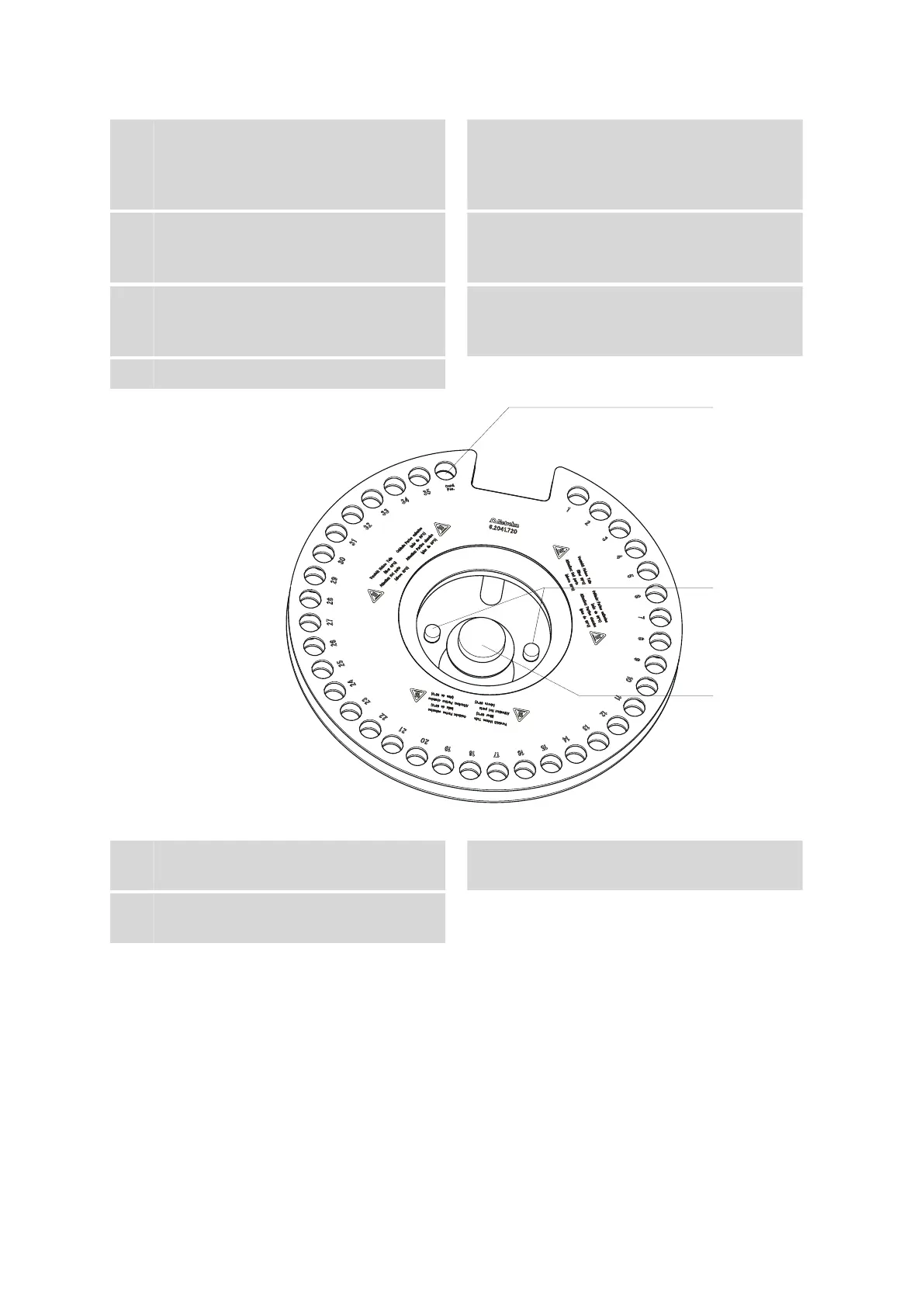

Figure 3 Sample rack 6.2041.720
1
Conditioning position
For the conditioning vessel.
2
Guide bolts
3
Handle
With fixing screw.
