3.7 Mounting the dust filter
The installed air pump must be protected from dust. A 6.2724.010 dust
filter must be placed on the air inlet (Inlet filter) on the right-hand side
of the tower for this reason.

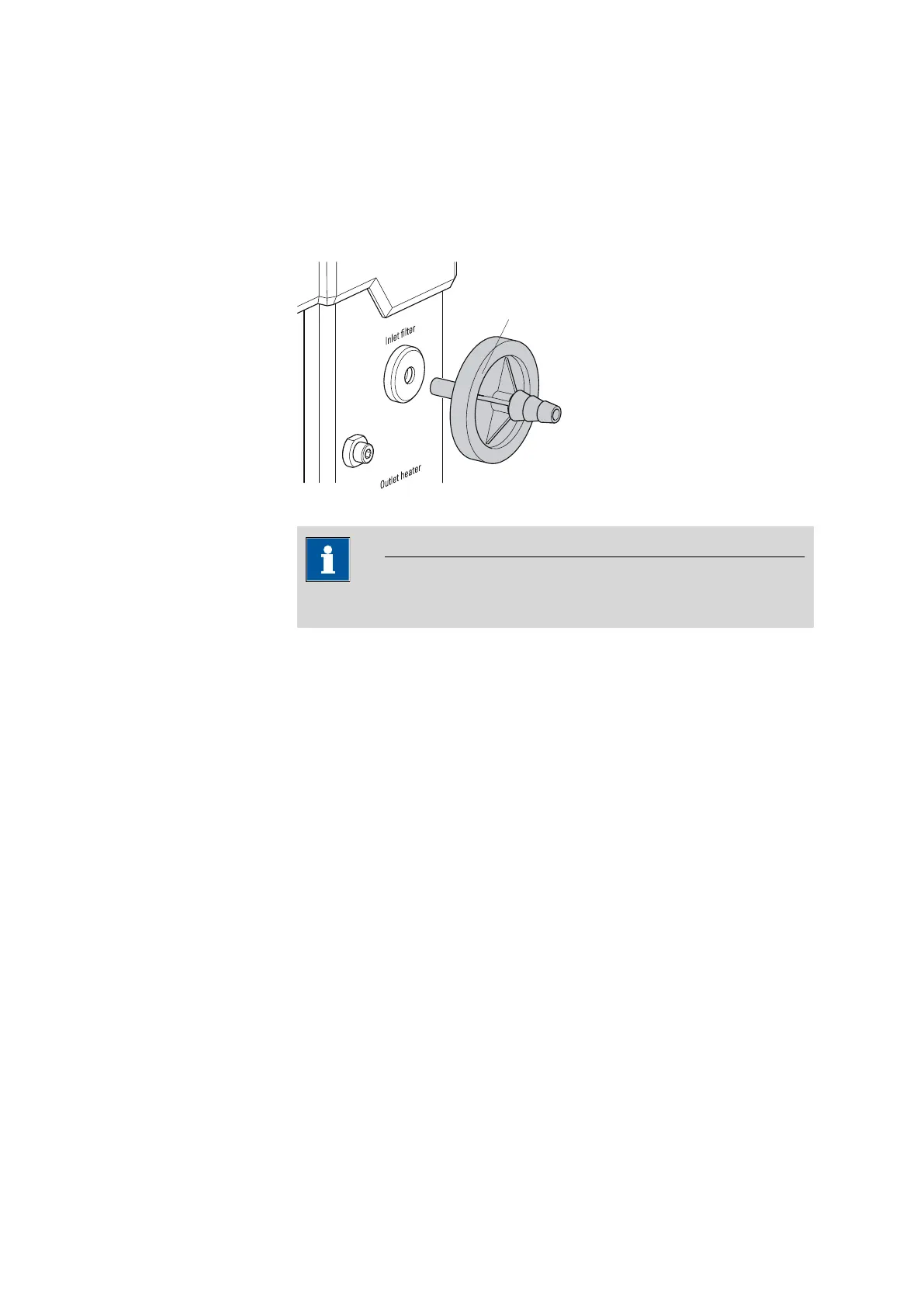

Figure 10 Mounting the dust filter
NOTICE
The dust filter should be replaced once a year.
3.8 Mounting the air/nitrogen connector
If compressed air, nitrogen or another gas is to be used for transferring
the expelled moisture, then a separate connector is available.
A tube with M6 thread can be connected directly to the connector Air/N
2
in on the left-hand side of the tower. Enclosed with the instrument is the
6.1808.040 M6/M8 thread adapter for a tubing with an M8 thread.
The 6.1808.050 tubing adapter olive can additionally be put in place
in order to connect a simple tubing.
