Metrohm 874 - Component Mounting

3.3 Mounting the sample holder
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12
￭￭￭￭￭￭￭￭
874 Oven Sample Processor
Connecting the power cord
Accessories Power cord with the following specifications:
￭ Length: max. 2 m
￭ Number of cores: 3, with protective conductor
￭ Instrument plug: IEC 60320 type C13
￭ Conductor cross-section 3x min. 0.75 mm
2
/ 18 AWG
￭ Power plug:
– according to customer requirement (6.2122.XX0)
– min. 10 A
NOTICE
Do not use a not permitted power cord!
1
Plugging in the power cord
￭ Plug the power cord into the instrument's power socket.
￭ Connect the power cord to the power grid.
3.3 Mounting the sample holder
The dimensions of the supplied sample holder are optimized for the use of
6.2419.007 6-mL sample vials by Metrohm . This ensures the best
possible transfer of heat between oven and sample.
1
2
3
6.2063.020
6.2627.010

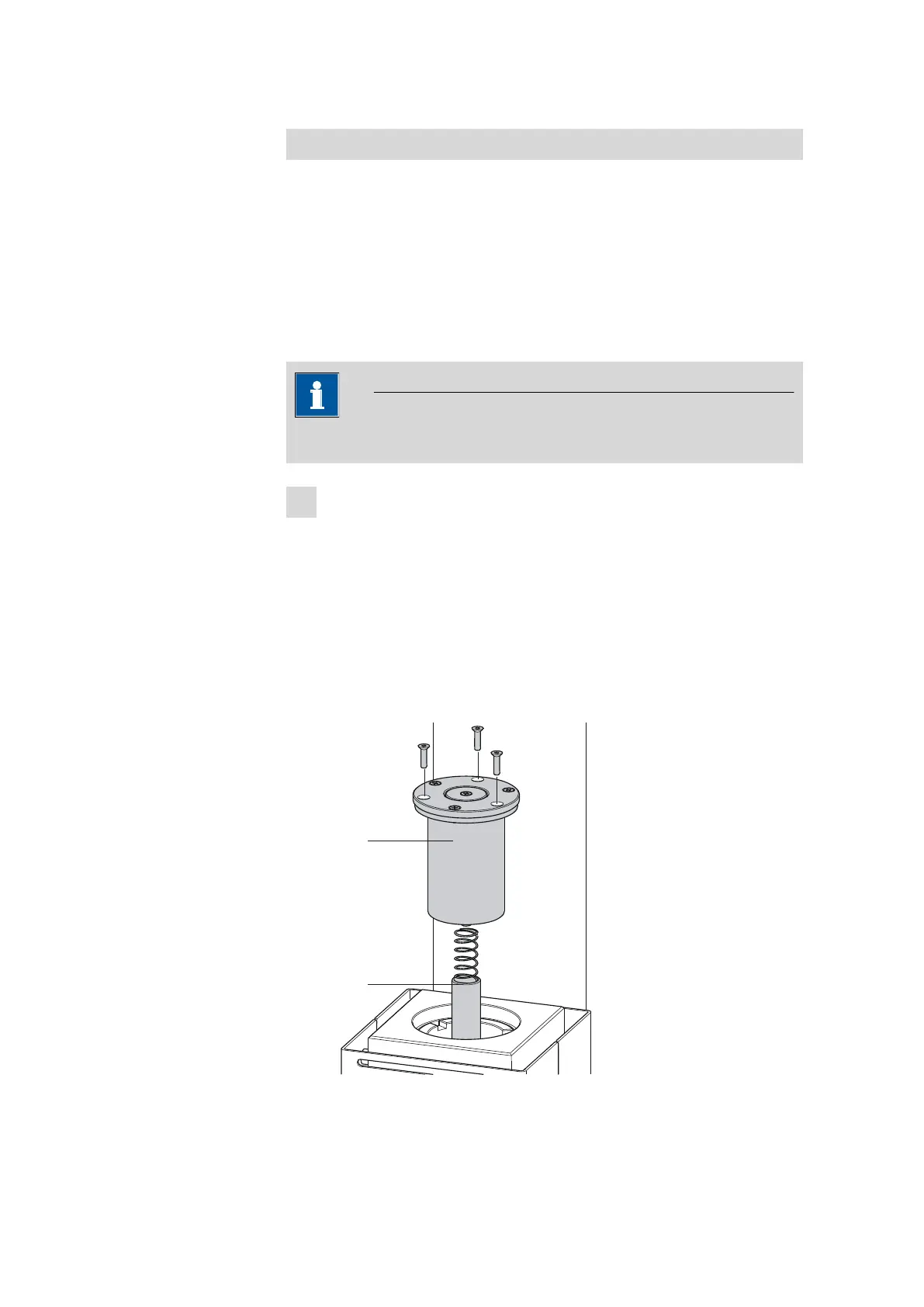

Figure 4 Mounting the sample holder
