Metrohm 874 - Mounting the Safety Shield; Figure 12 Mounting the Safety Shield

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
874 Oven Sample Processor
￭￭￭￭￭￭￭￭
21
3.9 Mounting the safety shield
6.2751.140
1
1
2
2
3
3

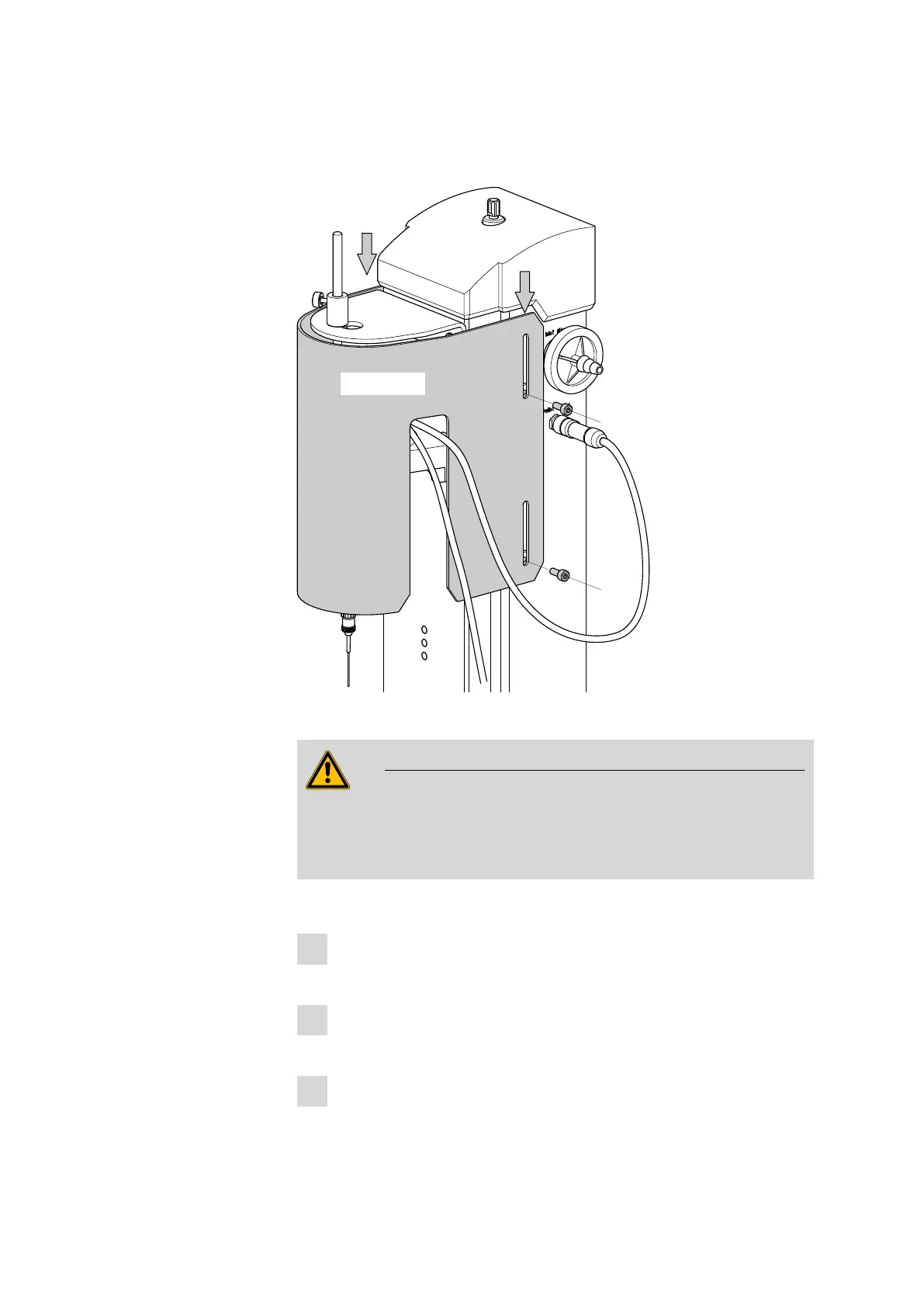

Figure 12 Mounting the safety shield
WARNING
The safety shield must be installed before the 874 Oven Sample Pro-
cessor is used for the first time. The device may not be operated with-
out a safety shield.
Proceed as follows:
1
Undo the hex screws on the sides of the tower with the accompany-
ing hex key.
2
Move the 6.2751.140 safety shield into position, starting from the
top. Refer to the corresponding illustration.
3
Fix the safety shield in place with the hex screws.
