3.5 Mounting the heating tubing
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
16
￭￭￭￭￭￭￭￭
874 Oven Sample Processor
3.5 Mounting the heating tubing
1
2

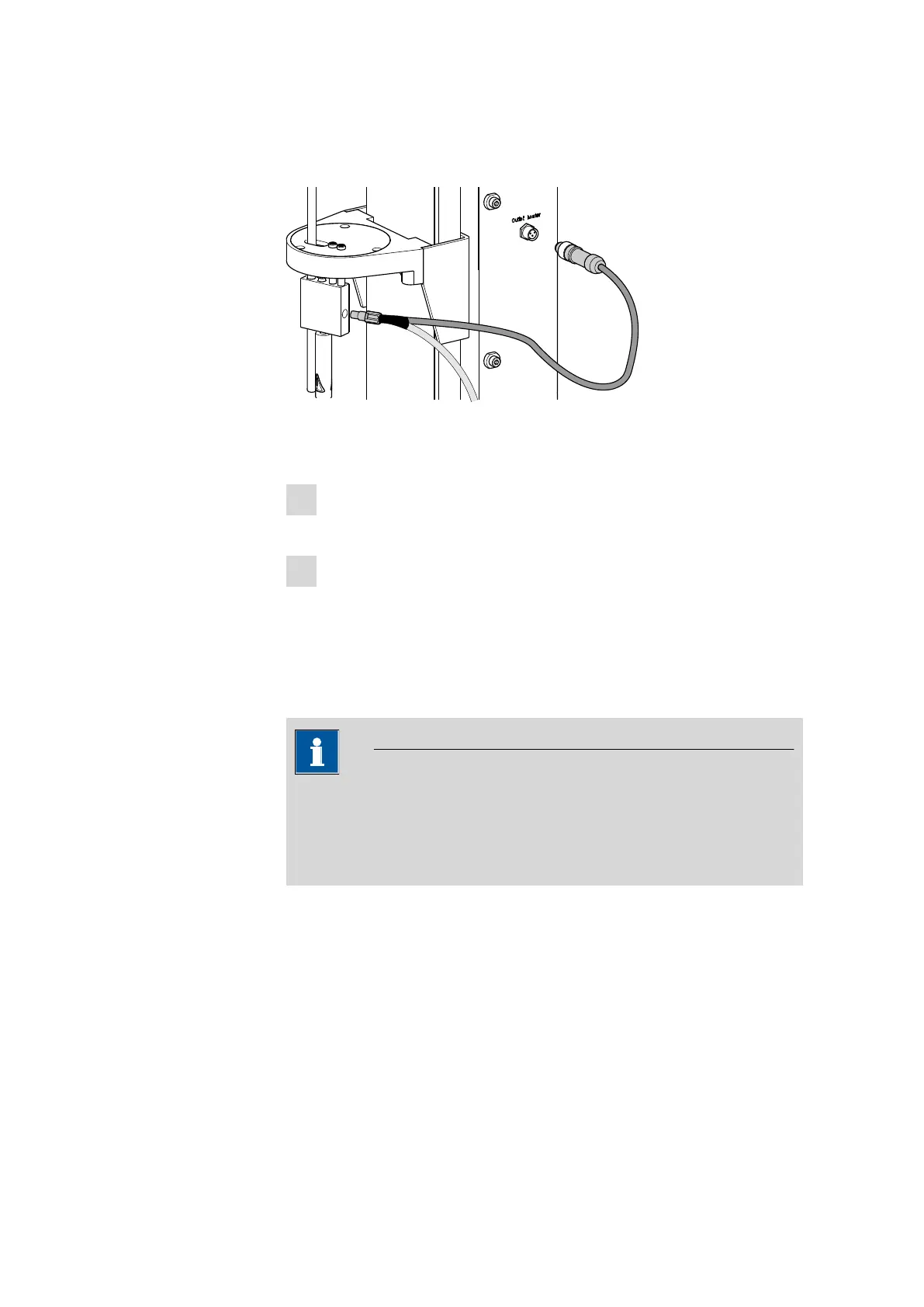

Figure 7 Mounting the heating tubing
Proceed as follows:
1
Screw the M6 connector of the 6.1830.030 heating tubing into
the lateral opening of the distributor on the guide head.
2
Connect the heating tubing cable to the outlet heater connector
on the right-hand side of the tower.
Rotate the plug in such a way that the three contact pins correspond
to the sequence of the corresponding socket openings. Press the
plug towards the socket and rotate the front knurled screw clock-
wise.
NOTICE
The heating jacket of the heating tubing is heated up to approx. 40 to
50 °C as soon as the instrument is switched on. This prevents conden-
sation of moisture in the tubing when it is removed from the sample
and transferred to a KF titration cell with a carrier gas.
