3.10 Mounting the KF titration cell
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
22
￭￭￭￭￭￭￭￭
874 Oven Sample Processor
NOTICE
You can adjust the vertical position of the safety shield at any time
by loosening the screws. Take care to ensure that it is not possible
to reach into the working area of the needles while the instrument
is in operation.

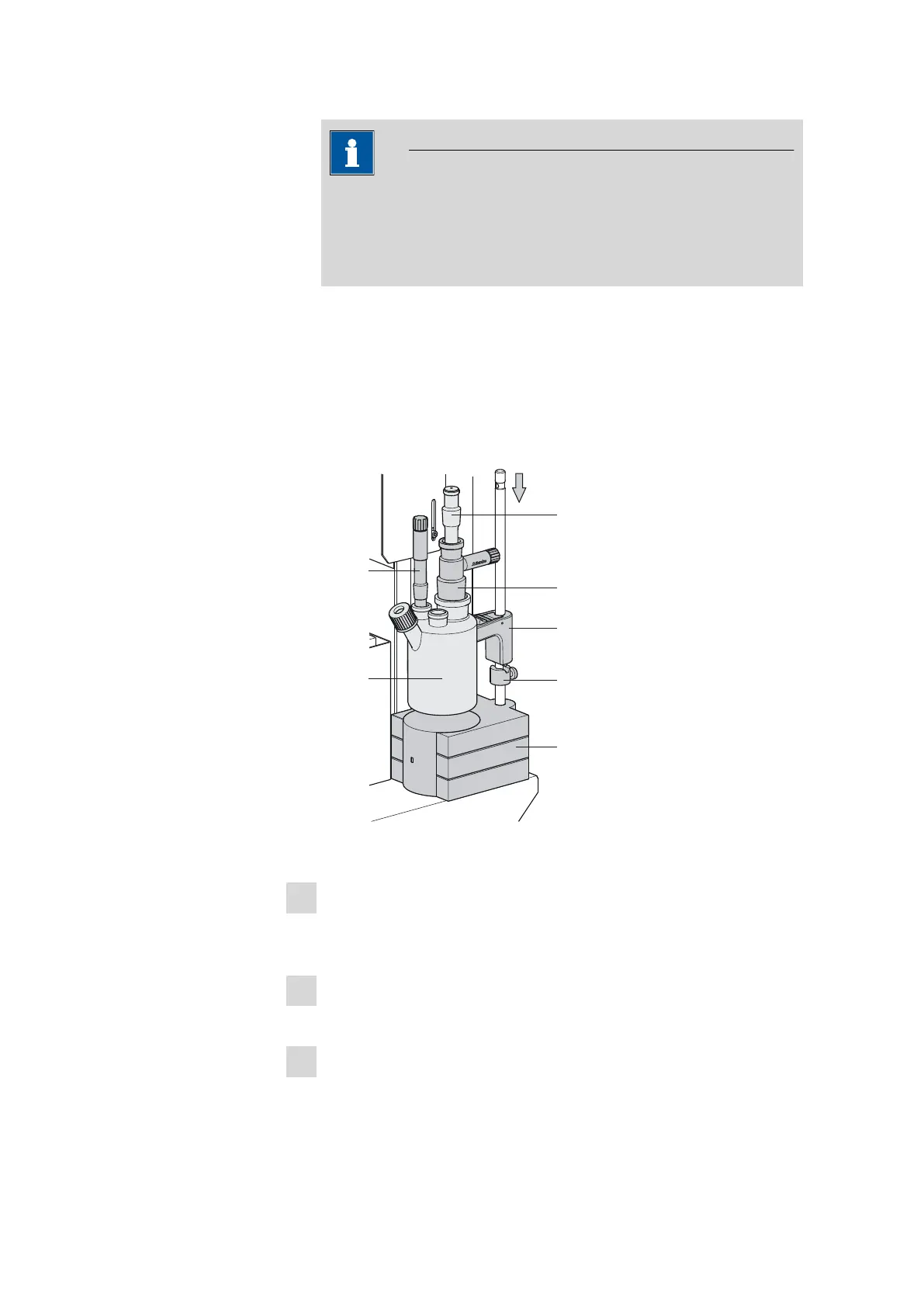

3.10 Mounting the KF titration cell
The following description is provided as an example for the mounting of a
coulometric KF titration cell. The necessary accessory parts are, with the
exception of the 6.2013.010 clamping ring, not included in the scope of
delivery of the 874 Oven Sample Processor.
801 Stirrer
6.2013.010
6.2047.020
6.0345.100
6.1403.030
6.0341.100
6.1464.320
1
2
3
4
5
6
7
Proceed as follows:
1
Place the magnetic stirrer 801 Stirrer from above onto the support
rod at the right-hand side of the tower. Connect the cable to the
coulometer.
2
Screw the 6.2013.010 clamping ring tightly to the support rod,
with the indent facing upward.
3
Fix the 6.2047.020 titration vessel holder to the support rod.
Operate the locking lever of the holder while doing so.
