Metrohm 930 Compact IC Flex - Rear; Figure 2 Rear

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Overview of the instrument
930 Compact IC Flex Oven SeS/PP/Deg (2.930.2560)
￭￭￭￭￭￭￭￭
9
11
High-pressure pump
12
Eluent degasser
13
Peristaltic pump
14
Metrohm CO
2
Suppressor (MCS)
15
Detector chamber
Room for the detector and the adsorption
cartridge for the MCS.
3.2 Rear

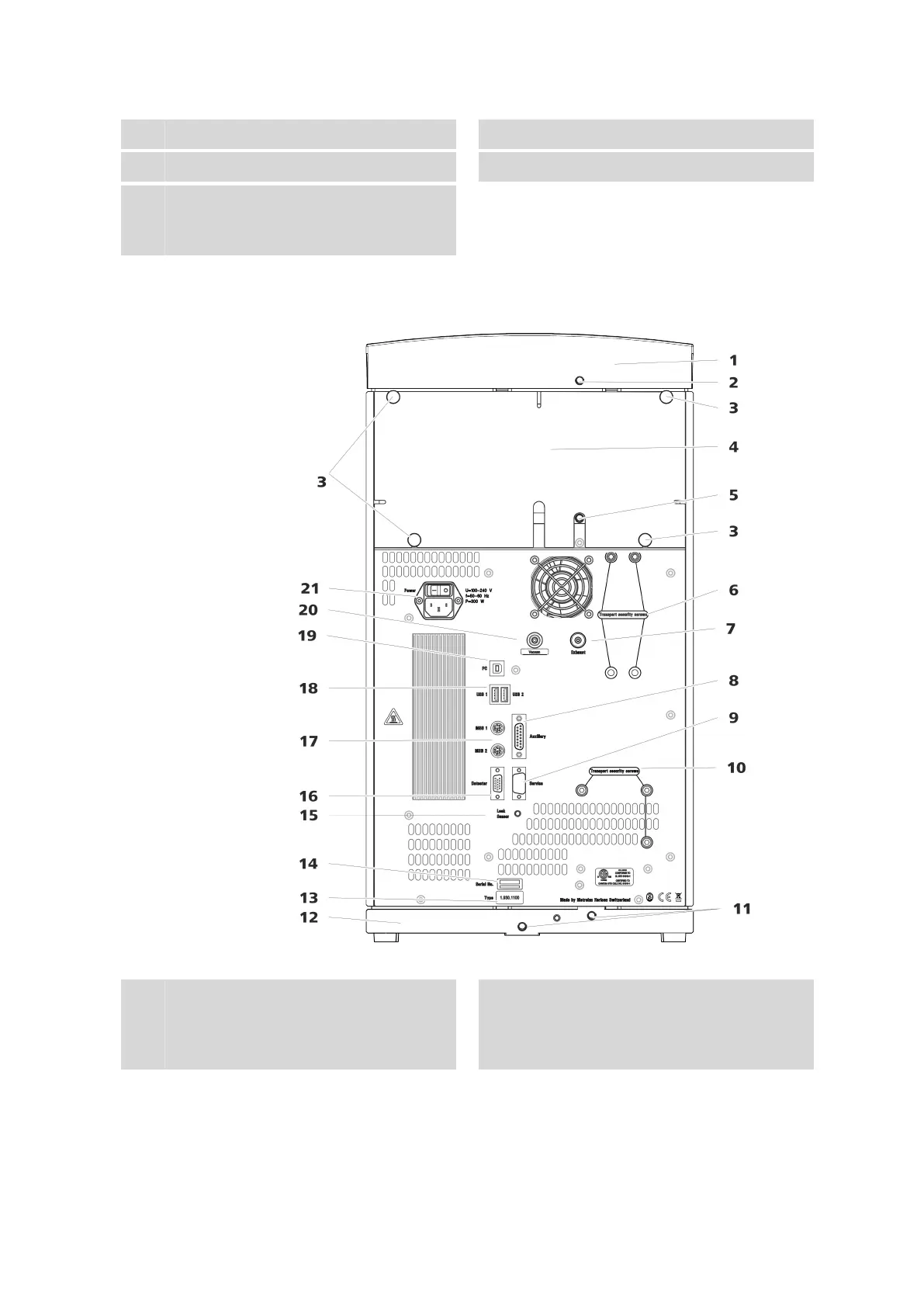

Figure 2 Rear
1
Bottle holder
2
Drainage tubing connection
For connecting the drainage tubing, which
guides escaped fluids away from the bottle
holder.
