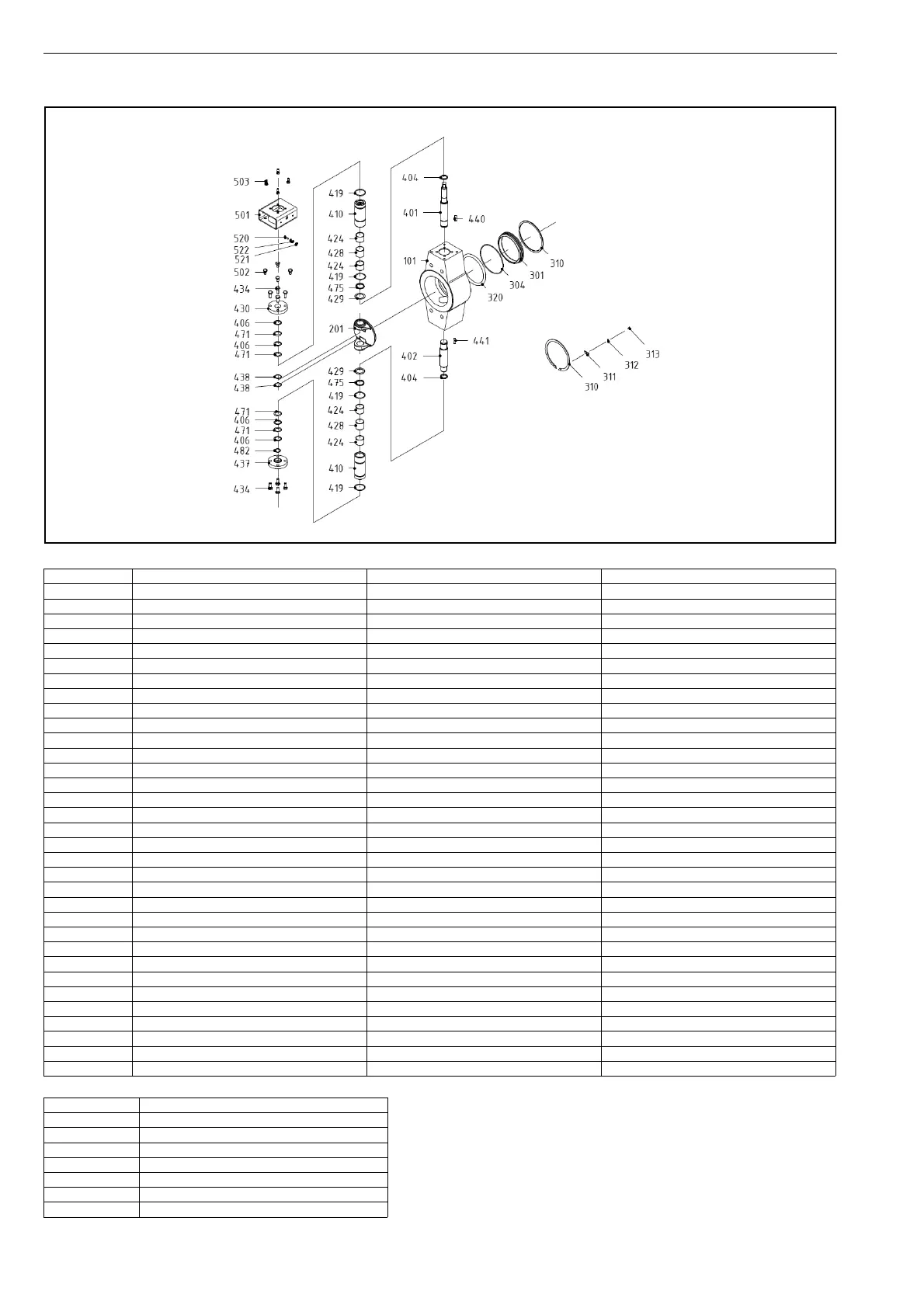

12.3 Exploded view and parts list
Item Naming Materials Spare Set No.
101 body 1.0566 / A516 GR. 60/70* -
201 Disc 1.4313-B -
301 Sealing ring 1.4301 -
304 O-ring FKM 1, 2, 3, 4
310 Retaining ring 1.4571 1, 3
310(A) Retaining ring 1.4301 2, 4
311(A) Clamp type socket 1.4301 2, 4
312(A) Tab disc 1.4301 2, 4
313(A) Hexagon bolt A2-70 2, 4
320 Sealing element FKM 1, 2, 3, 4
401 Shaft 1.4313 -
402 Shaft 1.4313 -
404 Thrust disc DU 1, 2, 5, 6
406 Thrust disc PTFE 1, 2, 5, 7
410 Bearing bush 1.4313 1, 2, 5, 6
419 O-ring FKM 1, 2, 5
424 Bearing bush DU 1, 2, 5, 6
428 Spacer ring 1, 2, 5, 6
429 Shaft seal ring 1, 2, 5
430 Cover 1.4021 -
434 Hexagon bolt A2-70 -
437 Cover 1.4021 -
438 O-ring FKM 1, 2
440 Key 1.4313 -
441 Key 1.4313 -
470 O-ring FKM -
471 O-ring FKM 1, 2, 5, 7
475 Seal PTFE 1, 2, 5
476 Thrust disc PTFE -
501 Bridge 1.0037-Zn -
502 Hexagon bolt A2-70 -
503 Hexagon bolt A2-70 -
600 Quarter turn actuator --- -
Spare Set No. Naming
1 Spare parts set "complete"
2 Spare parts set "complete(A)"
3 Spare parts set "seal"
4 Spare parts set "seal(A)"
5 Spare parts set "complete mounting"
6 Spare parts set "mounting"
7 Spare parts set "shaft seals"
Information:
Special design version of clamp type socket
Exploded view
