14 2 BAR 70 en
8 Troubleshooting
The on/off (butterfly) valve does not close seal-tight
□ Never close the on/off (butterfly) valve by exerting
excess force. This leads to the risk of irreparable damage.
□ Test whether the energy supply is connected.
□ Test whether the “closed” position of the actuator and
the “closed” position of the on/off disc are in alignment.
□ Check the torques of the BAR valve on the basis of the
following table. (see Table 13)
□ Check the sealing surface of the on/off disc and the seal-
ing elements for possible damage. Dismantle the on/off
(butterfly) valve. Test whether any foreign objects are
present between the on/off disc and the sealing ele-
ments. Remove the foreign objects or deposits, if neces-
sary.
□ Replace damaged parts, if necessary.
For disassembly, please read the Maintenance section of
the Appendix.
There is escape of fluid or gas...
...at high-performance valves with O-ring seal
Test whether the O-rings are damaged at the bearing bush.
Replace the O-rings of the bearing bushing as well as the O-
rings and support rings of the shaft seal, and the annular
groove with spring, if necessary. (see Figure 13).
For disassembly, please read the Maintenance section of
the Appendix.

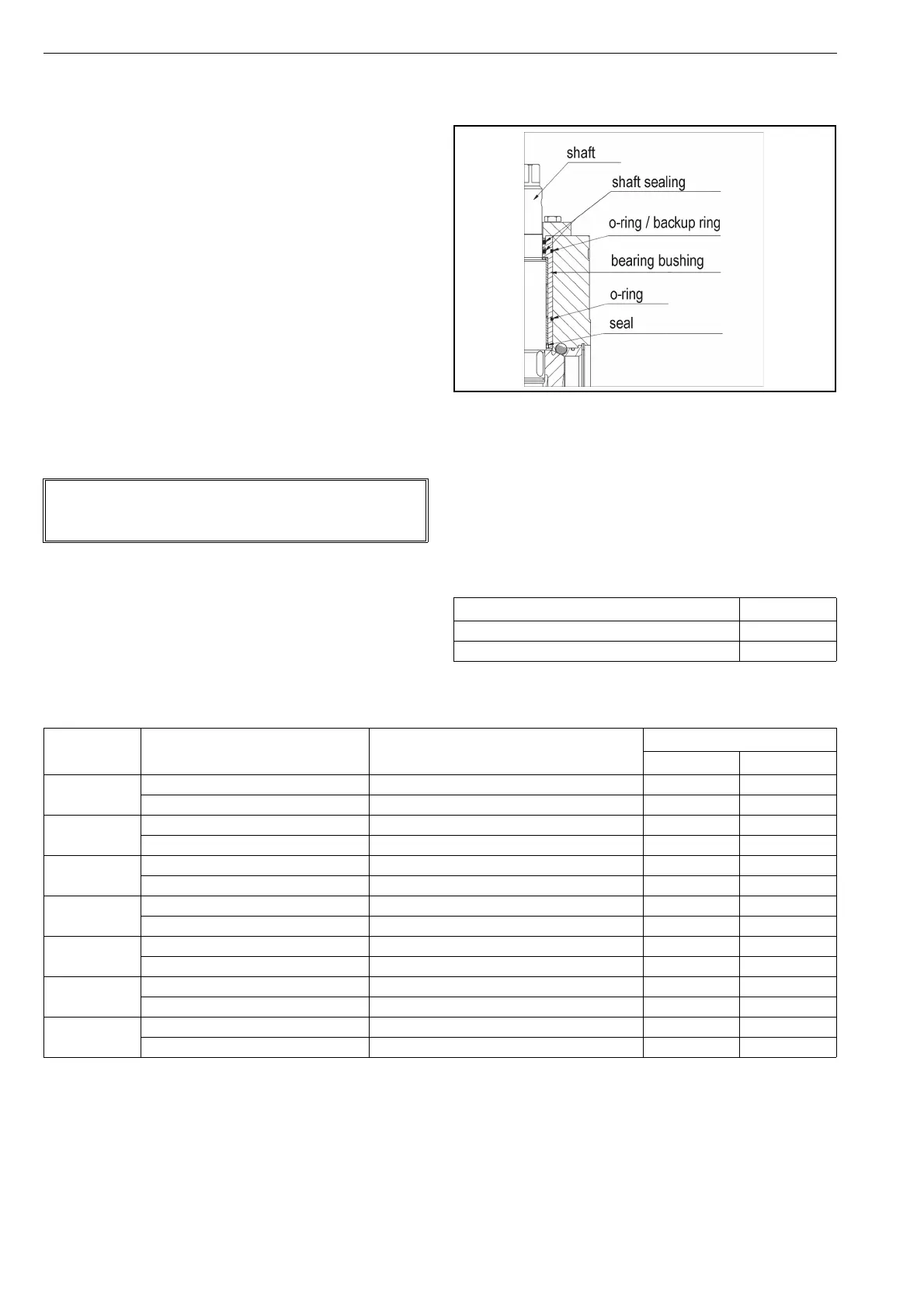

Figure 13
There is escape of fluid or gas at the cover.
Check whether the screws on the cover are firmly tight-
ened. Replace the sealing, if necessary.
For disassembly, please read the Maintenance section of
the Appendix.
Temperature resistance of the soft material sealing ele-
ments
Table 13 Maximum transferable torque of the drive shaft related to the suitable dimensions.
In addition, please refer to the information in the
"Cleaning and Maintenance" chapter in the Mainte-
nance section of the Appendix.
FKM
Minimum temperature -10 °C
Minimum temperature +60 °C
DN Drive shaft dimensions [mm]
Maximum
transmissible torque [Nm]
Drive
F1/F F1/A
80 / 3"
17 250 30 30
----
100 / 4"
17 250 30 30
----
150 / 6"
17 250 30 30
22 500 60 60
200 / 8"
22 500 60 60
27 1000 120 120
250 / 10"
22 500 60 60
27 1000 120 120
300 / 12"
27 1000 120 120
36 2000 250 250
400 / 16"
36 2000 250 250
46 4000 500 500
