INSTRUCTIONSBEFOREUSINGTHEVEHICLE

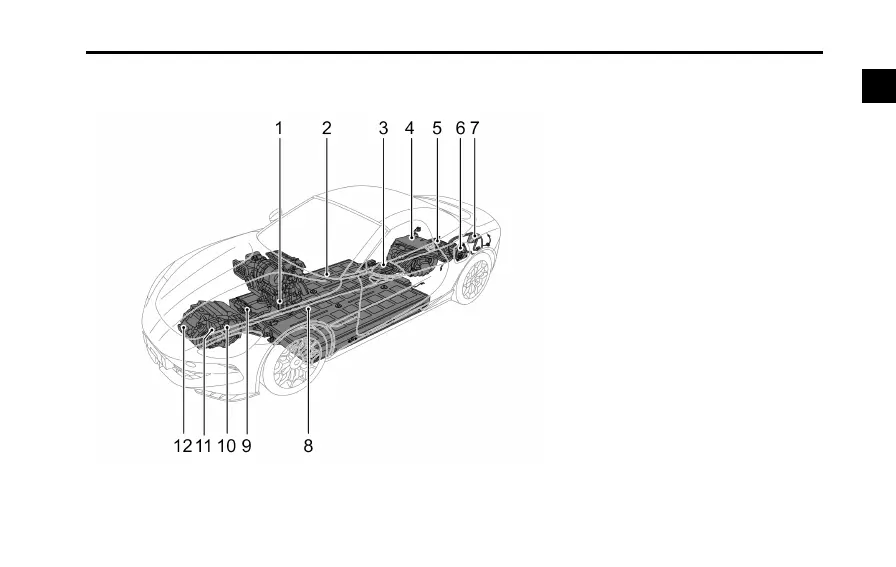

Thehighvoltagesystemcomponentlayoutisshownbelow:

1Electricheater

2High-voltageBatteryPack

3PowerDistributionUnit(PDU)

4RearElectricDriveUnit

5CombinedChargingUnit(CCU)

6ChargingPort

7ElectricVehicleCommunication

Controller

8High-voltageHarness

9ESSPTC

10ManualServiceDisconnector

11ElectricA/CCompressor

12FrontElectricDriveUnit
