MCS-MAGNUM-BMS REVISION 3.1
25

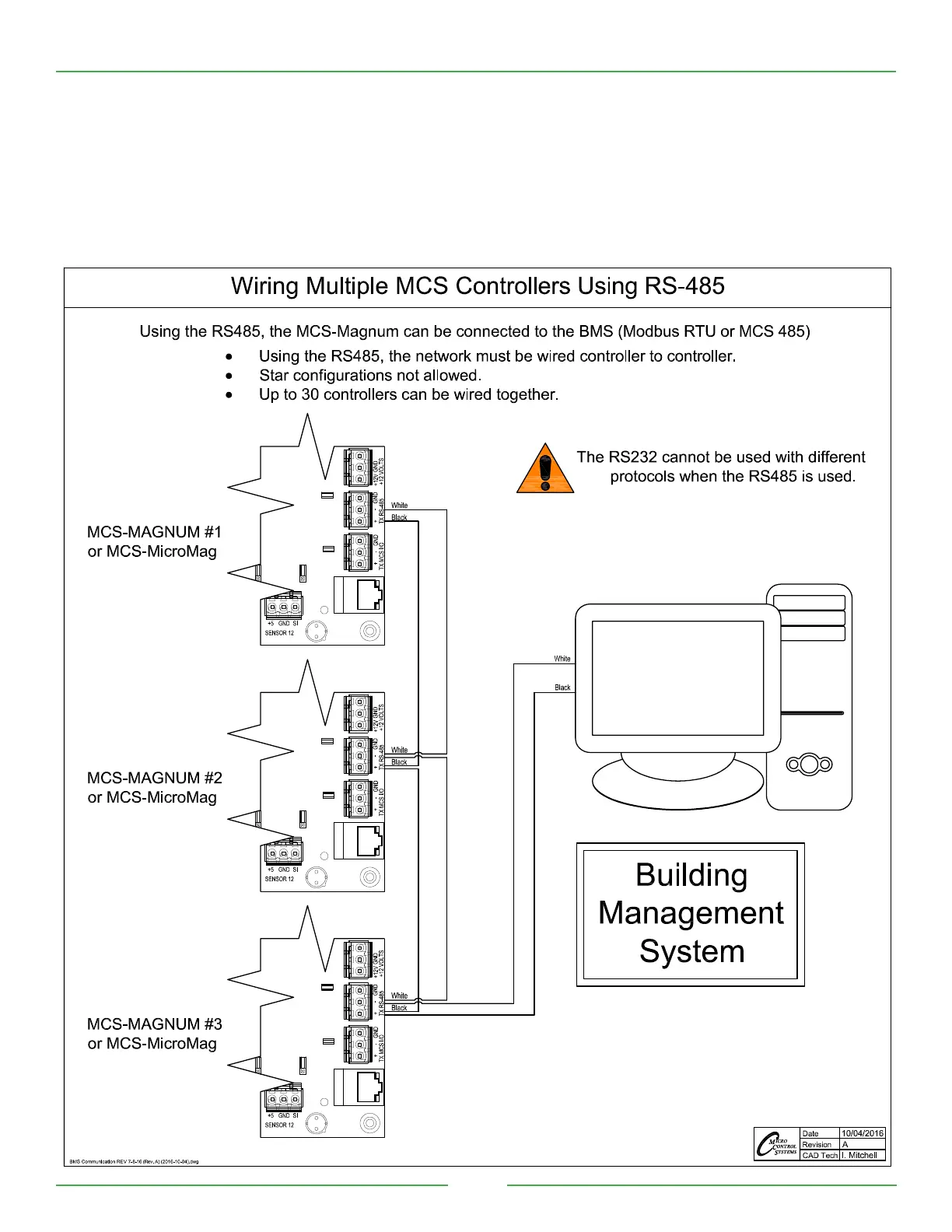

2.3. Wiring Multiple MCS Controllers
Using the RS485, the network must be wired controller to controller
Star congurations not allowed
Up to 30 controllers can be wired together
