MCS-BMS-GATEWAY Startup Guide REVISION 4.5
38
3.3.5 BACnet MS/TP: Setting the Serial Baud Rate for BMS Network
DIP Switches B0 – B3 can be used to set the serial baud rate to match the baud rate required by the Building
Management System for BACnet MS/TP.
• The baud rate on MCS-BMS-GATEWAY-NL for Metasys N2 is set for 9600. DIP Switches B0 –
B3 are disabled for Metasys N2.
B0
B1
B2
B3
Off
On

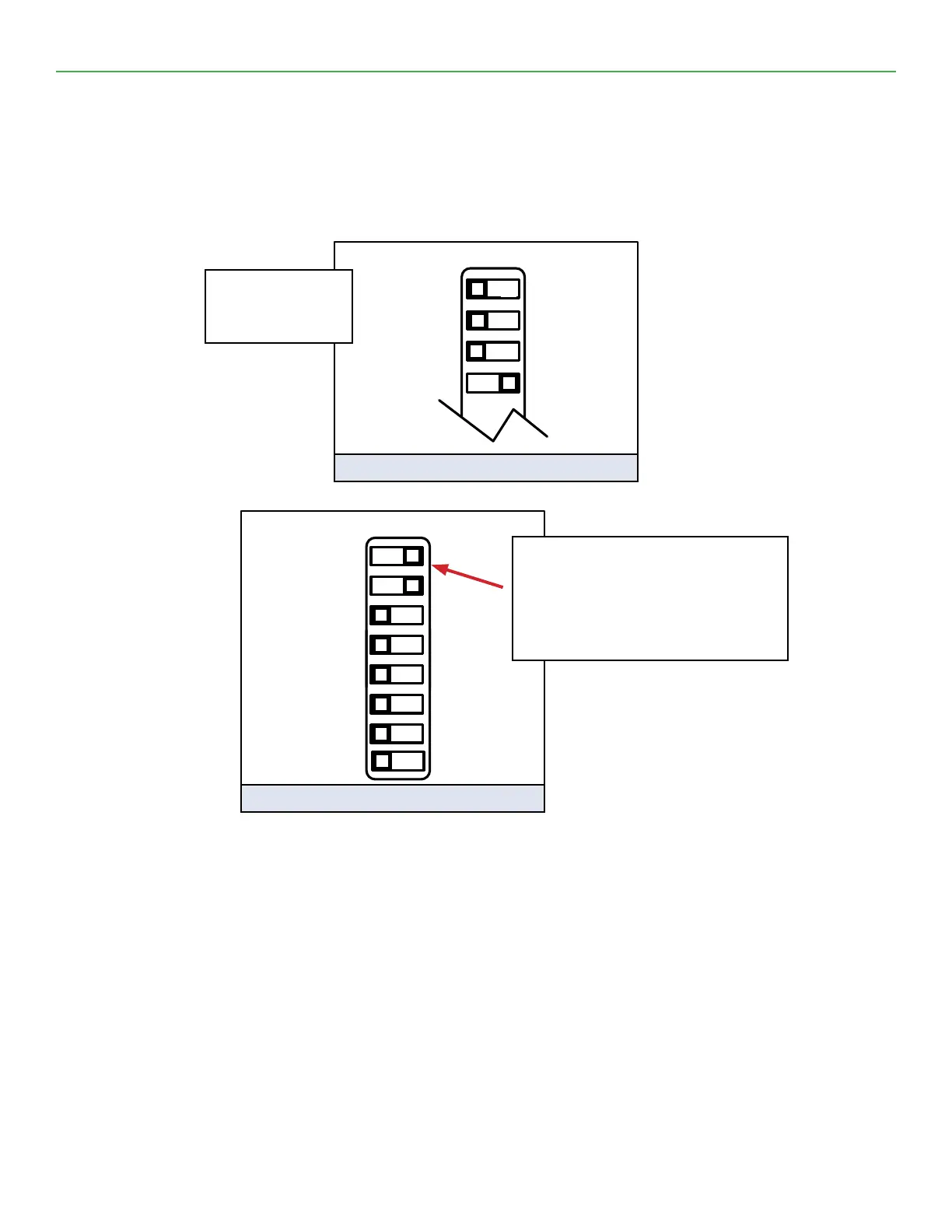

Figure 5: Baud Rate DIP Switches
Fig 5
Shows setting for
19200 Baud Rate
A0
A1
A2
A3
A4
A5
A6
A7
OffOn
Figure 4: MAC Address DIP Switches
Fig 4
Shows setting for 03 BMS Address
as found in A.1 appendix
in the rear of this manual
