Figure 10-2. Modular Connector - RJ-45
Table 10-4. Modular Connector Orientaons
RJ-45 Jack (at ICD Tool) RJ-45* Connector (at Target)
* For information about connecting to an RJ-11 at the target, see Connecting an RJ-11 Type Cable to an RJ-45 Jack on the
Debugger.

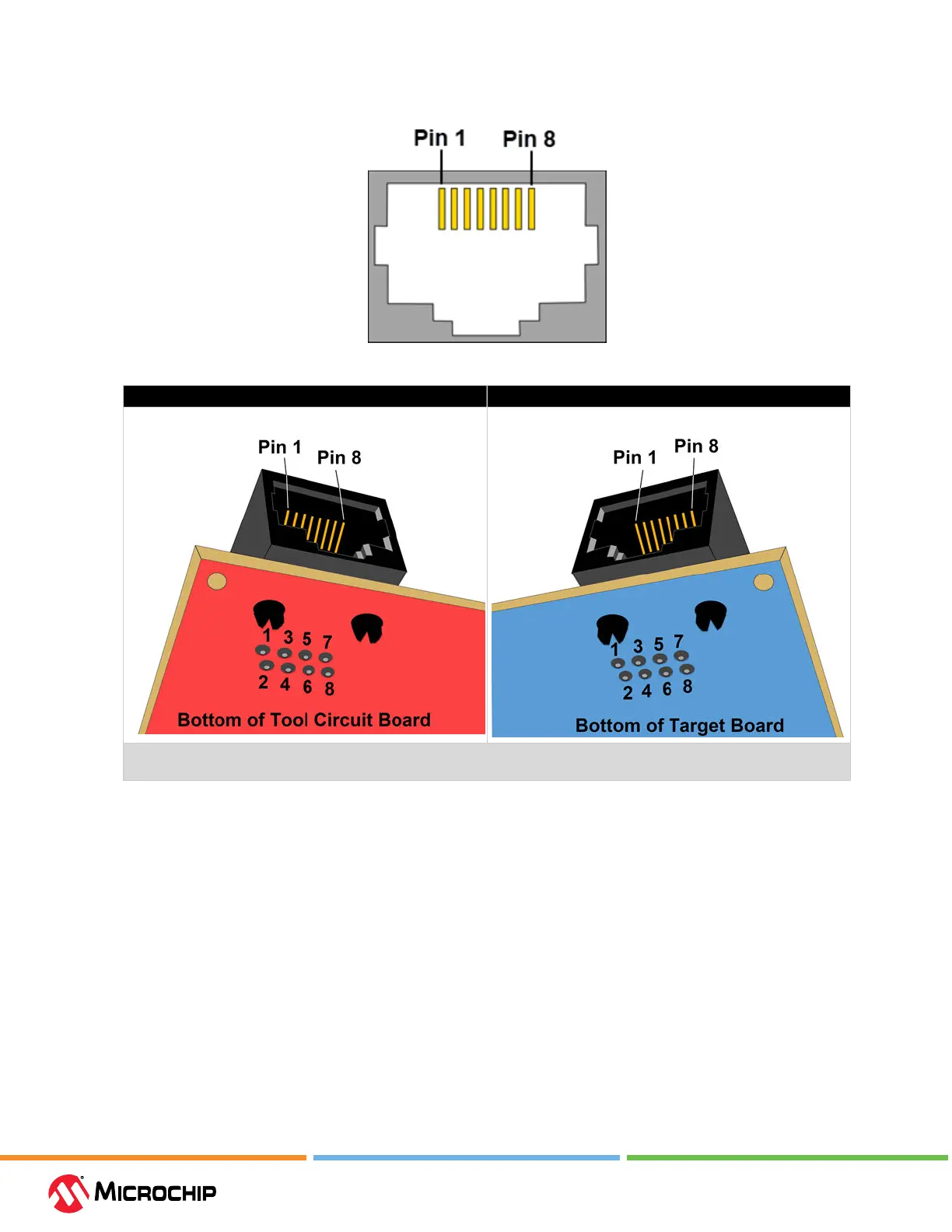

Pin numbering can be seen in the following diagram. Although the connectors are oriented
dierently on the tool and on the target, pin 1 is always pin 1 with relation to the connector.
