Microchip Technology MPLAB ICD 5 User Manual

Hardware Specicaon
User Guide
© 2023 Microchip Technology Inc. and its subsidiaries
DS-50003529B - 88

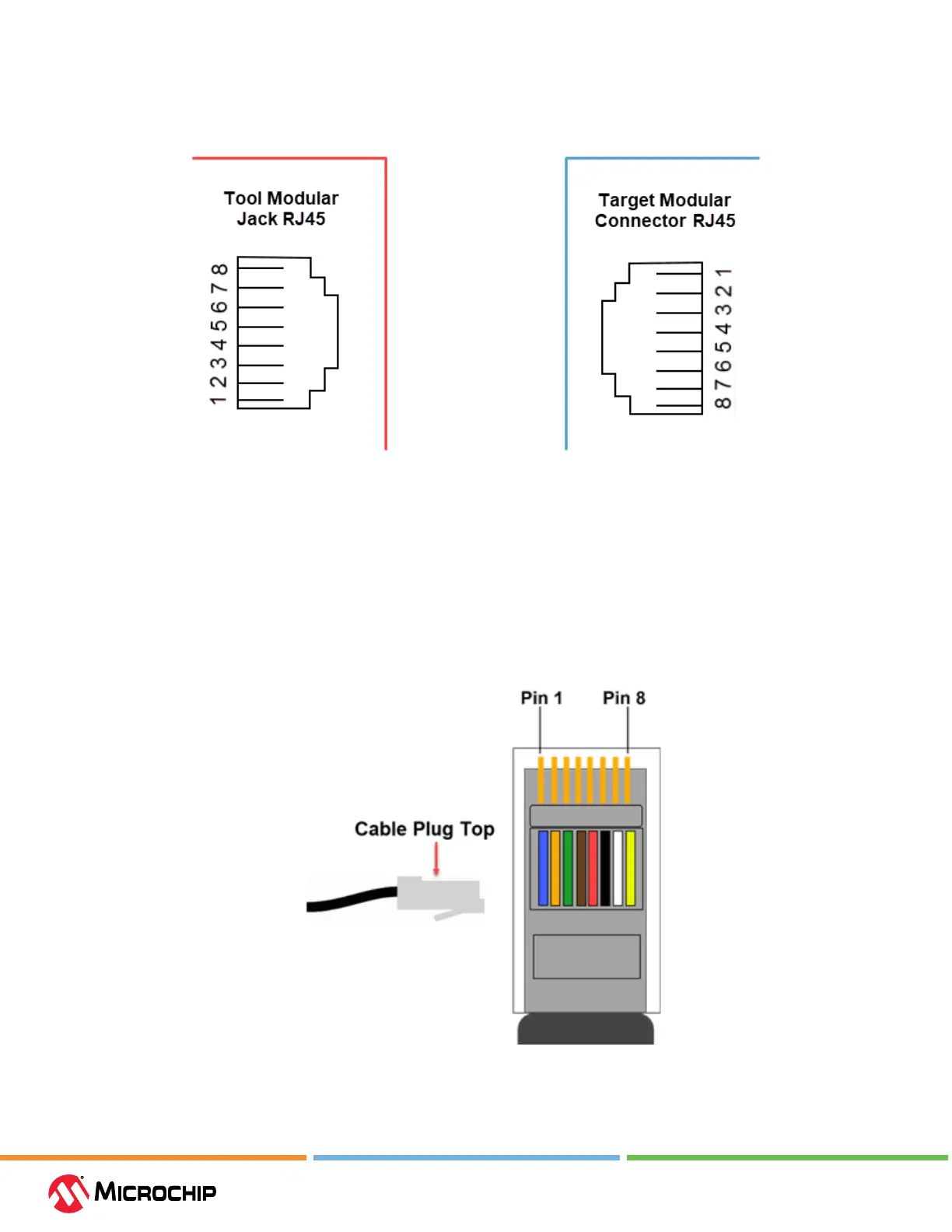

Figure 10-3. Modular Connectors
10.5.2 Modular Cable - RJ-45
The ICD Tool uses an RJ-45 modular connector and cable to communicate with the target.
The modular cable plug pins are always numbered in the same order regardless of the plug
orientation.
Figure 10-4. Modular (RJ-45) Cable Transparent Plug
The cable is reverse wiring based on the plugs view (see gure below.)
