Appendix C: Serial Port Extension

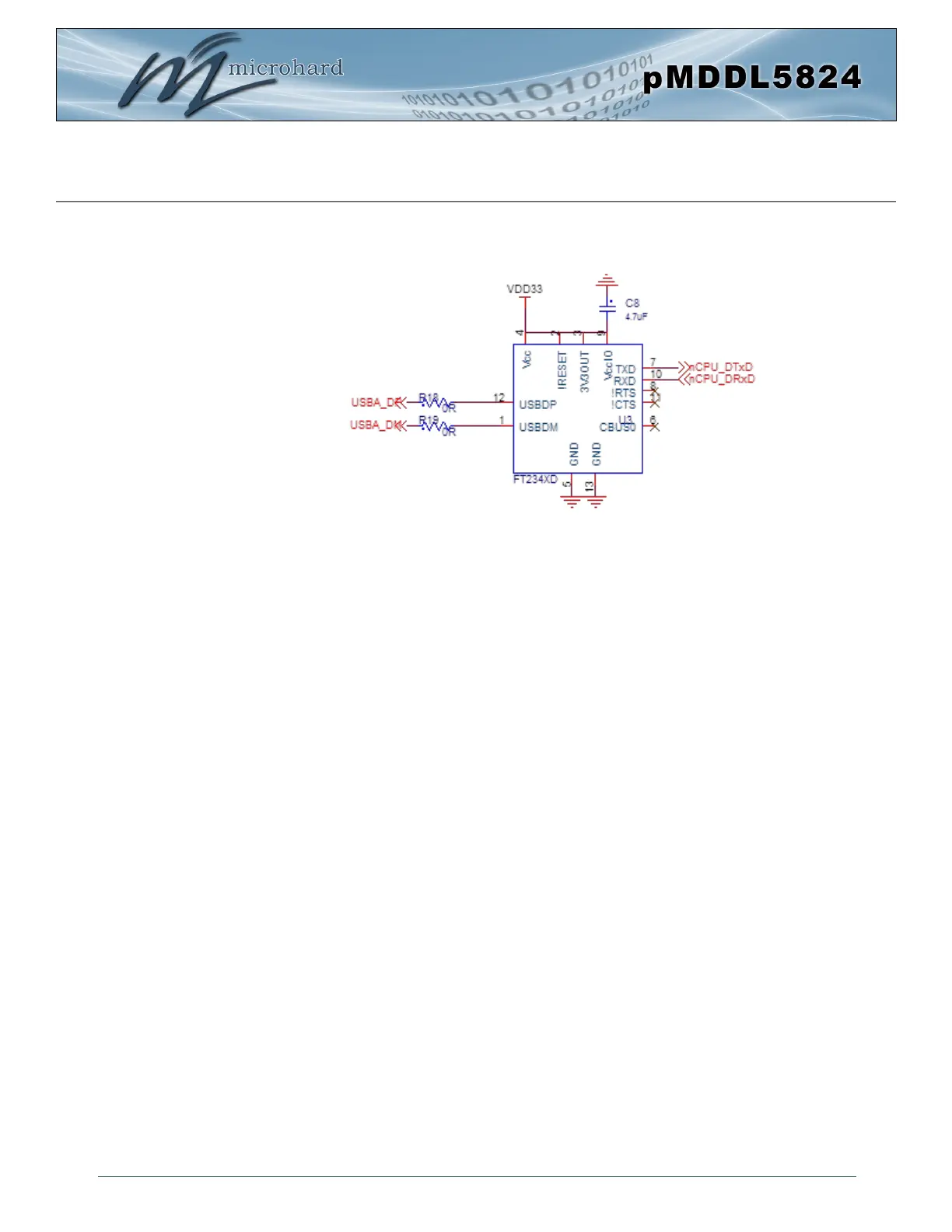

The pMDDL5824 can support a second serial port by utilizing a FT234XD USB to serial UART interfaced to
the USB lines of the pMDDL5824. The sample circuit below shows how this is done.
Drawing App-D: FTDI USB to Basic UART
