3.0 Hardware Features
3.2 pMDDL5824 Development Board / Enclosed
The pMDDL5824 Motherboard/Development board provides a platform in which to test and evaluate the
operation of the pMDDL5824 without the need to design a custom interface PCB right from the start. The
pMDDL5824 motherboard to be plugged in and provides standard interfaces/indicators for:
- Ethernet (RJ45 x2)
- RS232/485 Serial Port
- USB Port (Type A)
- USB Port (Micro-AB)
- Power (9-30 VDC)
- CPU Status LED
- Tx/Rx LED’s
- RSSI (x3) LED’s
- Config Button (Reset/Recovery Operations)

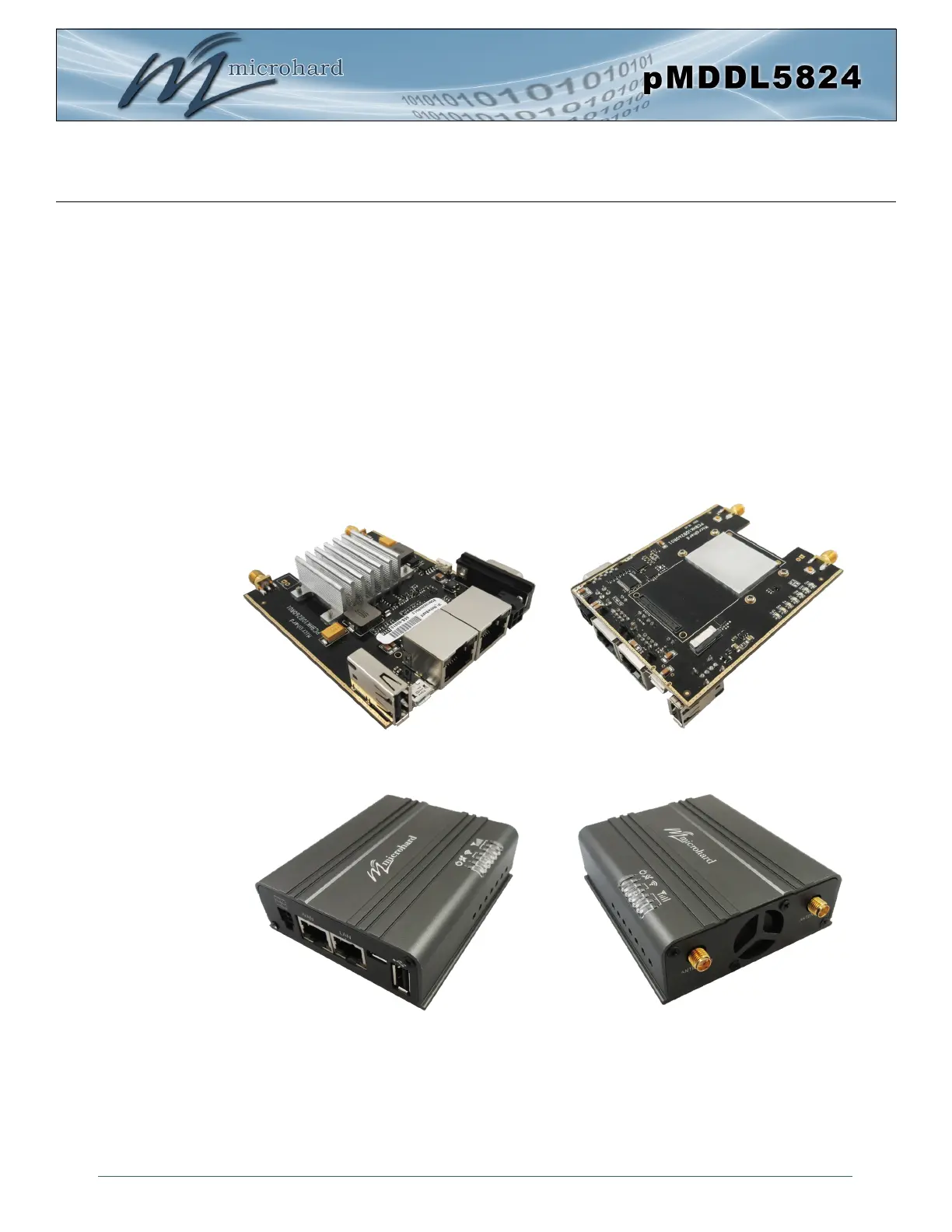

Image 3-3: pMDDL5824 Development Board / Enclosed
