© Microhard 35
4.0 Configuration
4.1 System
The main category tabs located at the top of the navigation bar separate the configuration of the
pMDDL5824 into different groups based on function. The System Tab contains the following submenus:
• Summary - Status summary of entire radio including network settings,
version information, and radio connection status.
• Settings - Host Name, System Log Settings, System Time/Date.
• Services - Enable/Disable and configure port numbers for SSH, Telnet, HTTP
and HTTPS services.
• Maintenance - Remote firmware Upgrades, reset to defaults, configuration backup
and restore.
• Reboot - Remotely reboot the system.
4.1.1 System > Summary
The System Summary screen is displayed immediately after initial login, showing a summary and status of
all the functions of the pMDDL5824 in a single display. This information includes System Status, LAN/WAN
network information, version info, Radio Status etc.

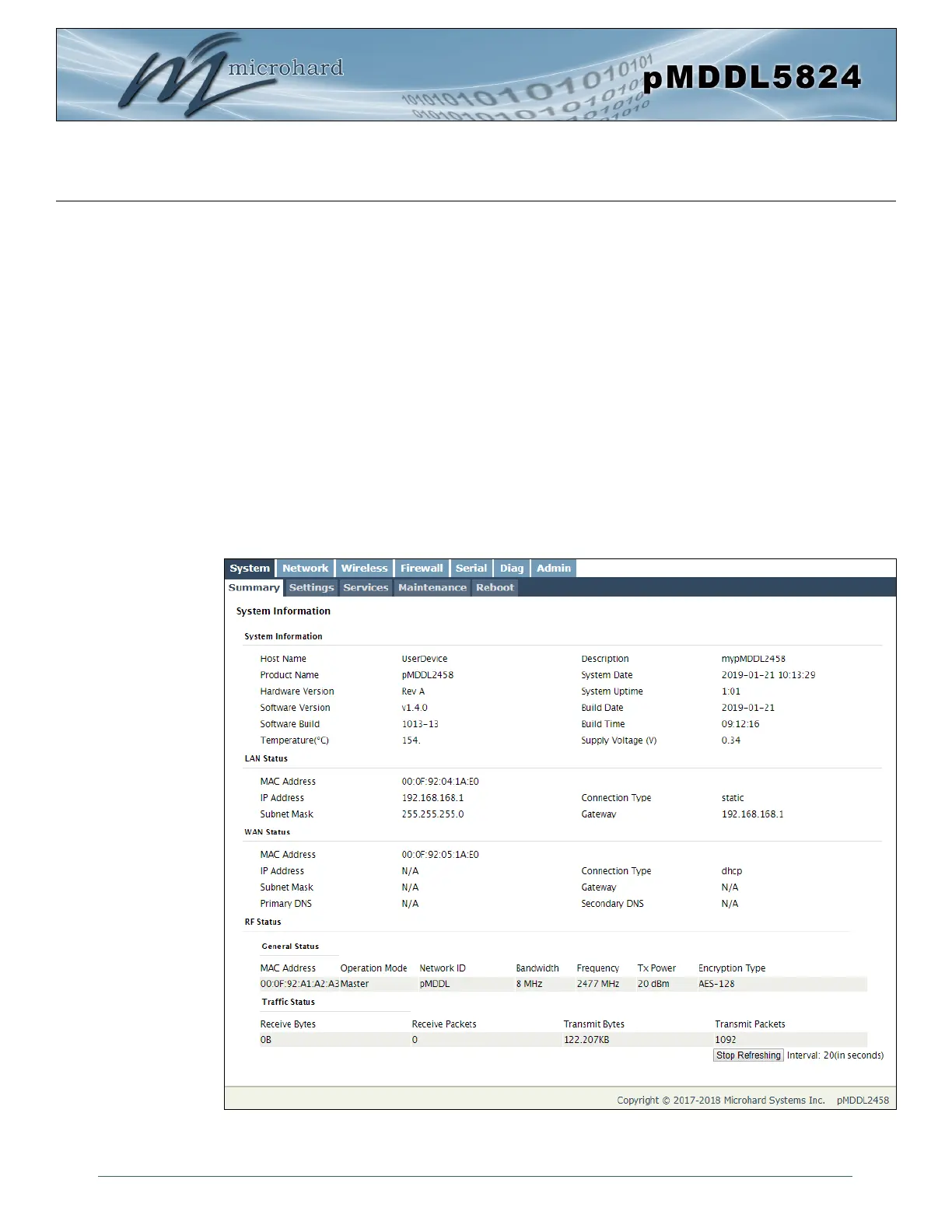

Image 4-1-1: System Summary Window
