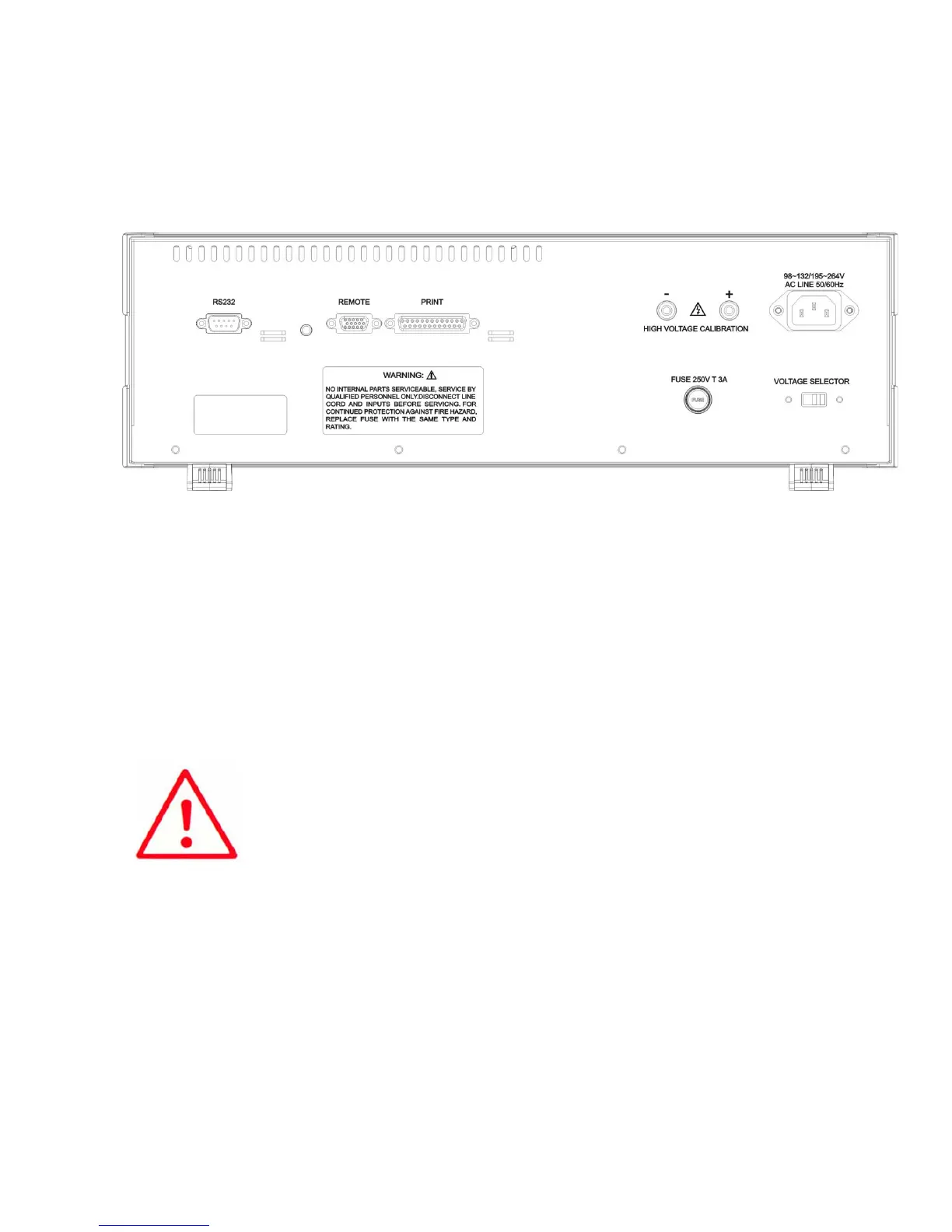

2.4.2 Rear Panel
128 model:
(1) Serial port (RS-232 Port)
(2) Remote control port (Remote Port)
(3) Printer Port
(4) High voltage calibration output connector
(5) AC power input (230/115 VAC)
(6) 115/230V switch
(7) Fuse holder 250V/3A
(8) Audio output socket
Note:
1. Please confirm whether the AC input voltage setting is the same as the
voltage used.
2. The input power must be grounded when using the machine.
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
