Microtest 8751 User Manual

7
2.4 Front and Rear Panel Displays

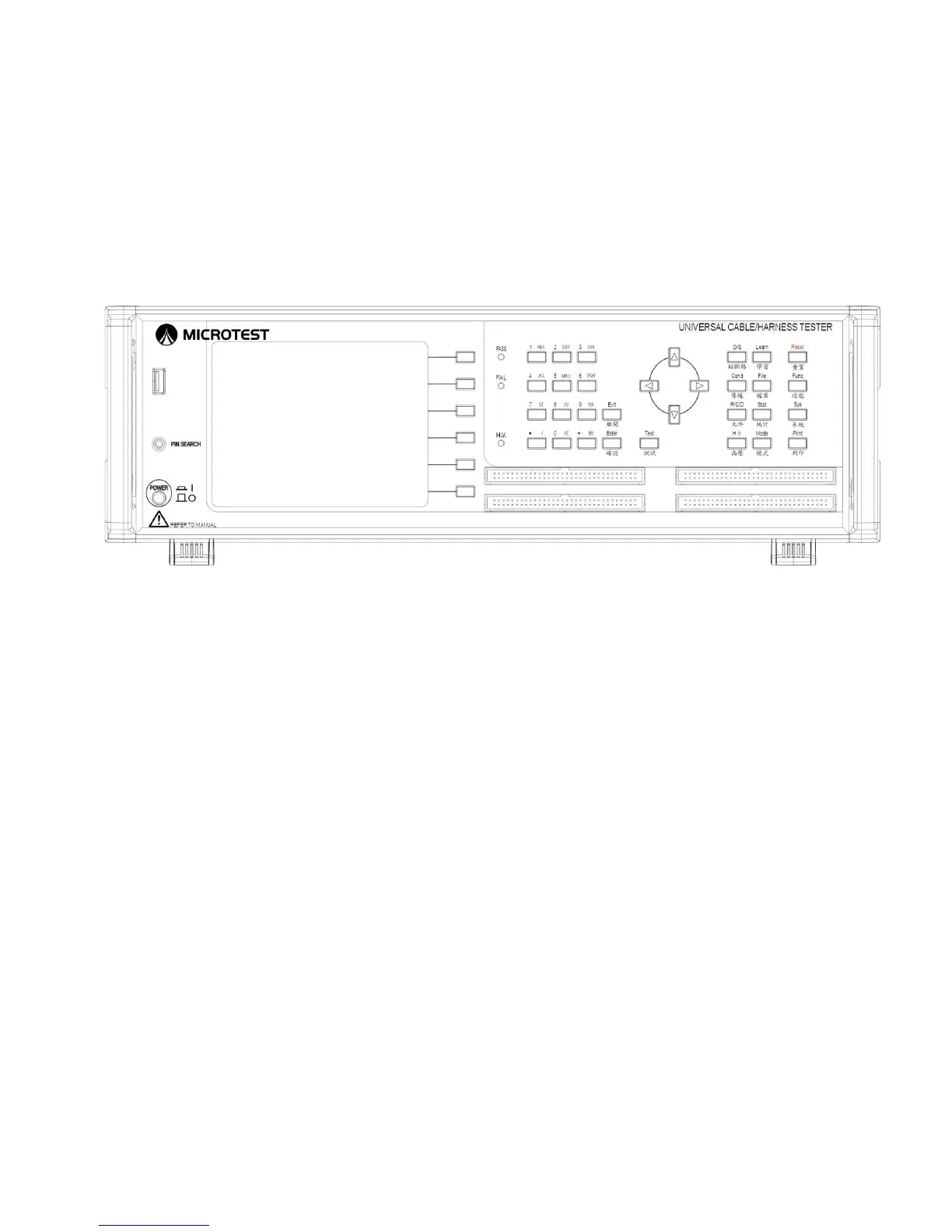

2.4.1 Front Panel
64 and 128 models:
(1) LCD display
(2) S1~S6 operation auxiliary buttons (Soft Key)
(3) PASS & FAIL & HIPOT LED
(4) Control button (Edit Key) group
(5) Test shortcut button group
(6) System reset (Reset) button
(7) Power switch
(8) Pin Search connector
(9) 128Pin has 2 slots and 256 Pin has 4 slots
(10) Test button [TEST]
(11) System button (Sys Key) group
(12) USB flash drive
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
○
11
○
12

Microtest 8751 Specifications

General

Brand	Microtest
Model	8751
Category	Cable Tester
Language	English
